6.01 Introduction
A. Parts List Breakdown
The parts list provides a breakdown of all replaceable components.
Item # Qty Description Catalog #
1 1 Logic PCB assembly 9-0134
2 1 Control PCB assembly
9-0135
3 1 Main PCB assembly 9-0137
4 1 Regulator 9-0139
5 1 Solenoid assembly 9-0140
6 1 Pressure Switch 9-0136
7 1 Current Transformer 9-0138
1
3
4
2
5

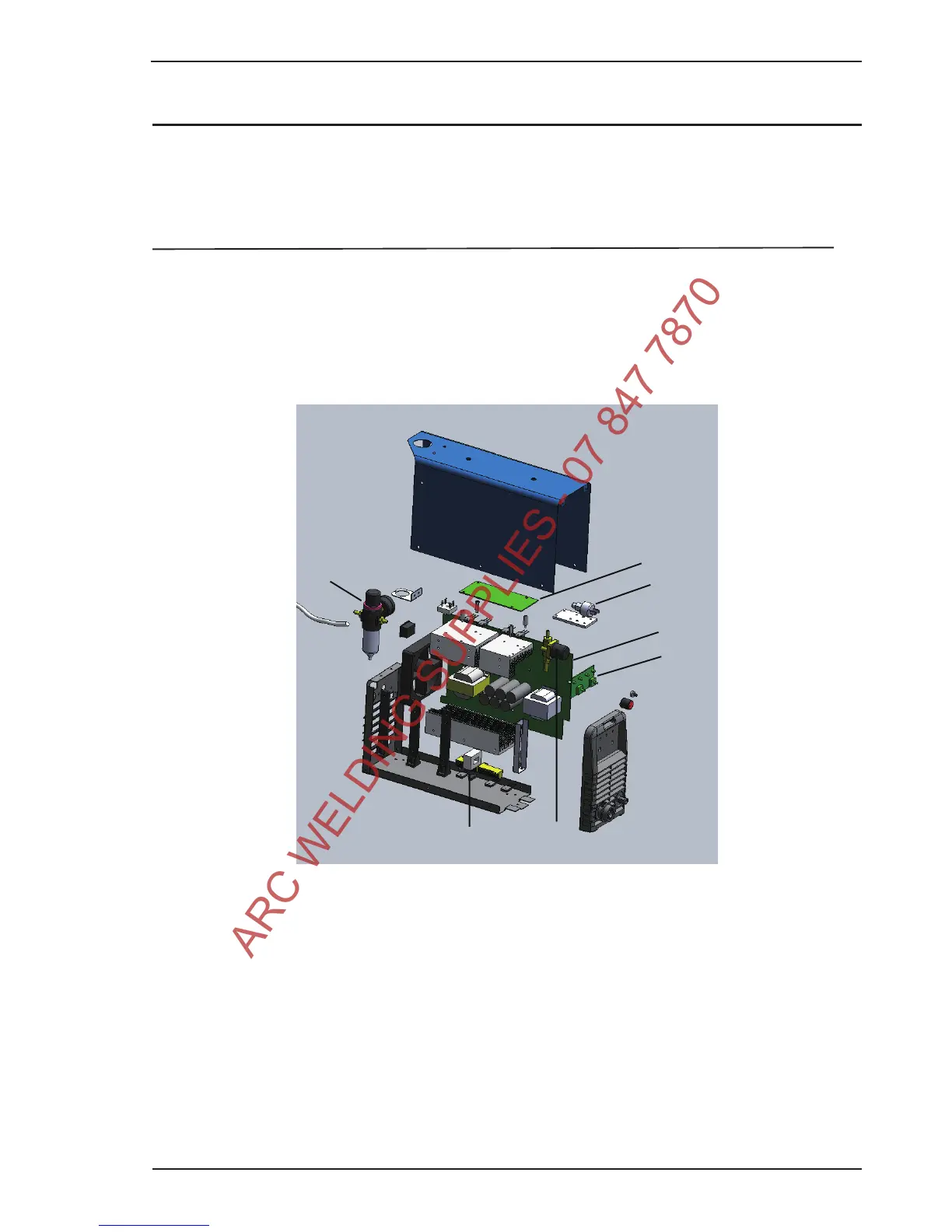

Art # A-09192_AB
6
7
B. Returns
If a product must be returned for service, contact your distributor. Materials returned without proper
authorization will not be accepted.
6.02 Ordering Information
Order replacement parts by catalog number and complete description of the part or assembly, as listed in the
parts list for each type item. Also include the model and serial number of the torch. Address all inquiries to
your authorized distributor.
