Manual 0-2450 29 PARTS LISTS

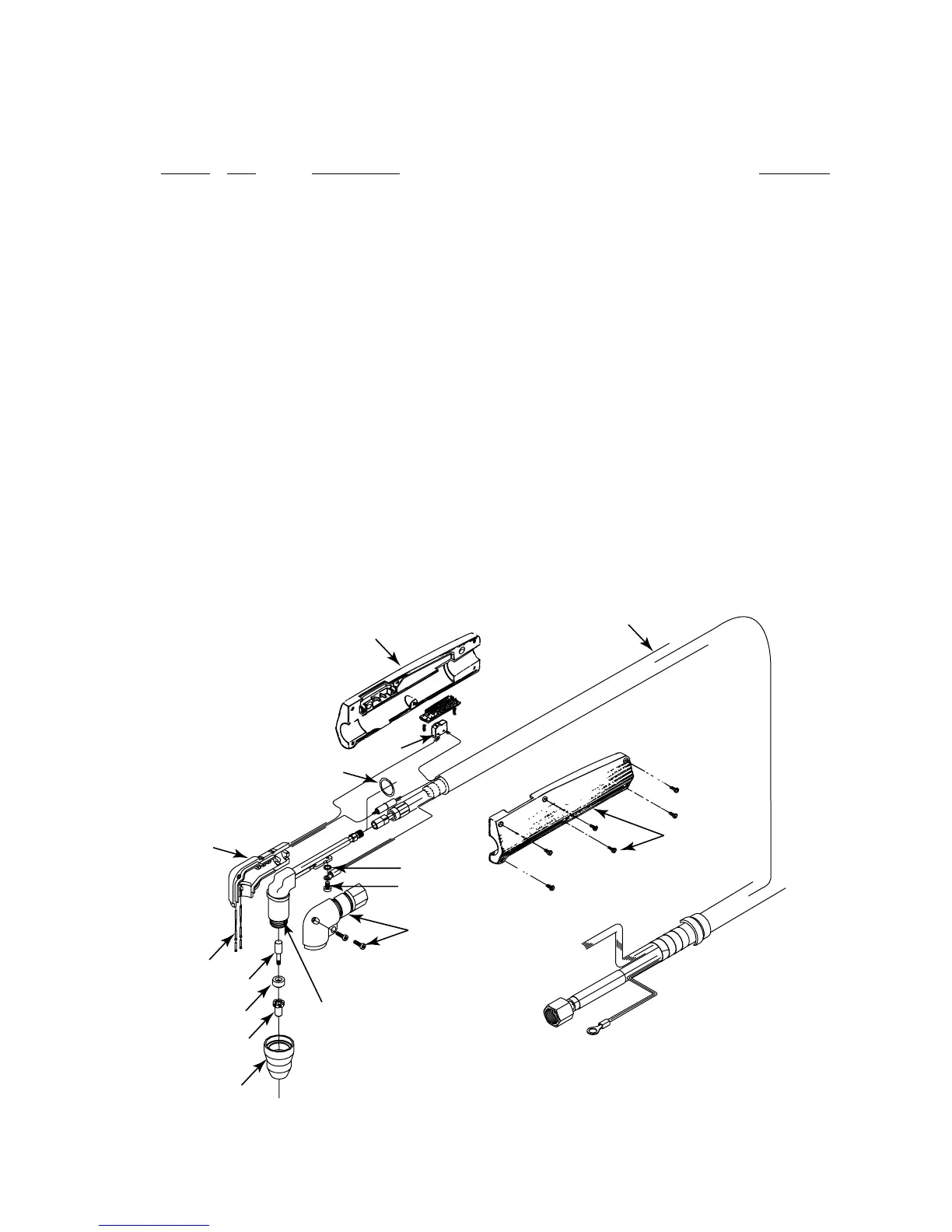

6.05 REPLACEMENT HAND TORCH PARTS
Item # Qty Description Catalog #
1 1 Assembly, PIP (Parts-In-Place) Pins and Wire 9-6290
2 2 O-Ring 8-0533
3 1 Holder, Torch, Split, PCH-26 70° Two Parts w/Screws 9-6259
1 Holder, Torch, Split, PCH-26 90° Two Parts w/Screws 9-6260
4 1 Assembly, Basic Head, PCH-26 70° 9-5807
1 Assembly, Basic Head, PCH-26 90° 9-5808
5 1 Distributor, Gas 9-6507
6 1 Tip, Air, 0.031 inch Orifice, Drag Cutting 9-6501
7 1 Electrode, Air 9-6506
8 1 Shield Cup, Standard 9-6003
1 Shield Cup Attachment, MaximumLife (Used with 9-6003) 9-6503
9 1 Handle, Split, PCH-26 Two Parts w/Screws 9-6291
10 1 Lead Assembly, Composite Cable
12.5 ft (3.8m) Length 4-6071
25 ft (7.6m) Length 4-6072
11 1 Assembly, Torch Switch 9-1058
12 1 #6-32 x 3/16 Phillips Pan Head Screw See Note
13 1 #6 Internal Star Washer See Note
NOTE: Item can be purchased locally.
9
10
2
3
3
1
4
7
5
6
8
12
13
9
11
A-01748
To Next Page
