Engine Maintenance
94
Fuel Stop Solenoid Replacement
1. Disconnect the 20 wire from the reset switch
to prevent the reset switch from tripping.
2. Disconnect the fuel stop solenoid wire
connector and remove the old fuel solenoid.
3. Connect the fuel stop solenoid wire connector
to the new fuel solenoid.
4. Turn the unit on to energize the fuel stop
solenoid.
NOTE: The fuel stop solenoid must be
energized when it is being installed. If it is
not, the plunger and the linkage may not line
up correctly and the fuel solenoid will not
function properly.
5. Place the o-ring in the groove in the end of the
fuel injection pump. Make sure that the o-ring
is positioned correctly during installation to
avoid damage and leaks.
6. Install the new fuel stop solenoid.
7. Turn the unit Off and make sure to connect the
20 wire to the reset switch.
1. O-ring
2. Fuel Stop Solenoid
3. Fuel Injection Pump Groove

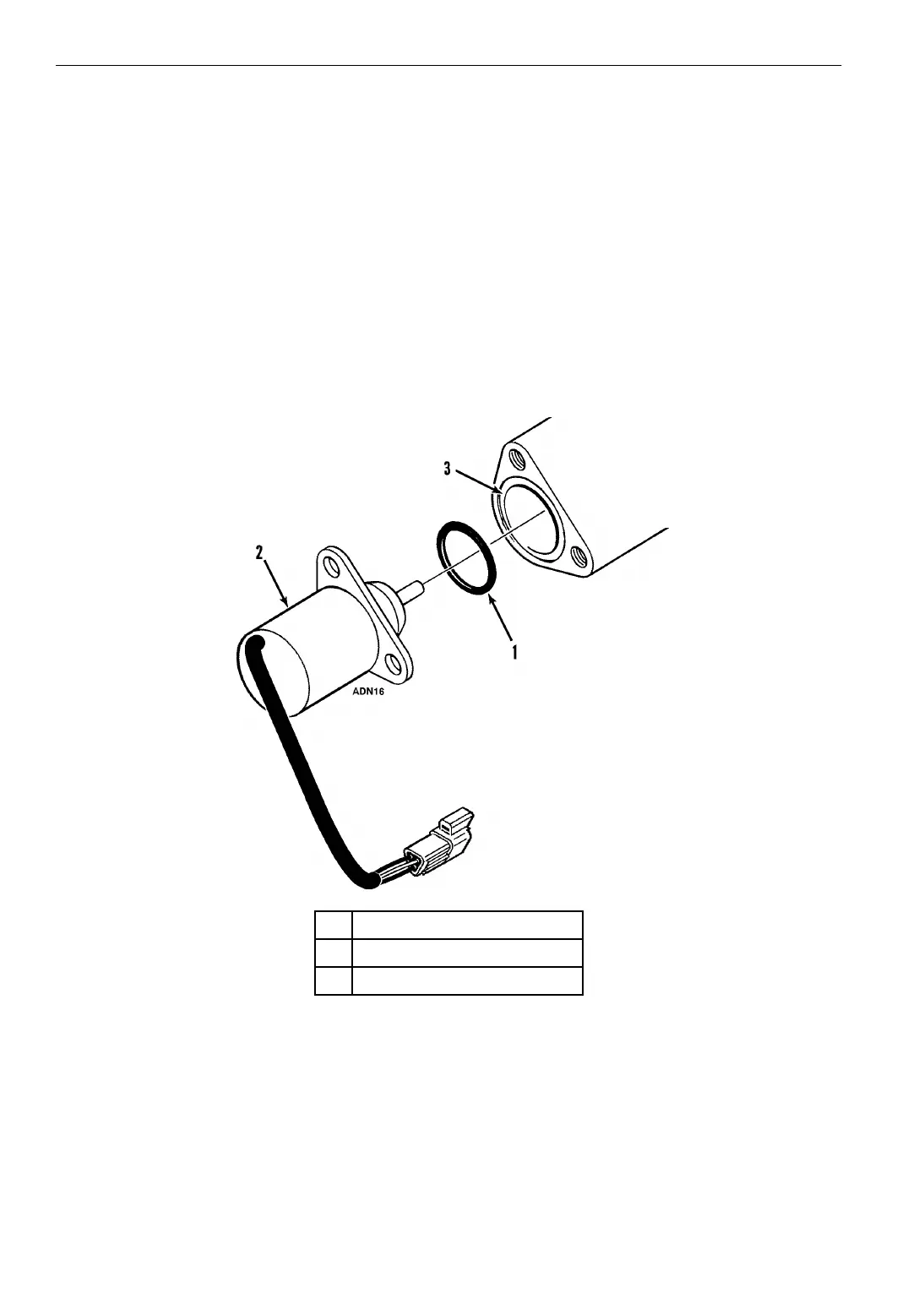

Figure 48: Fuel Stop Solenoid Components
