Installation
The Gauge Head

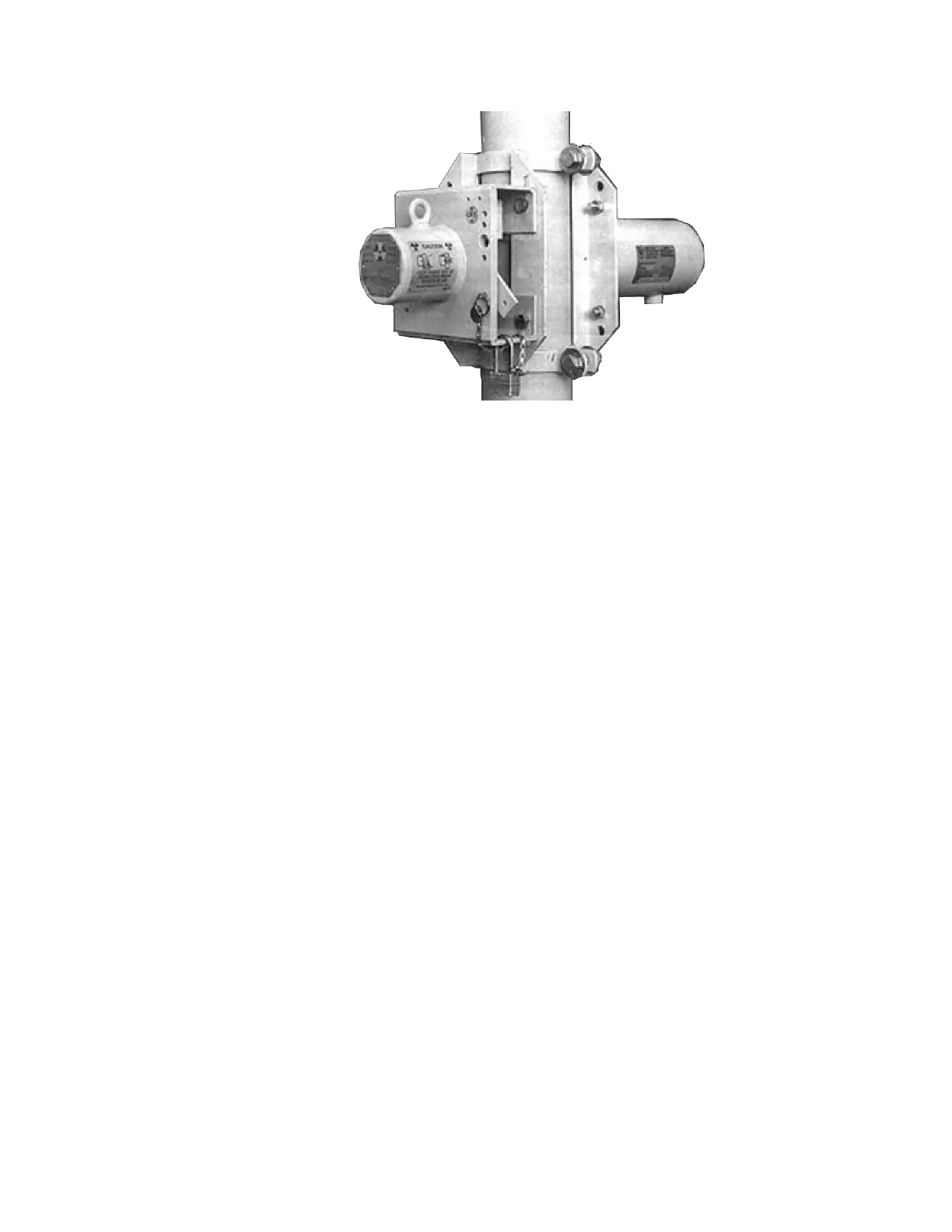

Figure 3–3. Pipe saddle mount
1. Assemble the two halves of the saddle mount onto the process pipe
using the supplied nuts, bolts, and washers. Thread the nuts and bolts
together, but do not tighten them.
2. Adjust the saddle mount halves so the mounting plates are parallel and
even with each other. Then tighten the bolts evenly so the clamp ends
are the same distance apart on both sides of the pipe.
3. Bolt the detector and source housings to the mounting plates on either
side of the pipe saddle.
4. Tighten all bolts securely so the gauge head components cannot shift
positions.
Thermo Fisher Scientific DensityPRO+ Installation Guide 3-13
