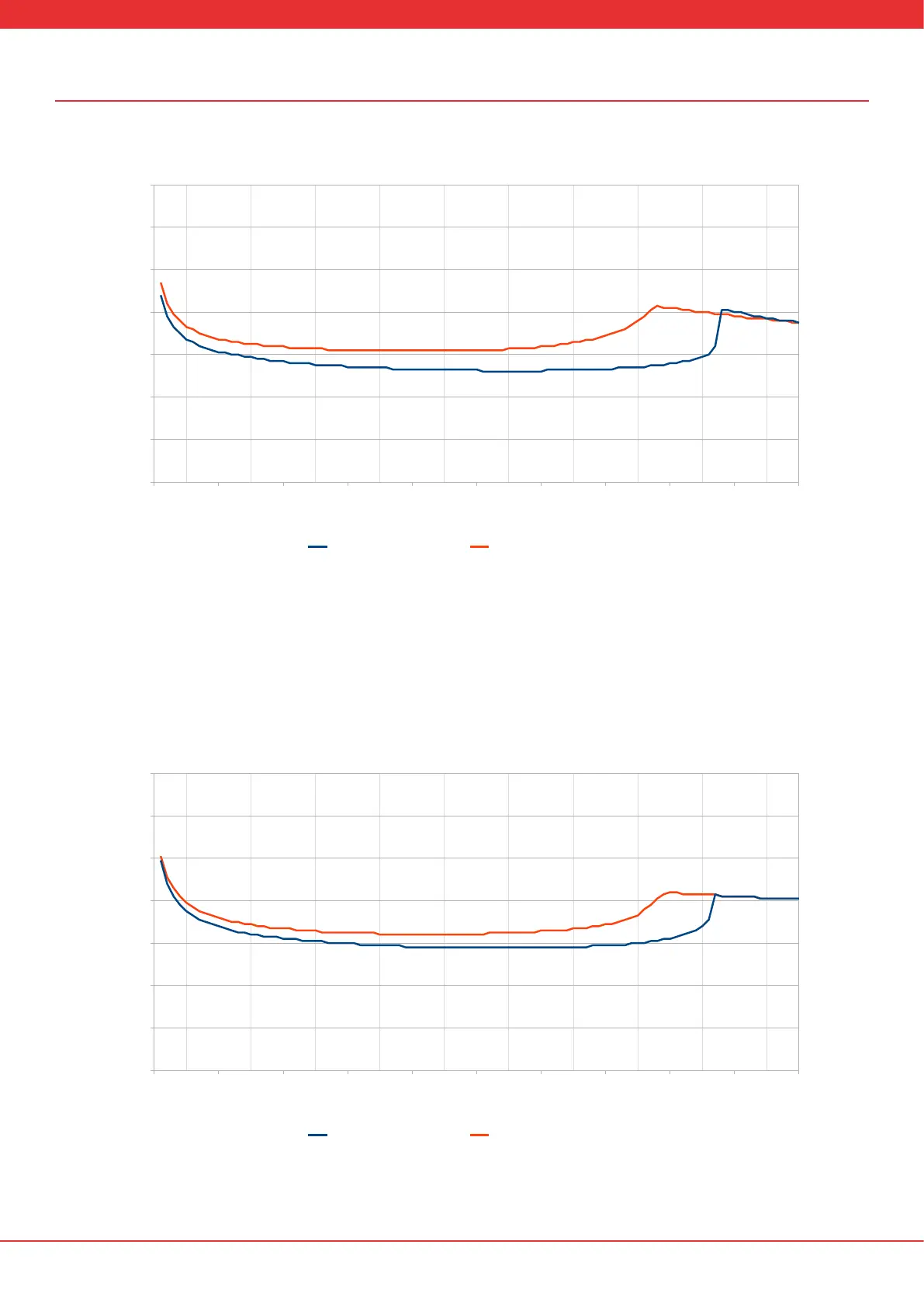

Appendix A - Alarm Temperature Charts (cont.)
Chart A4 - Expected temperature required for an alarm in relation to percentage of ProReact EN Analogue LHD Cable in 79°C Setting
Chart A3 - Expected temperature required for an alarm in relation to percentage of ProReact EN Analogue LHD Cable in 72°C Setting
0 10 20 30 40 50 60 70 80 90 100
0
20
40
60
80
100
120
140
7 2 °C
(Typical Application Tem perature of 30 deg C)
Typical Application Temp (30 Deg C) Max Application Temp (47 Deg C)
T e m p e ra tu re re q u ire d fo r a la rm (d e g C )
0 10 20 30 40 50 60 70 80 90 100
0
20
40
60
80
100
120
140
7 9 °C
(Typical Application Tem perature of 35 deg C)
Typical Application Temp (35 Deg C) Max Application Temp (47 Deg C)
T e m p e ra tu re re q u ire d fo r a la rm (d e g C )
% of ProReact EN Analogue cable exposed
% of ProReact EN Analogue cable exposed
