Appendix A - Alarm Temperature Charts (cont.)

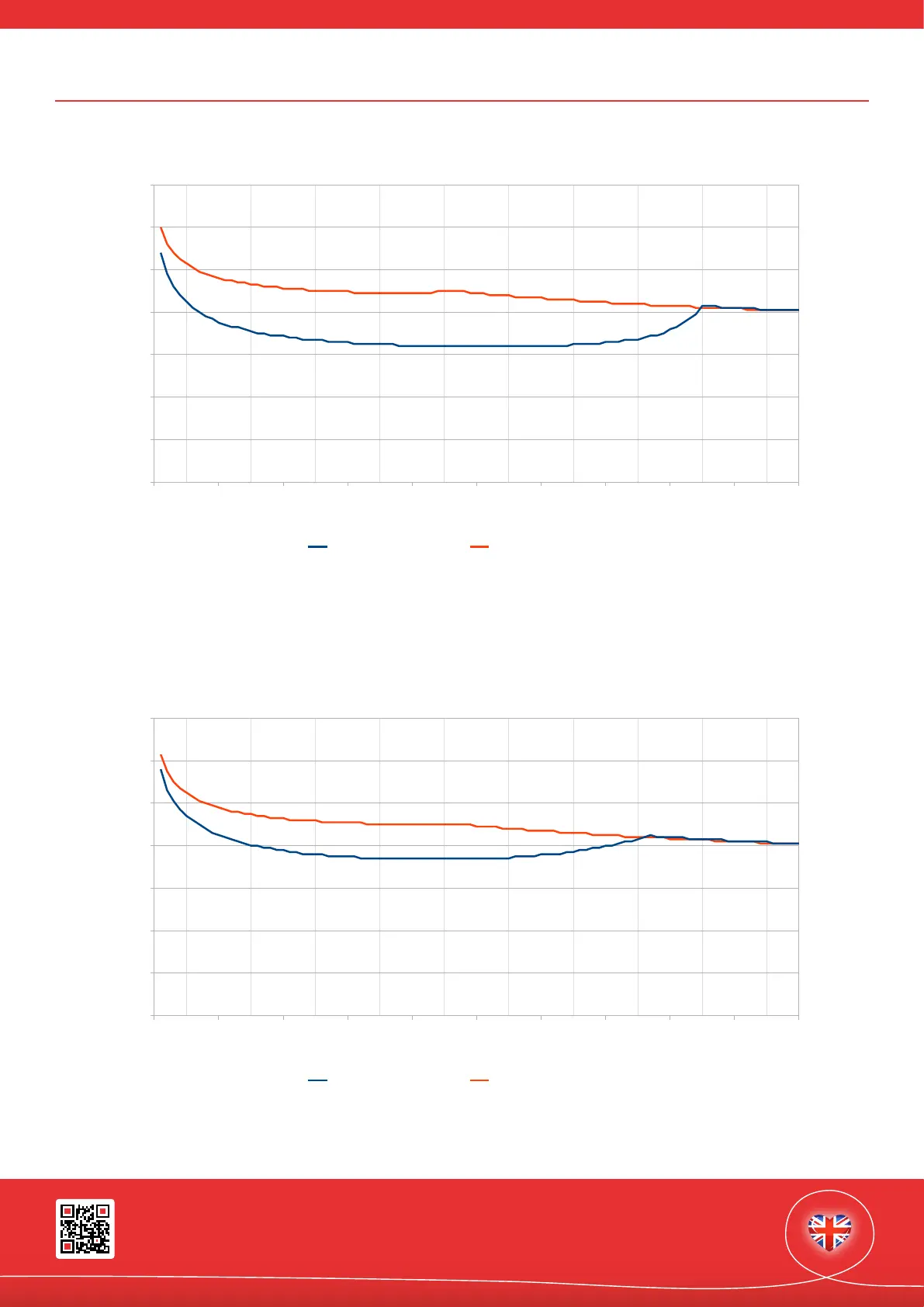

Chart A5 - Expected temperature required for an alarm in relation to percentage of ProReact EN Analogue LHD Cable in 86°C Setting
Chart A6 - Expected temperature required for an alarm in relation to percentage of ProReact EN Analogue LHD Cable in 100°C Setting
0 10 20 30 40 50 60 70 80 90 100
0
20
40
60
80
100
120
140
8 6 °C
(Typical Application Tem perature of 40 deg C)
Typical Application Temp (40 Deg C) Max Application Temp (65 Deg C)
T e m p e ra tu re re q u ire d fo r a la rm (d e g C )
% of ProReact EN Analogue cable exposed
% of ProReact EN Analogue cable exposed
