ThinkPad Edge E540 - 1190 DC-In;Ethernet Card

•“1030Largebottomcover”onpage66
•“1050Opticaldriveoroptical-drivebaybezel”onpage68
•“1070Harddiskdriveorsolid-statedrive”onpage70
•“1100Coin-cellbattery”onpage76
•“1120Keyboard”onpage79
•“1130Keyboardbezelassembly”onpage85

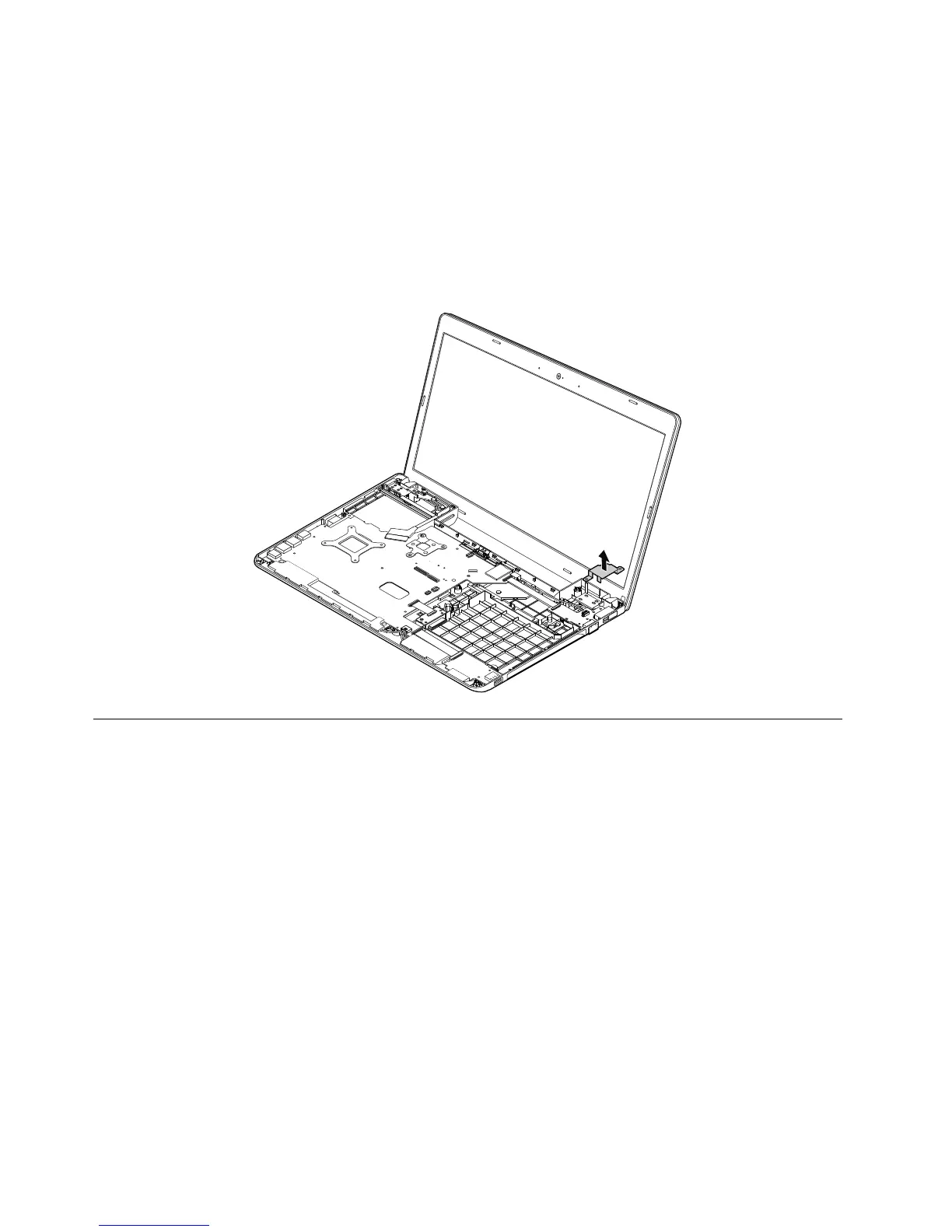

RemovalstepsoftheDC-inbracket
Note:Thesystemboardofthecomputerthatyouareservicingmightbedifferentfromtheoneinthe
followingillustration.
1190DC-in/Ethernetcard
Foraccess,removetheseFRUsinorder:
•“1010Lenovo-OneLink-connectorcover”onpage65
•“1020Batterypack”onpage65
•“1030Largebottomcover”onpage66
•“1050Opticaldriveoroptical-drivebaybezel”onpage68
•“1070Harddiskdriveorsolid-statedrive”onpage70
•“1100Coin-cellbattery”onpage76
•“1120Keyboard”onpage79
•“1130Keyboardbezelassembly”onpage85
•“1180DC-inbracket”onpage95
RemovalstepsoftheDC-in/Ethernetcard
Note:Thesystemboardofthecomputerthatyouareservicingmightbedifferentfromtheoneinthe
followingillustrations.
96HardwareMaintenanceManual
