ThinkPad Edge E540 - 1160 Media-Card-Reader;Usb Card

11
10
1160Media-card-reader/USBcard
Foraccess,removetheseFRUsinorder:
•“1020Batterypack”onpage65
•“1030Largebottomcover”onpage66
•“1050Opticaldriveoroptical-drivebaybezel”onpage68
•“1070Harddiskdriveorsolid-statedrive”onpage70
•“1120Keyboard”onpage79
•“1130Keyboardbezelassembly”onpage85

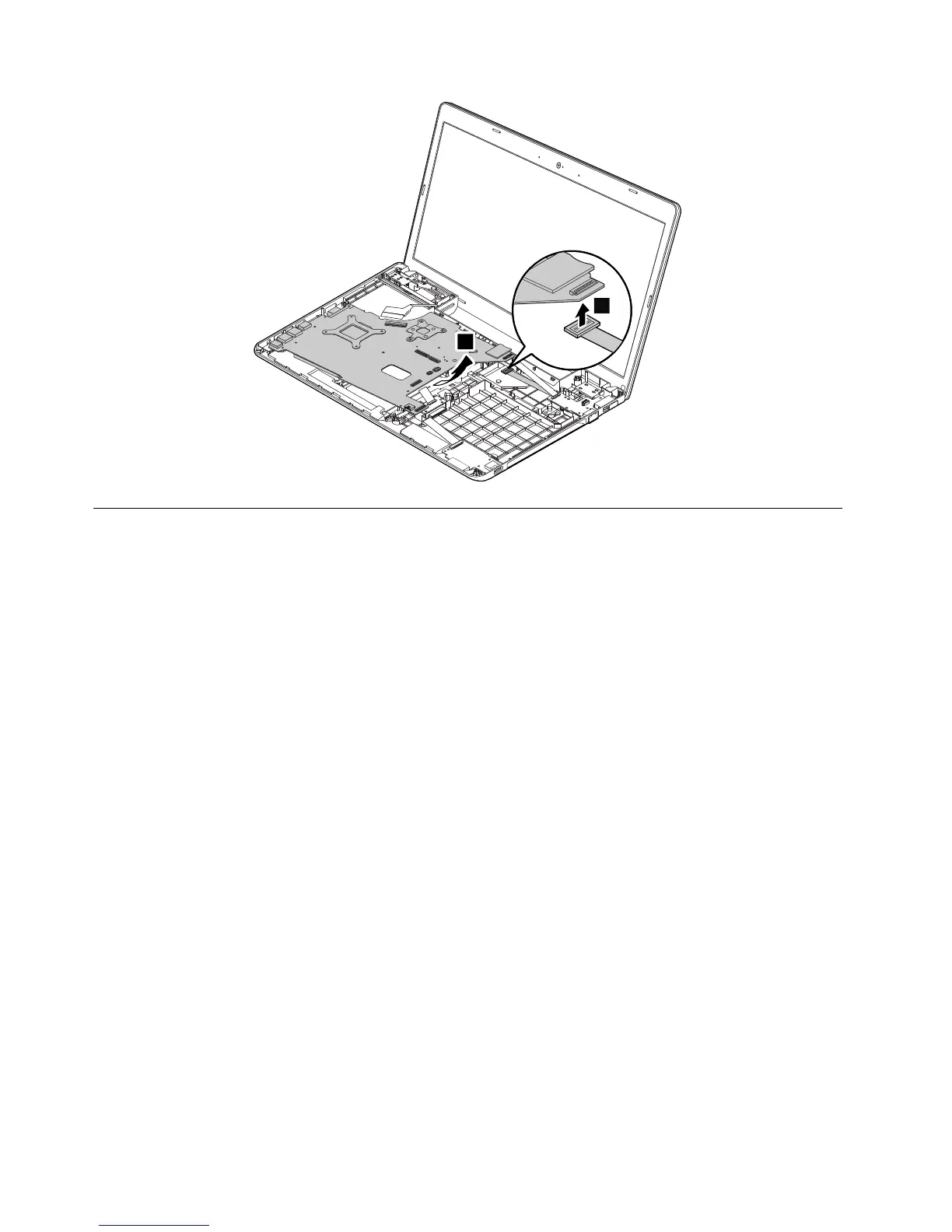

Removalstepsofthemedia-card-reader/USBcard
Note:Thesystemboardofthecomputerthatyouareservicingmightbedifferentfromtheoneinthe
followingillustrations.
92HardwareMaintenanceManual
