1 SpeedTouch™ Installation
E-DOC-CTC-20030814-0001 v1.0
7

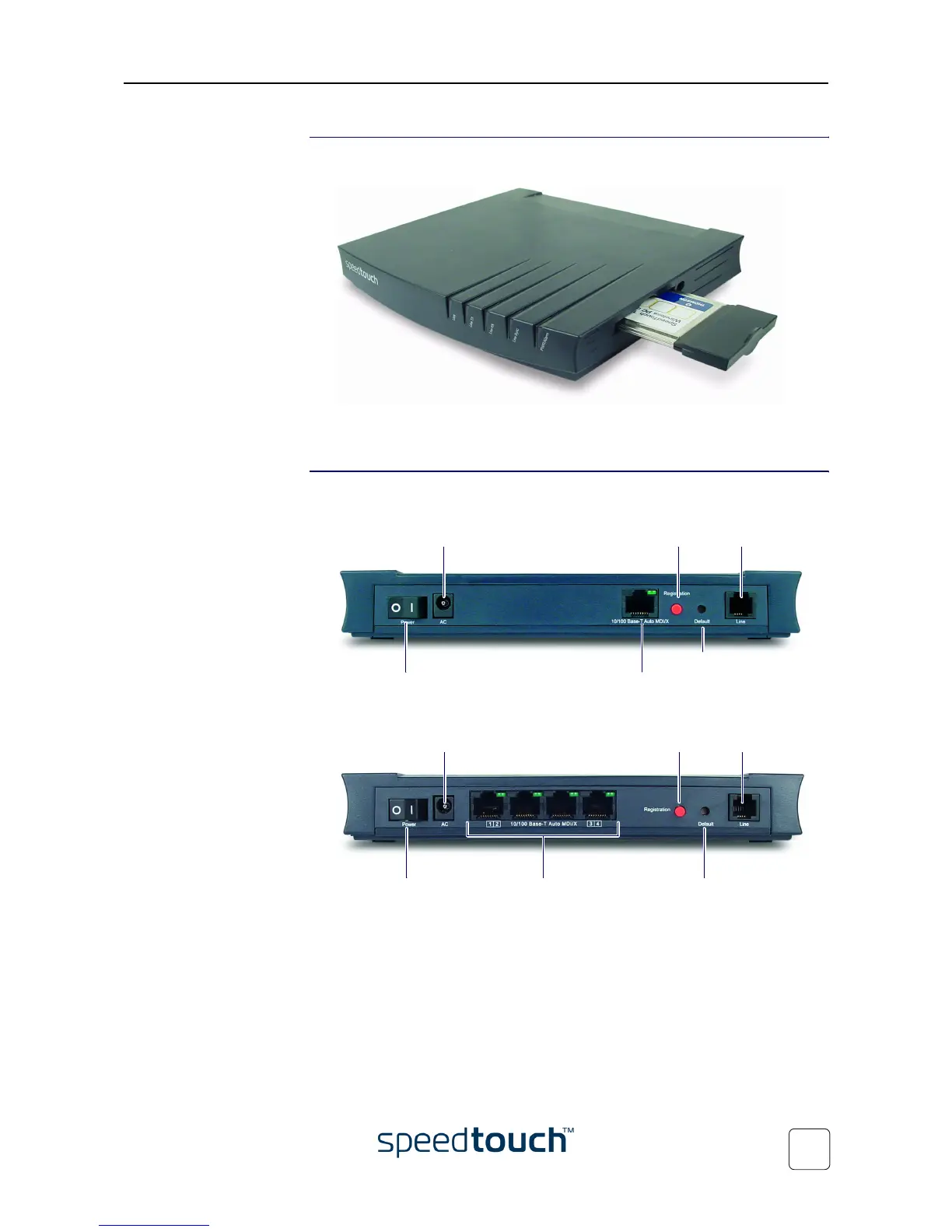

SpeedTouch™545
side panel
The slot on the SpeedTouch™545 side panel allows you to upgrade your SpeedTouch™
for wireless connectivity by installing a SpeedTouch™010 wireless upgrade card:
For more information on how to install the SpeedTouch™010 wireless upgrade card,
see “7.1 Upgrading a SpeedTouch™545 for Wireless Networking” on page 74.
Back panel layout Depending on the variant you purchased, your SpeedTouch™ is equipped with:
• A single 10/100Base-T Half-/Full-duplex MDI/MDI-X Ethernet port:
• A four port 10/100Base-T Half-/Full-duplex MDI/MDI-X Ethernet switch:
Power Switch
Registration button
10/100Base-T Ethernet port
DSL port
Power Socket
Default button
Power Switch
Registration button
Default button10/100Base-T Ethernet switch
DSL port
Power Socket
