THOMSON THC301 - Page 3

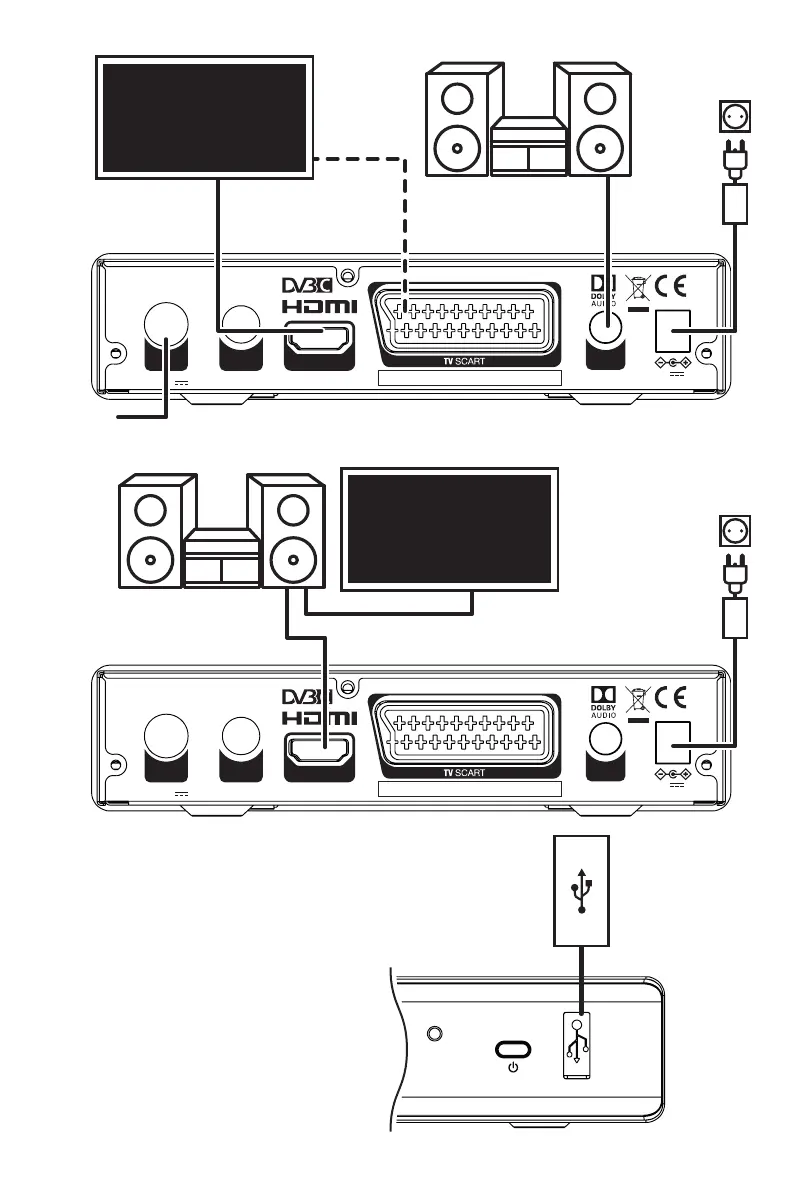

Fig. 6
Fig. 7
Fig. 8
USB
storage device
USB Cable
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AUDIO
AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES.
CABLE
IN
CABLE
OUT
HDMI
DIGITAL HD CABLE RECEIVER THC301
500 mA MAX.USB: 5 V
S/PDIF
COAXIAL
12 V ,
0.5 A, MAX. 6 W
HDMI
Cable
SCART
Cable
(optional)
Television
Digital Audio
Amplier
S/PDIF
Cable
Cable
Broadcast
2 HDMI
Cables
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AUDIO
AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES.
CABLE
IN
CABLE
OUT
HDMI
DIGITAL HD CABLE RECEIVER THC301
500 mA MAX.USB: 5 V
S/PDIF
COAXIAL
12 V ,
0.5 A, MAX. 6 W
Digital Audio
Amplier
Television
