THOMSON TS 910 - 11 Front Interior View (2 Pole 100 A Service Entrance Ats)

TS 910 TRANSFER SWITCH
PM140 REV 0 12/02/09 17 Thomson Technology

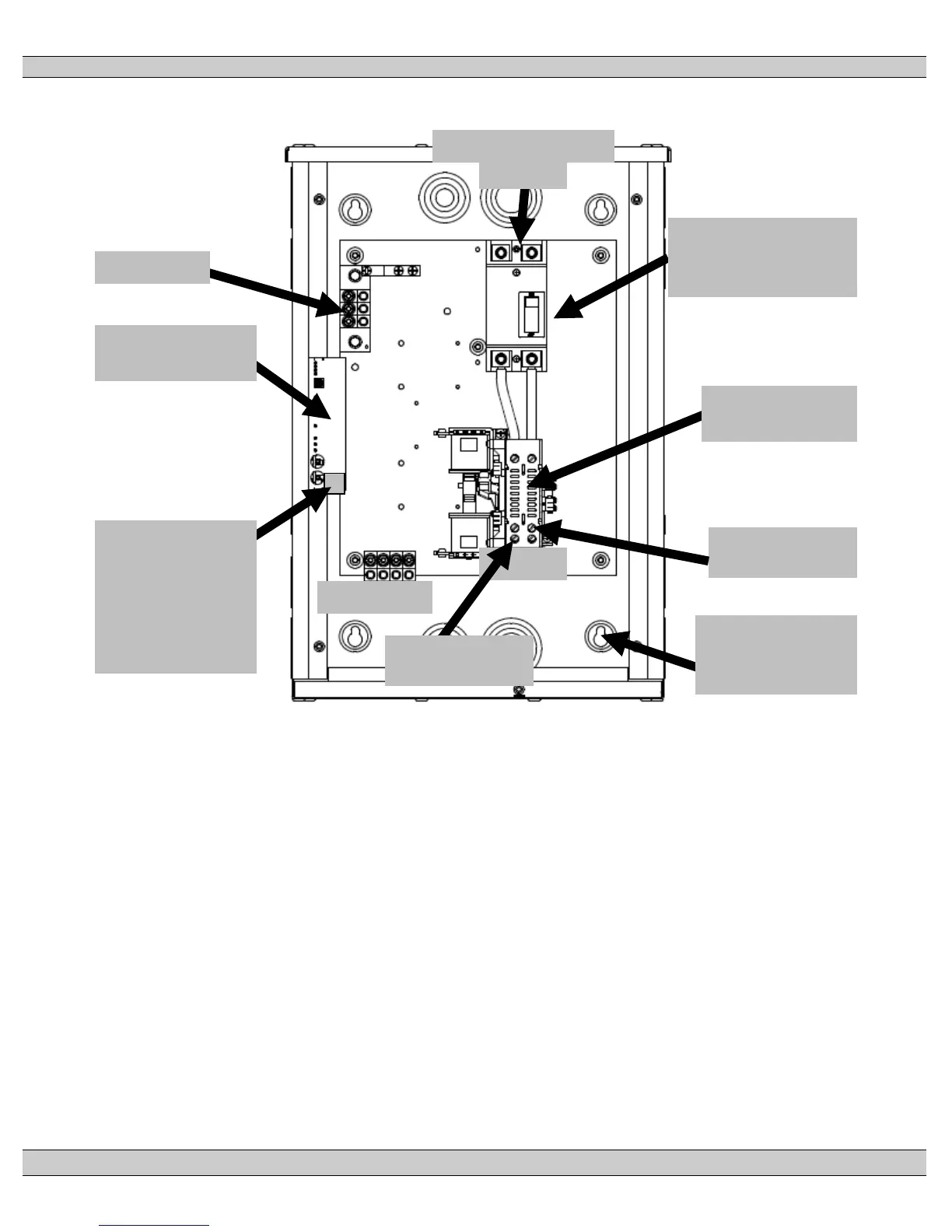

11. FRONT INTERIOR VIEW (2 POLE 100A SERVICE ENTRANCE ATS)
NEUTRAL
UTILITY SUPPLY
L1 L2
GEN SUPPLY
(TOP LUGS)
TSC 9
CONTROLLER
GROUND
L1 L2
LOAD
(BOTTOM LUGS)
CUSTOMER
CONTROL
CONNECTIONS:
•GEN START
•LOAD SHED
•ALARM
•
REMOTE TEST
UTILITY SERVICE
DISCONNECT
BREAKER
TRANSFER
MECHANISM
ENCLOSURE
MOUNTING
HOLES (TYP 4)
