TS 910 TRANSFER SWITCH
PM140 REV 0 12/02/09 41 Thomson Technology
18.15. TSC 9 CONFIGURATION INSTRUCTIONS

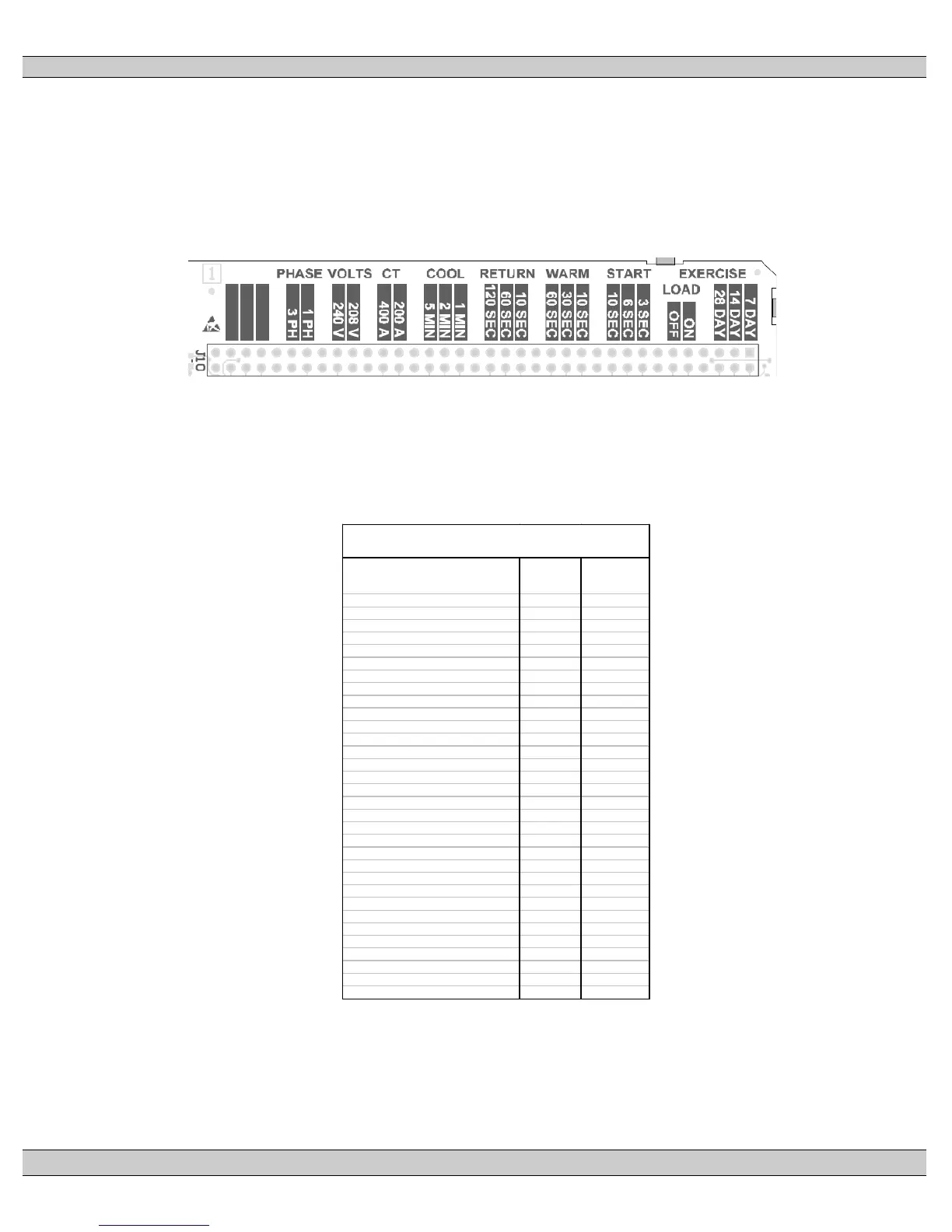

All user configuration of the TSC 9 controller is accomplished using hardware jumpers
located on top of the printed circuit board as per the following picture. No software
programming is required. The hardware jumpers are used for configuration of main
operating parameters such as system voltage, phases, and adjustable time delays.
18.15.1. FACTORY DEFAULT JUMPER SETTINGS
All TSC 9 configuration jumpers are set to default settings at the factory as per
the following table and should not require further setting.
FUNCTION SETTING
FACTORY
DEFAULT
EXERCISE TEST CYCLE 7 DAY
X
EXERCISE TEST CYCLE 14 DAY
EXERCISE TEST CYCLE 28 DAY
EXERCISE LOAD TRANSFER ON LOAD
EXERCISE LOAD TRANSFER OFF LOAD
X
ENGINE START DELAY 3 SEC
X
ENGINE START DELAY 6 SEC
ENGINE START DELAY 10 SEC
ENGINE WARMUP TIME 10 SEC
X
ENGINE WARMUP TIME 30 SEC
ENGINE WARMUP TIME 60 SEC
UTILTY RETURN DELAY 10 SEC
UTILTY RETURN DELAY 60 SEC
UTILTY RETURN DELAY 120 SEC
X
ENGINE COOLDOWN TIME 1 MIN
ENGINE COOLDOWN TIME 2 MIN
X
ENGINE COOLDOWN TIME 5 MIN
CURRENT TRANSFORMER SIZE 200A
CURRENT TRANSFORMER SIZE 400A
SYSTEM VOLTAGE 208V
SYSTEM VOLTAGE 240V
X
SYSTEM PHASE 1 Ph
X
SYSTEM PHASE 3 Ph
TSC 9
CONFIGURATION JUMPERS
