THORLABS K10CR1 User Manual

22 HA0338T Rev C July 2022
Chapter 5
5.5 Homing Motors
Homing the motor moves the actuator to the home limit switch and resets the internal
position counter to zero. The limit switch provides a fixed datum that can be found
after the system has been powered up.

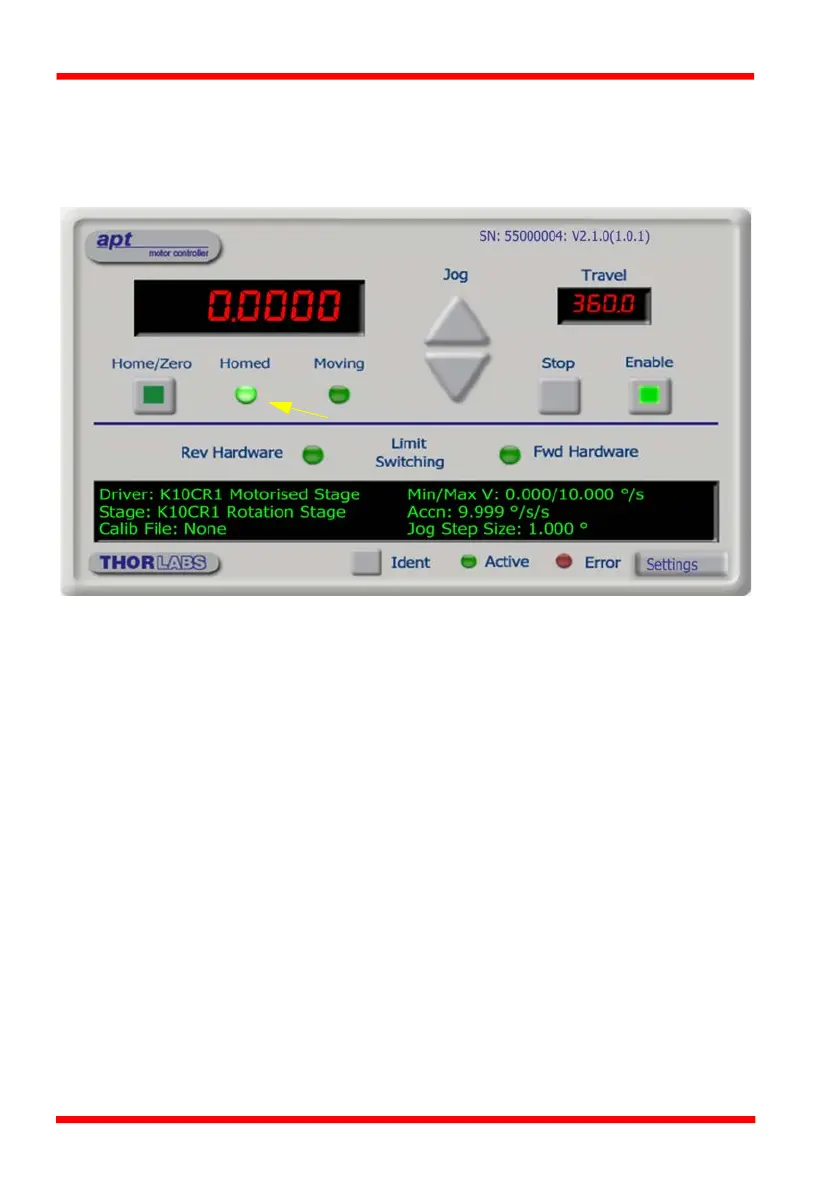

Fig. 5.3 Motor Controller Software GUI
1) Click the ‘Home’ button. Notice that the led in the button lights to indicate that
homing is in progress and the displayed position for both channels counts down
to 000.000, i.e the home position. The stage can also be homes by pressing the
‘Reverse’ and ‘Forward’ buttons simultaneously on the side panel.
2) When homing is complete, the ‘Homed’ LED is lit as shown above.
