K10CR1 Cage Rotation Stage
Chapter 6 Software Reference
6.1 Introduction
This chapter gives an explanation of the parameters and settings accessed from the
APT software running on a PC.
6.2 GUI Panel
The following screen shot shows the graphical user interface (GUI) displayed when
accessing the stepper controller using the APTUser utility.

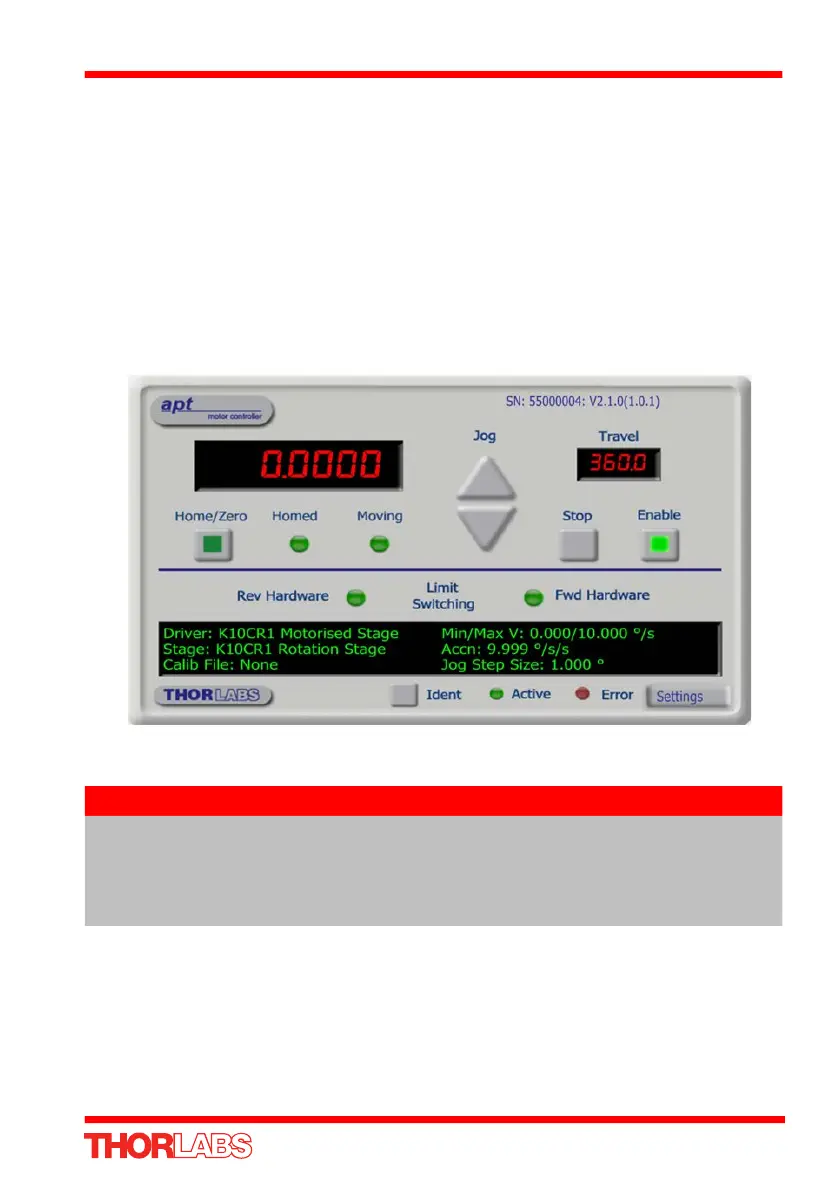

Fig. 6.1 K10CR1 Software GUI
Jog - used to increment or decrement the motor position. When the button is clicked,
the motor is driven in the selected direction at the jog velocity one step per click. The
step size and jog velocity parameters are set in the 'Settings' panel (see Section 6.3.).
Travel - displays the range of travel (in degrees) of the motor.
Moving - lit when the motor is in motion.
Note
The serial number of the K10CR1 stage associated with the GUI panel, the
APT server version number, and the version number (in brackets) of the
embedded software running on the unit, are displayed in the top right
hand corner. This information should always be provided when
requesting customer support.
