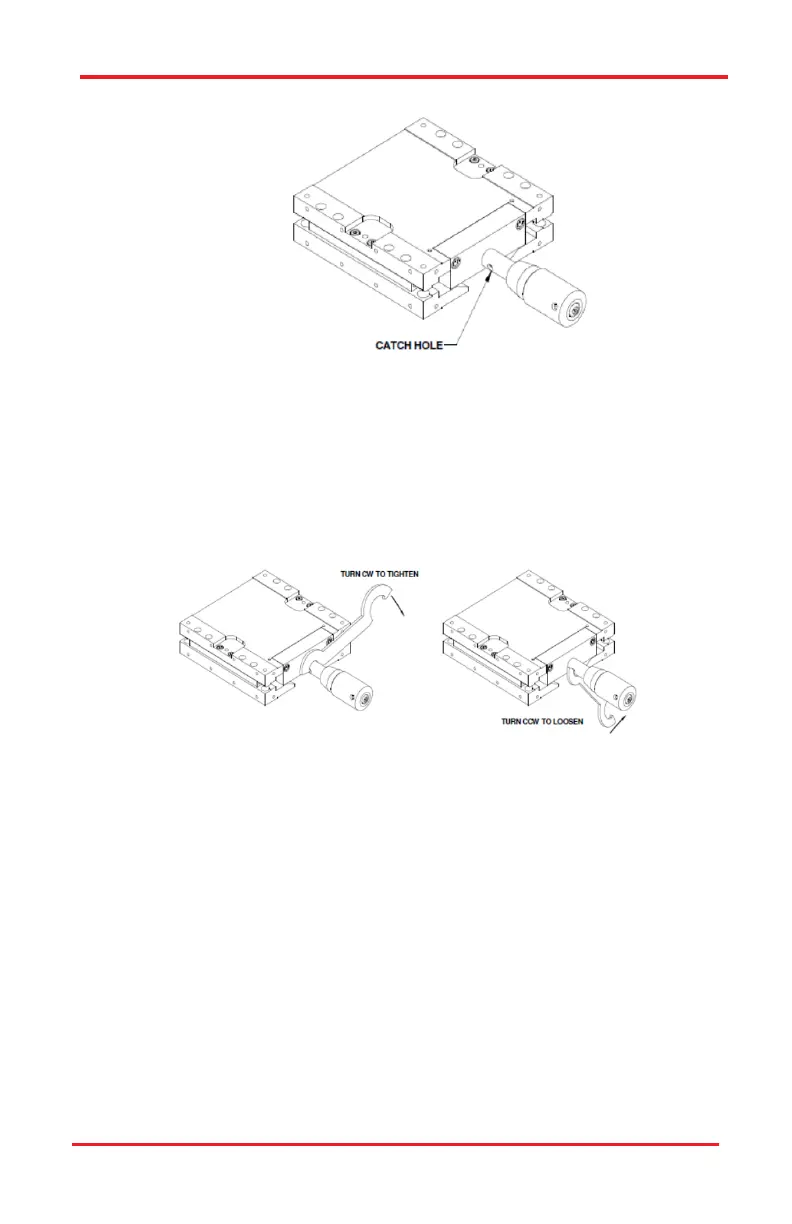

Figure 7–15 Locating the Catch Hole
2. Turn the wrench clockwise to tighten the sleeve and increase the friction.
Repositioning the wrench underneath and turning counterclockwise
loosens the sleeve, decreasing the friction of the adjustment knob. Do
not loosen the sleeve all the way. It should always be snug. If it is loose,
the adjustment knob is free to move laterally or to “wiggle.” To increase
the lateral stability, simply tighten the sleeve.
Figure 7–16 Tightening the Sleeve vs. Loosening the Sleeve
