3.2 Detailed GUI Description
The Graphic User Interfaces automatically connects to the detected TSP01. The software
starts with the most recent settings and configuration.
3.2.1 Controls

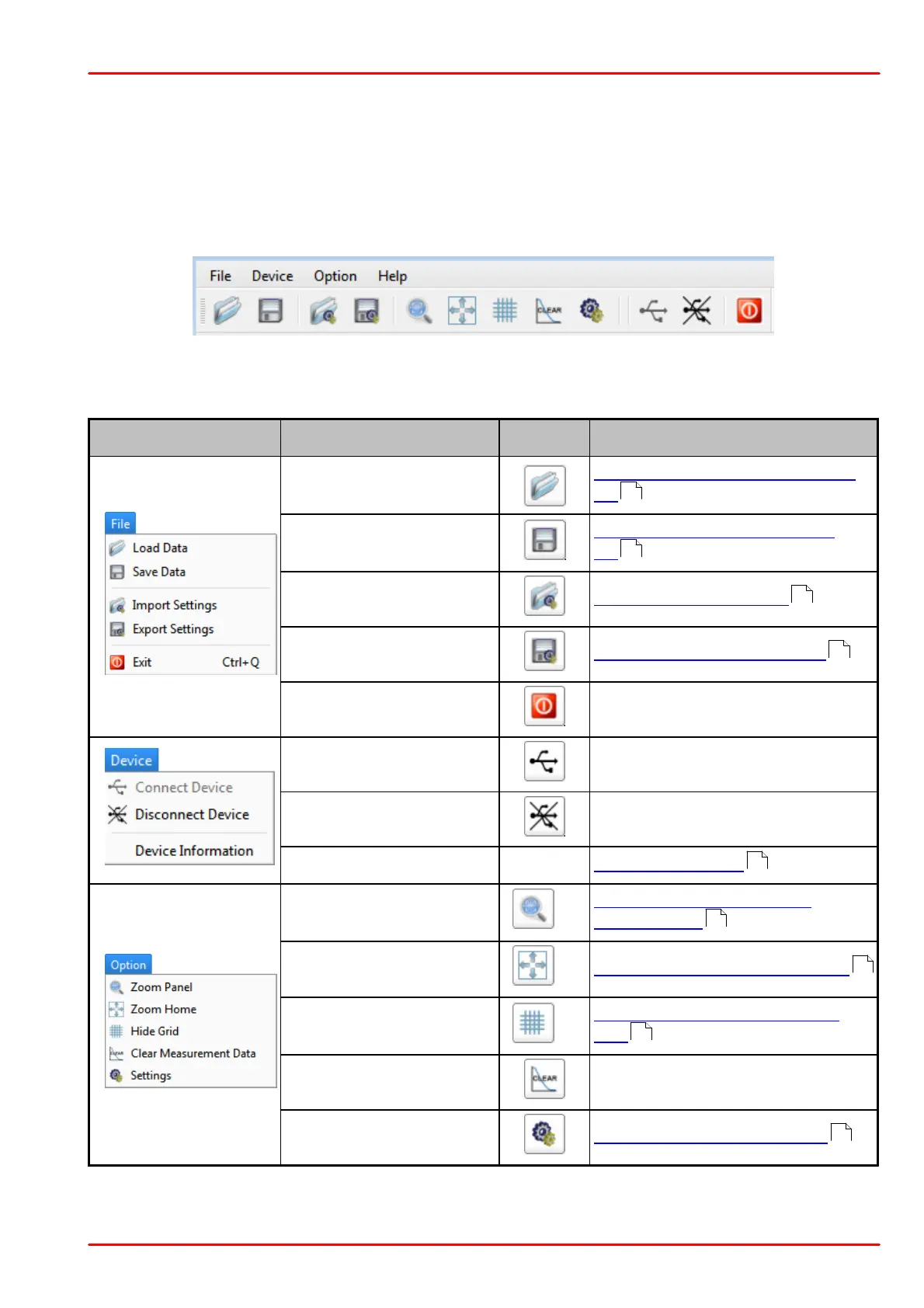

TSP01 GUI Controls
The following table summarizes the function of controls. For detailed information, click to the
text in the Function column.
Menu
Menu Topic
Icon
Function
Load Data
Load measurement data from a
file
Save Data
Save measurement data to a
file
Import Settings
Import configuration file
Export Setting
Export configuration to a file
Exit
Exit GUI
Connect Device
Disconnect Device
Device Information
-
Recall TSP01 info
Zoom Panel *)
*)
Opens Zoom Dialog panel
(Graph axes)
Zoom Home *)
*)
Resets zoom of Graph display
Hide Grid *)
*)
Hide / show grid in Graph dis-
play
Clear Measurement Data
Clears all logged data
Settings
Opens Settings dialog panel
16
16
17
17
18
14
14
14
12
