THUNDER TIGER raptor e700 - Landing Skid; 腳架組組裝

-13-
LANDING SKID BRACE
SKID PIPE
SKID PIPE END CAP
腳架
底座圓管
圓管塞
2
2
4
No.
1
2
3
QtyDescription 名稱
SOCKET SCREW, M3x12
SET SCREW, M4x5
No.
4
5
QtyDescription
4
4
名稱
內六角螺絲, M3x12
無頭內六角螺絲, M4x5
Apply threadlocker
使用螺絲防鬆膠

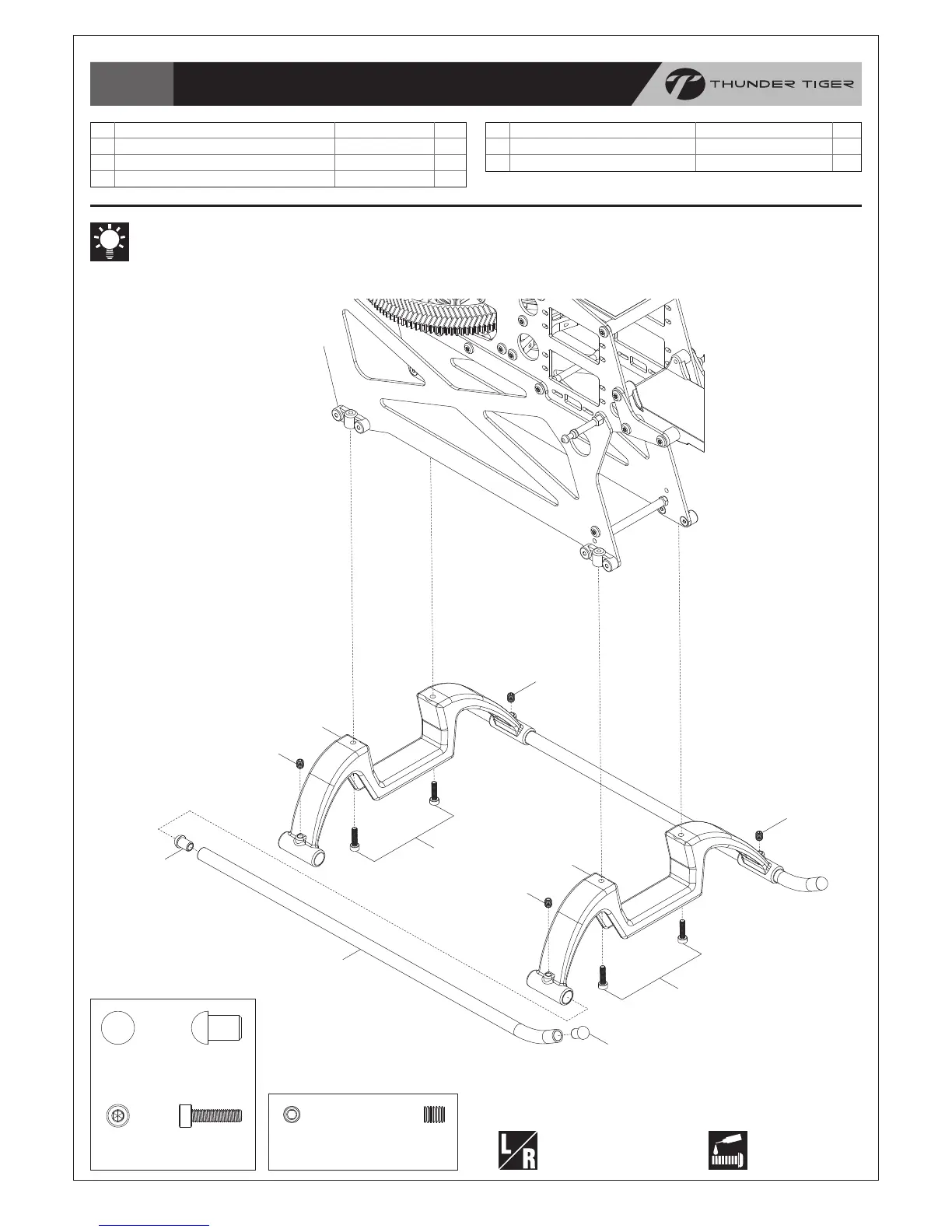

Landing Skid / 腳架組組裝
Bag F
SOCKET SCREW, M3x12
內六角螺絲, M3x12
SKID PIPE END CAP
圓管塞
SET SCREW, M4x5
無頭內六角螺絲, M4x5
(5)
(4)
(1)
(2)
(3)
(3)
(4)
(1)
(5)
(5)
(5)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Assemble left and right
side the same way
左右側組件相同
