THUNDER TIGER raptor e700 - Electronic Device & Battery Tray; 電子設備及電池座組裝

-20-

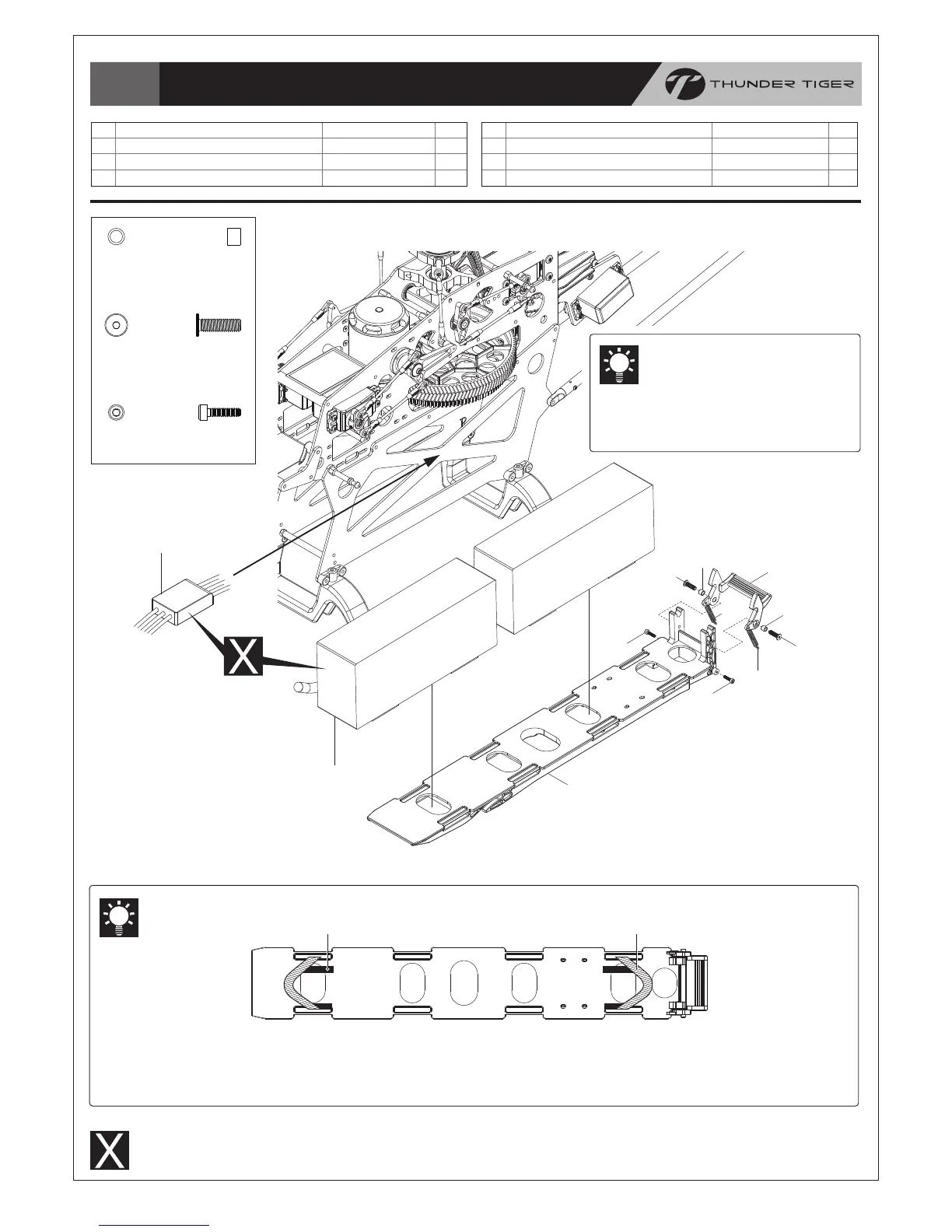

Electronic Device & Battery Tray / 電子設備及電池座組裝
Must be purchased separately
改裝品需另購
(5)
(6)
(6)
(4)
(4)
(3)
(3)
(2)
(5)
(1)
Electronic Speed Controller / 速控器
6S Li-Po Battery x 2 / 6S鋰電池 x 2
Stick a foam tape onto the position where the strap ties through the battery tray to prevent the strap from being worn
and broken in hard flight.
將泡棉膠貼在束帶穿過電池座的位置上，可防止束帶於激烈飛行中磨損及斷裂。
Bag L
No.
1
2
3
QtyDescription 名稱 No.
4
5
6
QtyDescription 名稱
BATTERY TRAY
BATTERY TRAY CATCH
COLLAR, d3xD4xW3.1
電池座
電池座夾扣
軸套
, d3xD4xW3.1
1
1
2
扁平頭螺絲 , M3x10
拉伸彈簧
內六角螺絲
, M2x8
2
2
2
FLAT SCREW, M3x10
SPRING
SOCKET SCREW, M2x8
COLLAR, d3xD4xW3.1
軸套, d3xD4xW3.1
FLAT SCREW, M3x10
扁平頭螺絲, M3x10
SOCKET SCREW, M2x8
內六角螺絲, M2x8
Foam / 泡棉膠 Strap / 束帶
Secure the speed controller and
battery(option) with straps to
prevent them from being
ejected in flight.
使用適當束帶固定速控器及電池組
(選購)，以防止飛行中脫落。
