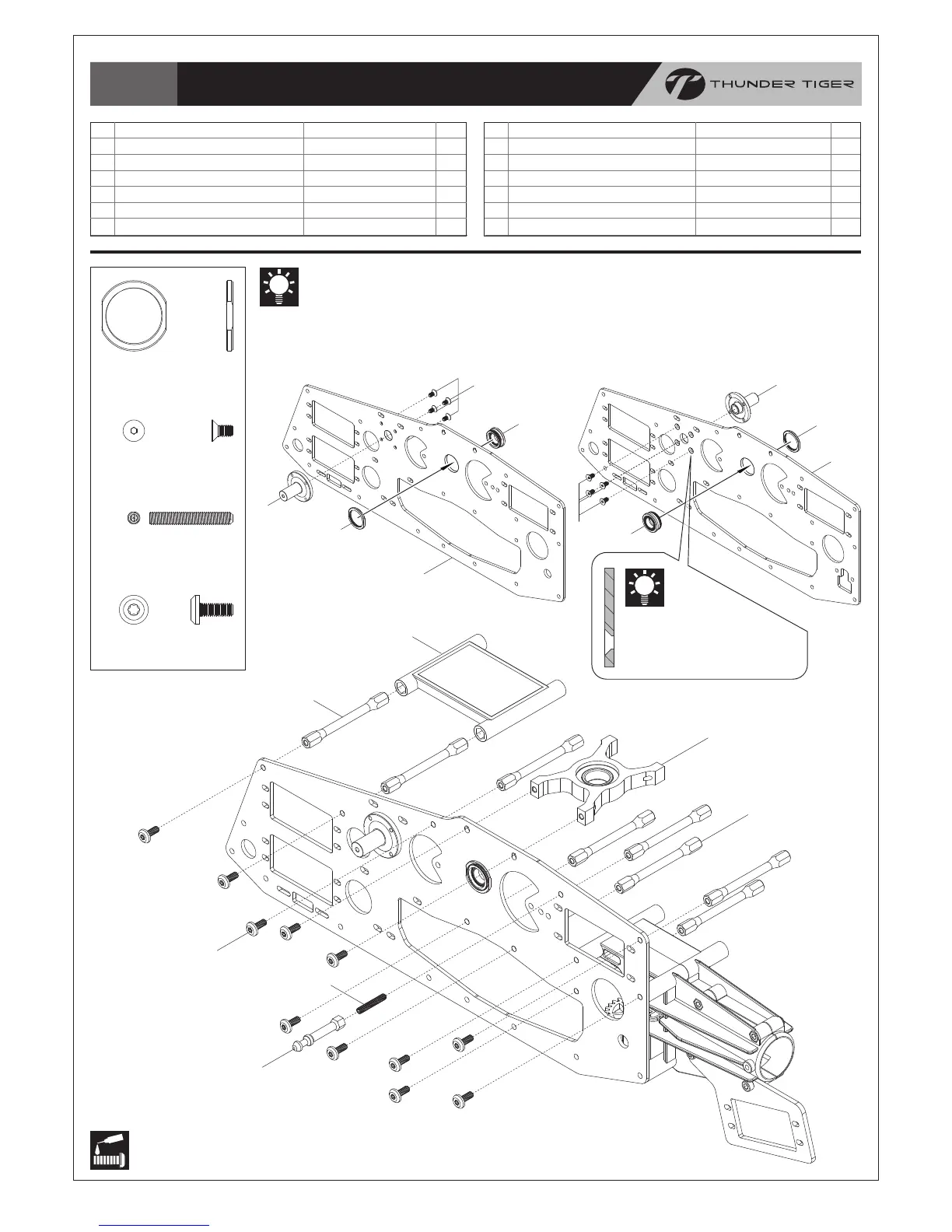

THUNDER TIGER raptor e700 - Main Frame; 本體組裝

-9-
Secure all screws & Washer Mount shown on this page with a drop of threadlocker.
本頁顯示之螺絲及控制臂軸承座請使用適量防鬆膠鎖固。
Left Frame
左側板
Right Frame
右側板
No.
1
2
3
4
5
6
QtyDescription 名稱
碳纖側板-左
碳纖側板-右
控制臂軸承座
軸承座螺帽
控制臂固定座
沈頭內六角螺絲
, M2.5x5
SIDE FRAME-L
SIDE FRAME-R
ELEVATOR WASHER MOUNT
Nut
CONTROL LEVER BASE
SINK SOCKET SCREW, M2.5x5
1
1
2
2
2
8
No.
7
8
9
10
11
12
QtyDescription
名稱
側板支柱
陀螺儀座
主軸軸承座
無頭內六角螺絲
, M3x20
機身固定柱(32mm)
星型低頭螺絲
, M3x8
FRAME SPACER
GYRO TRAY
MAIN SHAFT BRG BLOCK SET
SET SCREW, M3x20
CANOPY RETAINING POST(32mm)
TORX SCREW, M3x8
8
1
1
1
1
11
(7)
(7)
(8)
(10)
(9)
(6)
(6)
(3)
(11)
(5)
(1)
(2)
(12)
(4)
Main Frame / 本體組裝
Bag C+D
Apply threadlocker
使用螺絲防鬆膠
(5)
(4)
(3)
Nut
軸承座螺帽
SINK SOCKET SCREW, M2.5x5
沈頭內六角螺絲, M2.5x5
SET SCREW, M3x20
無頭內六角螺絲, M3x20
TORX SCREW, M3x8
星型低頭螺絲, M3x8
The larger hole always goes
toward the inner side.
請注意螺絲鎖固孔徑較大者朝內。
