THUNDER TIGER raptor e700 - Page 11

-10-
Apply threadlocker
使用螺絲防鬆膠
No.
1
2
3
4
5
6
QtyDescription 名稱 No.
7
8
9
10
11
12
QtyDescription 名稱
接收機承座
側板支柱
碳纖下側板﹣左
碳纖下側板﹣右
支撐架固定座
沈頭內六角螺絲
, M3x8
電池盒支柱
星型低頭螺絲
, M3x8
接收機承座補強板
機身固定柱(32mm)
無頭內六角螺絲
, M3x20
主軸軸承座
RADIO TRAY
FRAME SPACER
LOWER SIDE FRAME-L
LOWER SIDE FRAME-R
SKID BRACKET
SINK SOCKET SCREW, M3x8
BATTERY POST
TORX SCREW, M3x8
RADIO TRAY BRACKET
CANOPY RETAINING POST(32mm)
SET SCREW, M3x20
MAIN SHAFT BRG BLOCK SET
1
4
1
1
4
8
1
10
1
1
1
1
(4)

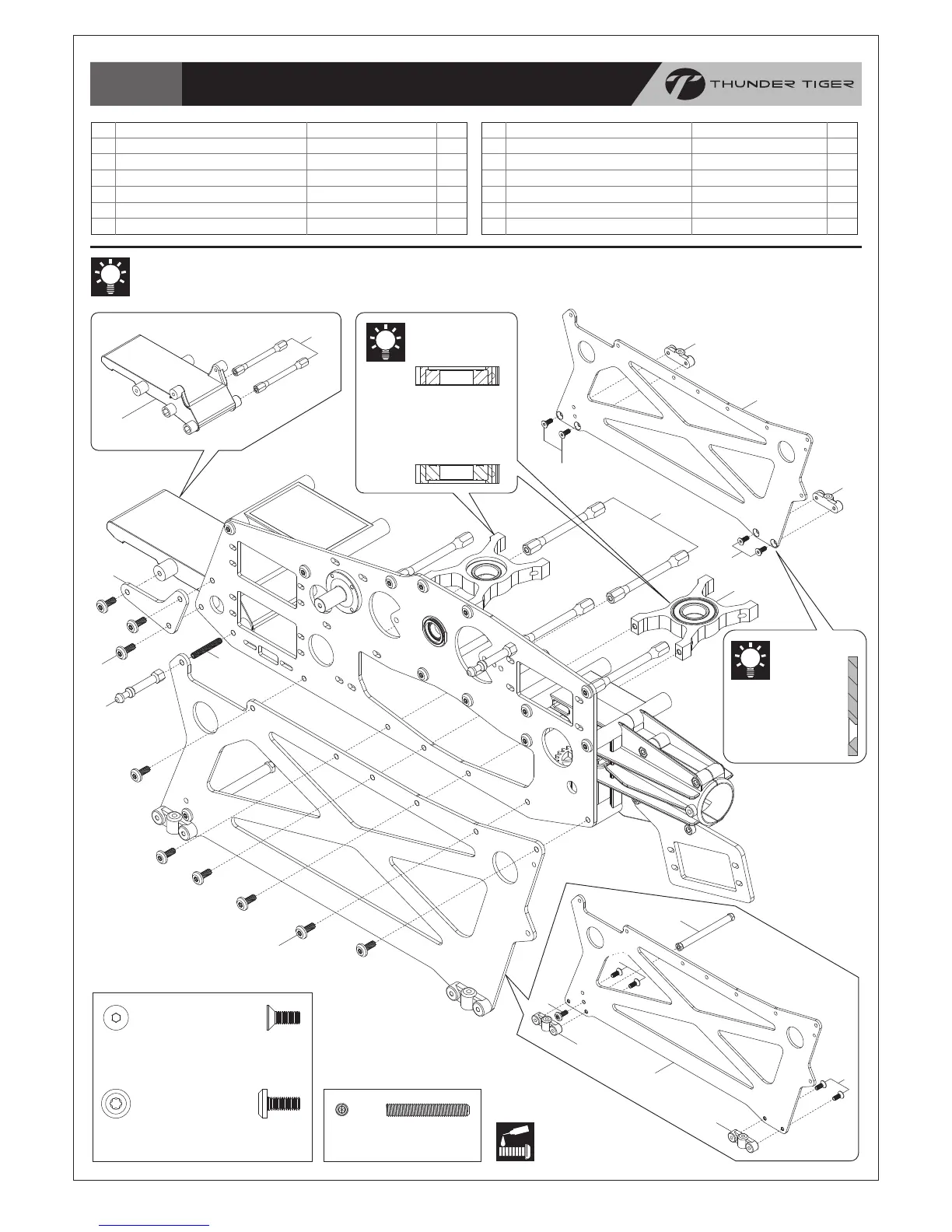

Main Frame / 本體組裝
Bag C+D
SET SCREW, M3x20
無頭內六角螺絲, M3x20
TORX SCREW, M3x8
星型低頭螺絲, M3x8
SINK SOCKET SCREW , M3x8
沈頭內六角螺絲, M3x8
(2)
(5)
(5)
(1)
(2)
(6)
(6)
(12)
(8)
(10)
(11)
(9)
(8)
(5)
(5)
(6)
(7)
(3)
(6)
(8)
The flat surface of the Block
always goes toward the
inner side (Main Gear).
軸承座上平面一側朝內（朝向
主齒盤）。
Upper
Lower
Secure all screws & Washer Mount shown on this page with a drop of threadlocker.
本頁顯示之螺絲及控制臂軸承座請使用適量防鬆膠鎖固。
The larger hole
always goes toward
the inner side.
請注意螺絲鎖固孔徑
較大者朝內。
