THUNDER TIGER raptor e700 - Tail Unit; 尾部總成組裝

-17-
No.
1
2
3
4
5
6
7
8
9
10
QtyDescription
TAIL DRIVE SHAFT
TAIL DRIVE SHAFT BRG
LOCK NUT, M2.5
TAIL DRIVE SHAFT LINKER
SOCKET SCREW, M2.5x12
TAIL BOOM
TORX SCREW, M3x8
CARBON VERTICAL FIN
TAIL STOPPER
SOCKET SCREW, M3x8
名稱
尾驅動軸
尾驅動軸軸套組
止鬆螺帽, M2.5
尾驅動連接棒
內六角螺絲, M2.5x12
尾管
星型低頭螺絲
, M3x8
碳纖垂直安定面
尾管止擋塊
內六角螺絲, M3x8
1
2
2
2
2
1
2
1
1
2
No.
11
12
13
14
15
16
17
18
19
QtyDescription
TAIL SUPPORT BRACKET
SOCKET SCREW, M3x10
ROD GUIDE
SELF TAPPING SCREW, M2x8
TAIL SUPPORT ROD
TAIL SUPPORT ROD END
BATTERY POST
SOCKET SCREW, M3x12
BUTTON HEAD SOCKET SCREW , M3x6
名稱
尾管固定座
內六角螺絲, M3x10
推拉桿固定環
自攻螺絲, M2x8
尾管支撐架
尾管支撐架接頭
電池盒支柱
內六角螺絲, M3x12
半圓頭內六角螺絲, M3x6
1
2
3
7
2
4
1
2
1

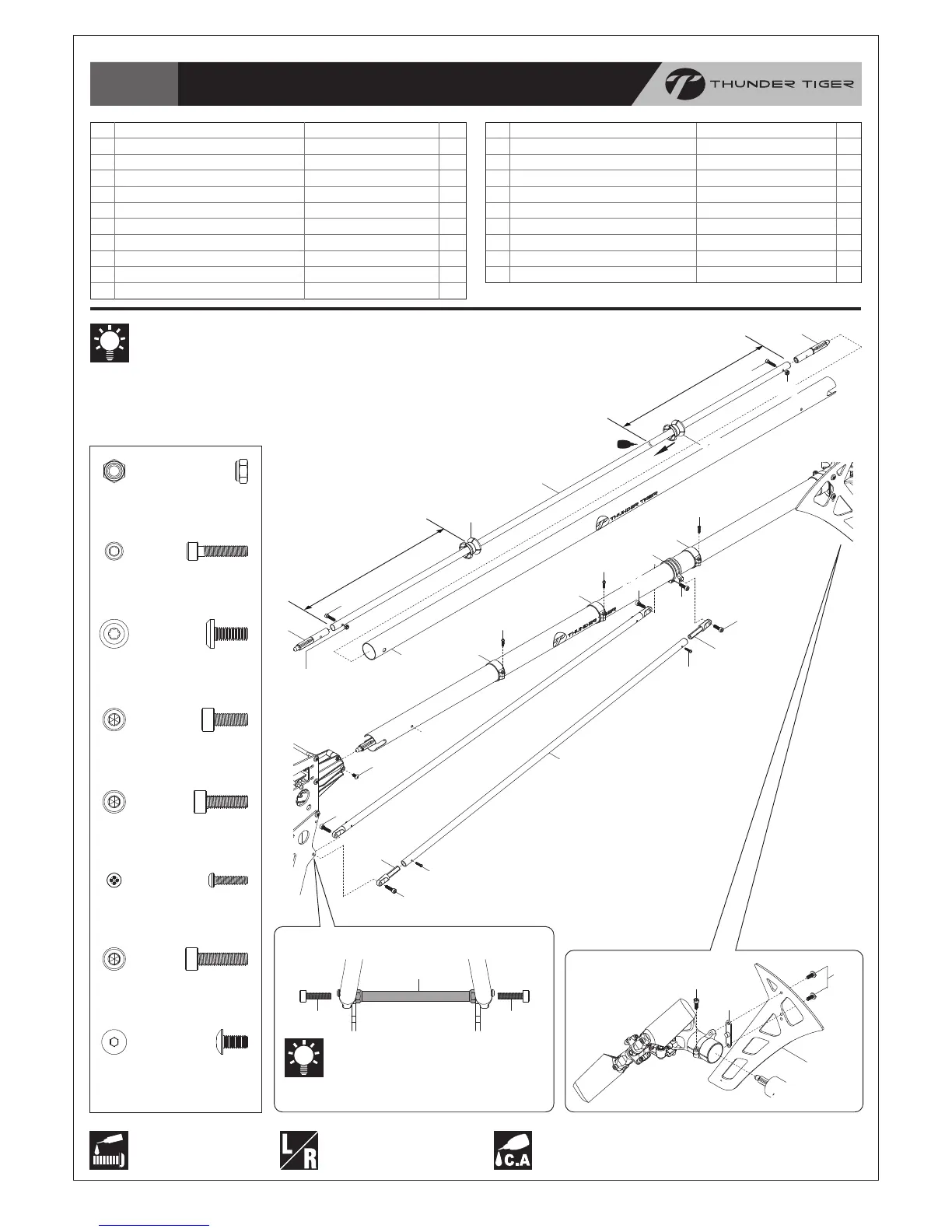

Tail Unit / 尾部總成組裝
Bag I+J
SOCKET SCREW, M3x10
內六角螺絲, M3x10
SOCKET SCREW, M3x8
內六角螺絲, M3x8
SOCKET SCREW, M2.5x12
內六角螺絲, M2.5x12
BUTTON HEAD
SOCKET SCREW, M3x6
半圓頭內六角螺絲, M3x6
TORX SCREW, M3x8
星型低頭螺絲, M3x8
SELF TAPPING SCREW, M2x8
自攻螺絲, M2x8
LOCK NUT, M2.5
止鬆螺帽, M2.5
SOCKET SCREW, M3x12
內六角螺絲, M3x12
Secure the screws into the Frame
Spacer when attaching the Tail Boom
Support End on the Main Frames.
安裝尾管支撐桿於側板上時，請注意需將
鎖固螺絲鎖固於六角固定支柱上。
(17)
Rear View 後視圖
(18) (18)
Apply C.A Glue
使用快乾膠黏合
Apply threadlocker
使用螺絲防鬆膠
Assemble left and right
side the same way
左右側組件相同
(10)
(9)
(8)
(7)
240mm/9.45”
(4)
(3)
(5)
(2)
(1)
C.A
(4)
(6)
240mm/9.45”
(2)
(3)
(5)
(13)
(14)
(13)
(13)
(19)
(11)
(10)
(16)
(16)
(12)
(18)
(14)
(14)
(15)
(14)
(12)
(18)
(14)
Add a drop of thin CA glue on the Tail Drive Shaft next to where the
bearing should be, and then slide the bearings over the position quickly;
the distance from the Shaft Drive End to the Rubber Shaft Bearing
Support is approx. 240mm / 9.45”.
在尾傳動軸上軸承固定位置前方，塗抹少量快乾膠，迅速滑動軸承至定位固定；
該定位大約距離軸傳動接頭240mm / 9.45”處。
