THUNDER TIGER raptor e700 - Page 12

-11-
No.
1
2
3
4
5
6
7
QtyDescription 名稱
金屬升降舵控制臂
升降舵連接座
滾珠軸承,
d2.5xD7xW3.5
內六角螺絲, M2.5x8
馬達齒輪(13T)
無頭內六角螺絲, M4x4
馬達固定座
ELEVATOR CONTROL ARM
ELEVATOR CONTROL ARM LINK
BEARING, d2.5xD7xW3.5
SOCKET SCREW, M2.5x8
MOTOR PINION-13T
SET SCREW, M4x4
MOTOR MOUNT
1
1
2
2
1
2
1

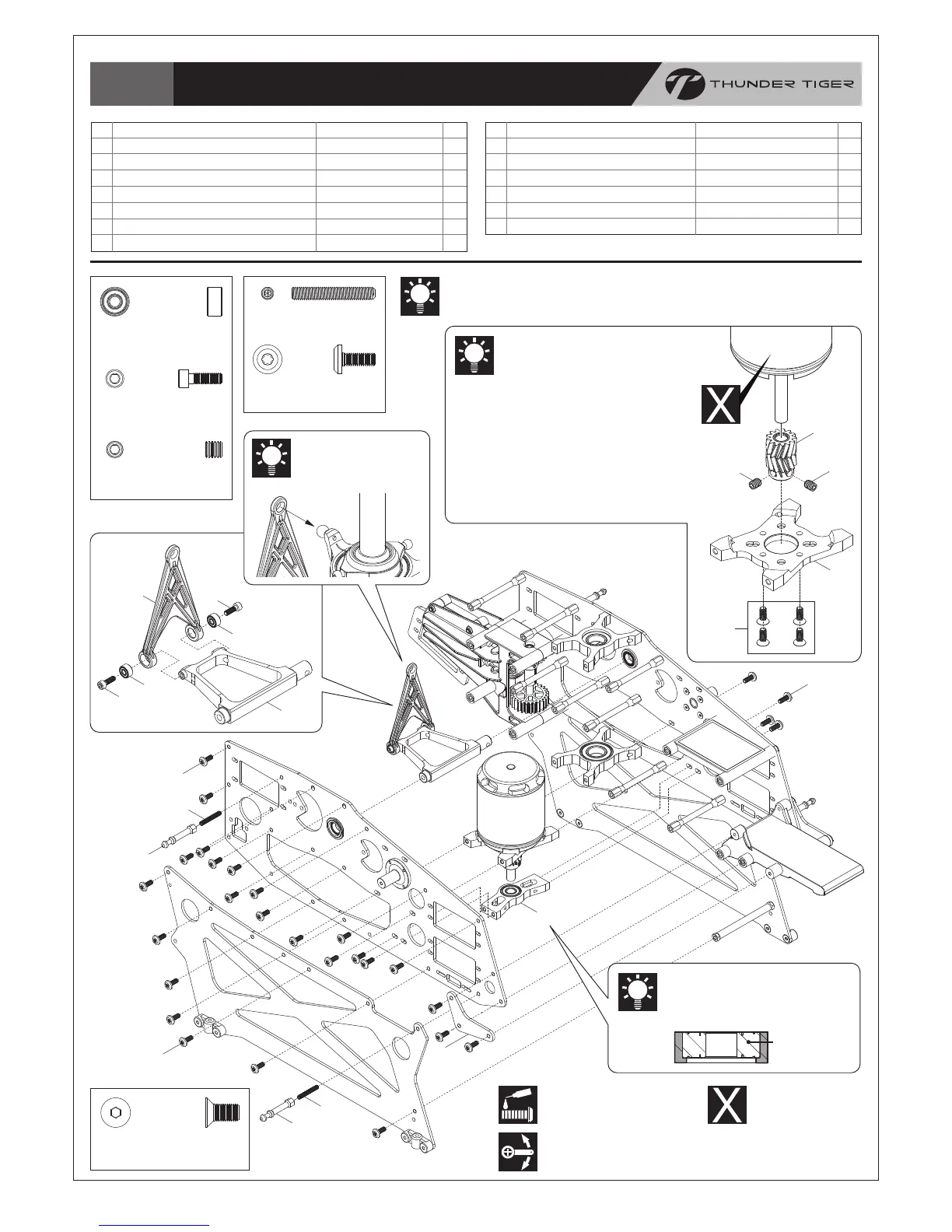

Main Frame / 本體組裝
Bag D
No.
8
9
10
11
12
13
QtyDescription 名稱
馬達齒輪固定座
機身固定柱(32mm)
無頭內六角螺絲, M3x20
接收機承座補強板
星型低頭螺絲, M3x8
沈頭內六角螺絲, M4x8
MOTOR PINION BLOCK
CANOPY RETAINING POST(32mm)
SET SCREW, M3x20
RADIO TRAY BRACKET
TORX SCREW, M3x8
SINK SOCKET SCREW, M4x8
1
2
2
1
29
4
The flat surface of the Block
always goes toward the top.
軸承座上平面一側朝上。
Bearing / 軸承
Block / 固定座
Side View
側視圖
(12)
(11)
(9)
(8)
(10)
(12)
(1)
(2)
(4)
(3)
(3)
(4)
(10)
(9)
(12)
TORX SCREW, M3x8
星型低頭螺絲, M3x8
SET SCREW, M3x20
無頭內六角螺絲, M3x20
SET SCREW, M4x4
無頭內六角螺絲, M4x4
BEARING, d2.5xD7xW3.5
滾珠軸承, d2.5xD7xW3.5
SOCKET SCREW , M2.5x8
內六角螺絲, M2.5x8
Applicable to a M4x30mm, M4x25mm, or
M3x25mm motors with 4 setting screws
installation. 6.0mm/0.236” diameter
motor shaft as standard and 38mm/1.496”
long shaft is recommended.
可適用M4x30mm, M4x25mm或M3x25mm
鎖固孔位馬達。原廠馬達齒及馬達齒輪固定座
可裝配6.0mm/0.236” 軸心馬達，建議馬達軸
心長度為38mm/1.496”。
(5)
(7)
(6)
(13)
(6)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Apply threadlocker
使用螺絲防鬆膠
Must be purchased
separately
改裝品需另購
Ensure smooth, non-binding movement when assembling
確認組件靈活度
The larger hole goes
toward the swashplate.
較大孔面朝十字盤。
SINK SOCKET SCREW, M4x8
沈頭內六角螺絲, M4x8
