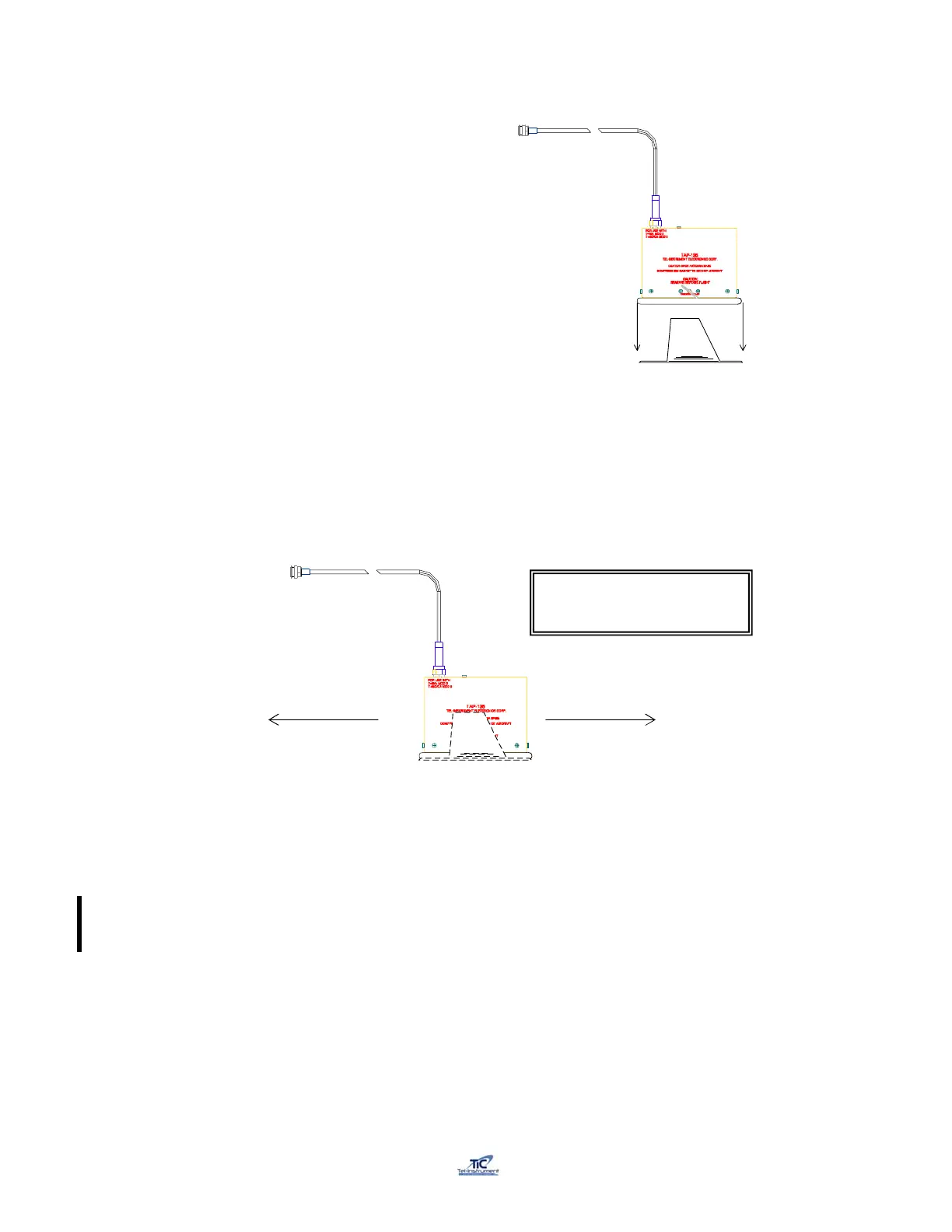

TAP-200 Placement
Figure 2-6
TAP-200 Antenna Adjustment
Figure 2-7
.
8. Proceed with Transponder testing as outlined in paragraph 2.12 or 2.13
Center the TAP-200 as close to center
as possible for the style of antenna
being tested. If inaccurate results
occur, reposition the coupler slightly
forward or back and check for a snug
flush fit until accurate measurements
are displayed. Due to the many styles
of antennas available, adjustments
may be necessary.
Power, Receiver, Freq
54 dB -77 dB 1090.0
