TIMBERWOLF
TW 150VTR
49

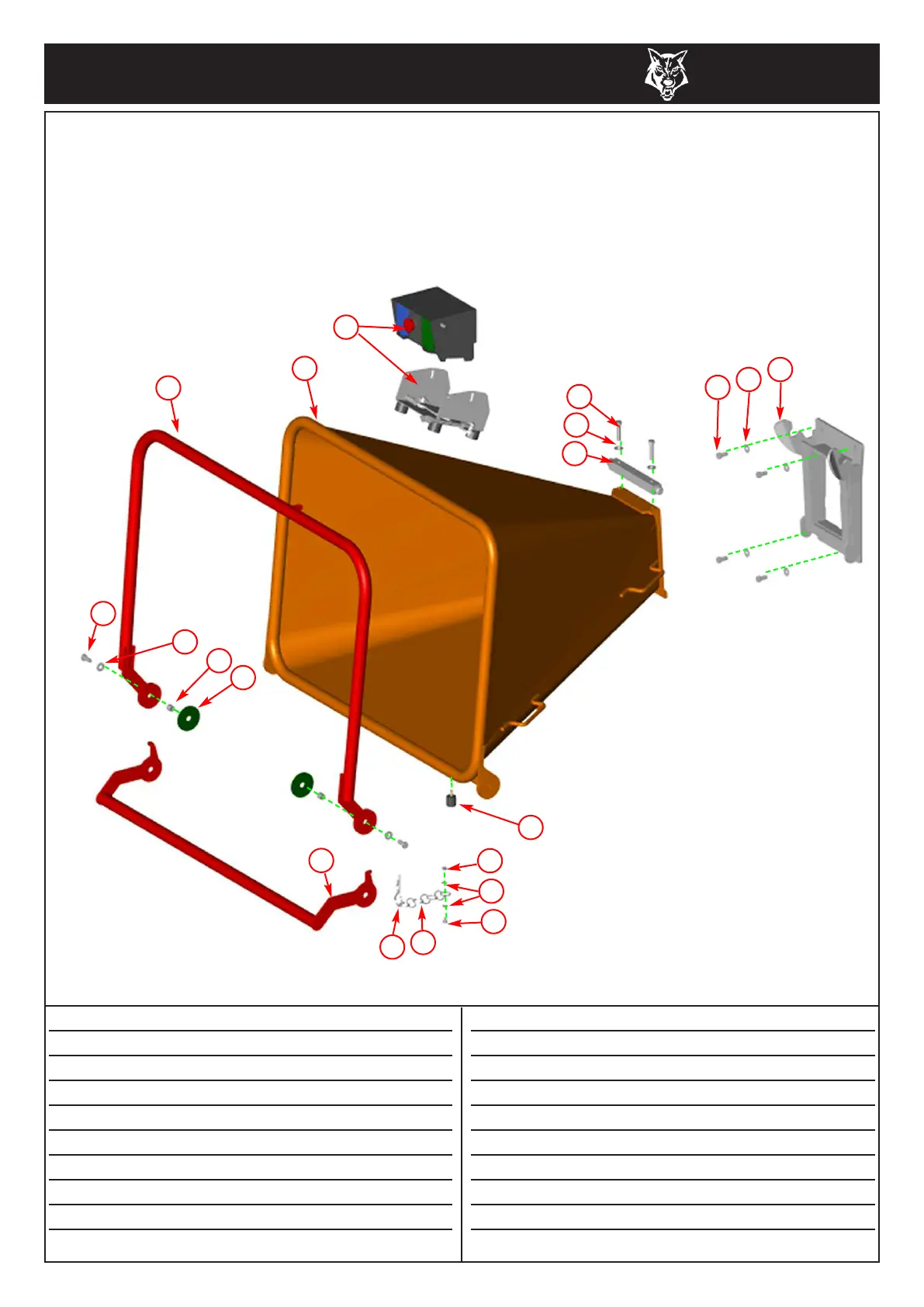

FUNNEL (LOW)
1
Date Last Modified:8th Nov 12
Item Part No Part Name Q’ty
1 See pages 38/39 Control Box 1
2 3008FO Funnel 1
3 18507FR Safety Bar 1
4 0431 M12/40 Bolt 2
5 0704 M12 C Washer 8
6 4116M Spacer Tube 2
7 1599 Bearing Washer 2
8 18173 M12/55 Bolt 2
9 4282MS Quick Release Pivot Bar 1
Item Part No Part Name Q’ty
10 0277 M12/25 Bolt 4
11 4283FO Quick Release Mechanism 1
12 17421 AV Mount 1
13 18506FR Underslung Safety Bar 1
14 0142 M6 T Nyloc Nut 1
15 0709 M6 C Washer 2
16 1236 M6/20 Bolt 1
17 4105 Chain 40 x 16 x 3.8 (7 links) 1
18 4094 R Clip 1
2
3
7
6
5
4
8
5
9
10
5
11
12
13
13
14
15
16
17
