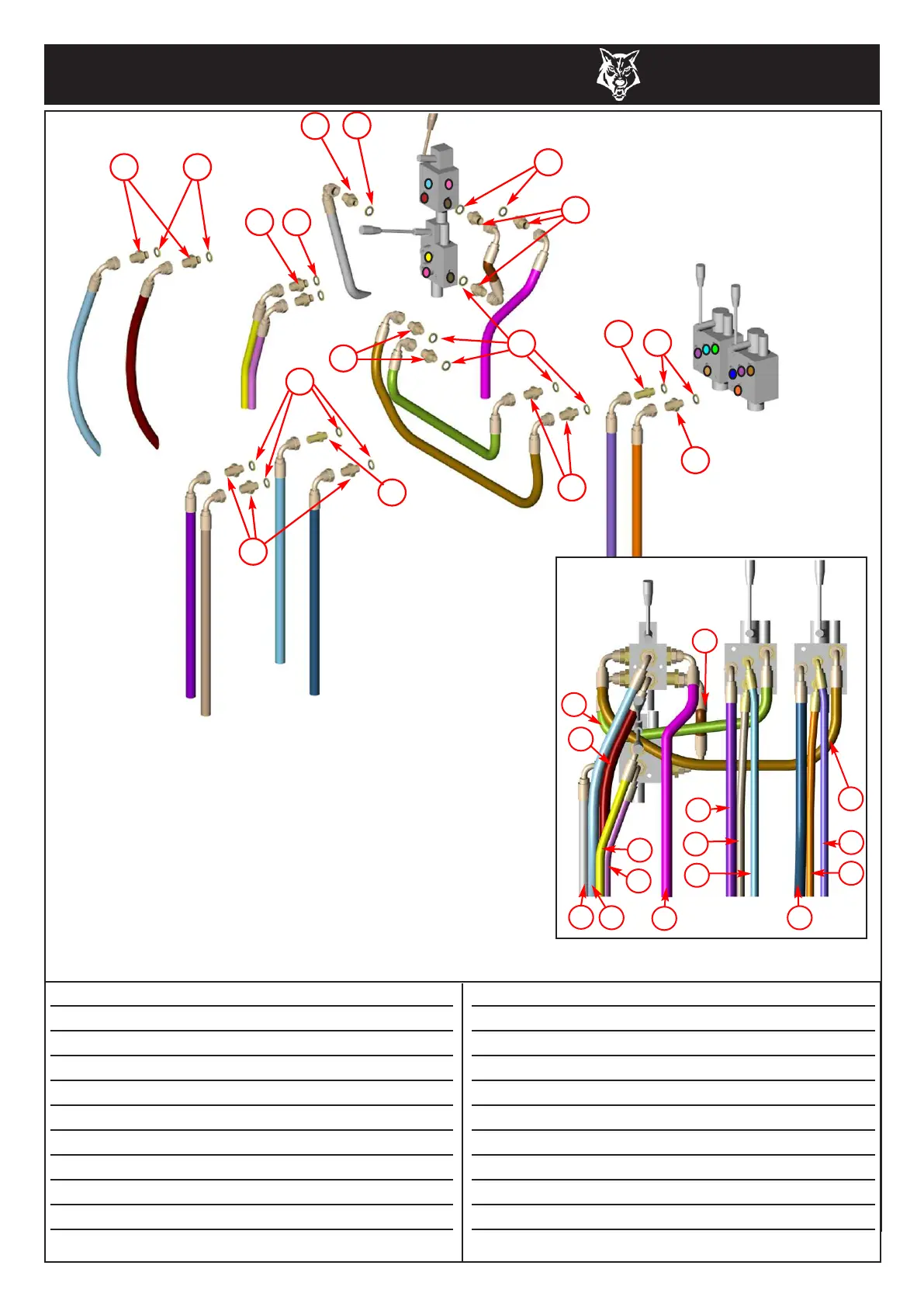

Item Part No Part Name Q’ty
1 0161 3/8” - 3/8” Adapter 5
2 0828 3/8” Bulk Head Adapter 2
3 0396 3/8” Dowty Washer 18
4 0026 3/8” - 1/2” Adapter 9
5 0033 1/4” - 3/8” Adapter 2
6 3097 1/2” Hose, 6-way to 4-way valve 1
7 3095 1/2” Hose, 6-way to prop. valve 1
8 3099 1/2” Hose to pump front 1
9 3082 1/4” Hose, cylinder feed 1
10 3083 1/4” Hose, cylinder return 1
Item Part No Part Name Q’ty
11 3084 3/8” Hose to manifold rear 1
12 4000 1/2” Hose to pump rear connection 1
13 3091 3/8” Hose to manifold 1
14 3089 3/8” Hose to bottom of track motor 1
15 3088 3/8” Hose to top of track motor 1
16 4240 1/2” Hose to DCV port ‘P’ 1
17 3096 1/2” Hose, 6-way to prop. valve 1
18 3087 3/8” Hose to top of track motor 1
19 3086 3/8” Hose to bottom of track motor 1
20 3090 3/8” Hose to manifold 1
Date Last Modified: 3rd May 05
1
3
4
3
5
3
3
4
3
3
4
1
3
1
2
2
4
11
9
10
16
12
14
15
18
19
20
8
13
17
6
7
HYDRAULICS (1)
