Timberwolf TW 150VTR - Page 53

TIMBERWOLF
TW 150VTR
52
Item Part No Part Name Q’ty
1 4059 1/4” Banjo Bolt 4
2 0395 1/4” Dowty Washer 8
3 4046 Hydraulic Cylinders 2
4 4058 1/4” Tee Adapter 2
5 0396 3/8” Dowty Washer 10
6 0033 1/4” - 3/8” Adapter 2
7 4060 3/8” Banjo Bolt 2
8 3086 3/8” Hose, RH lower trk motor - valve 1
9 3081 1/4” Hose, LH track retract 1
Item Part No Part Name Q’ty
10 4031 1/4” Hose, LHtrack extend 1
11 3080 1/4” Hose, RH track retract 1
12 4032 1/4” Hose, RH track extend 1
13 3083 1/4” Hose, trk extend feed 1
14 3082 1/4” Hose, trk retract feed - valve 1
15 3088 3/8” Hose, LH upper trk motor - valve 1
16 3089 3/8” Hose, LH lower trk motor - valve 1
17 3087 3/8” Hose, RH upper trk motor - valve 1
Date Last Modified: 21st Nov 05
1
2
3
4
5
6
12
9
10
11
13
14
16
15
8
17
7
5

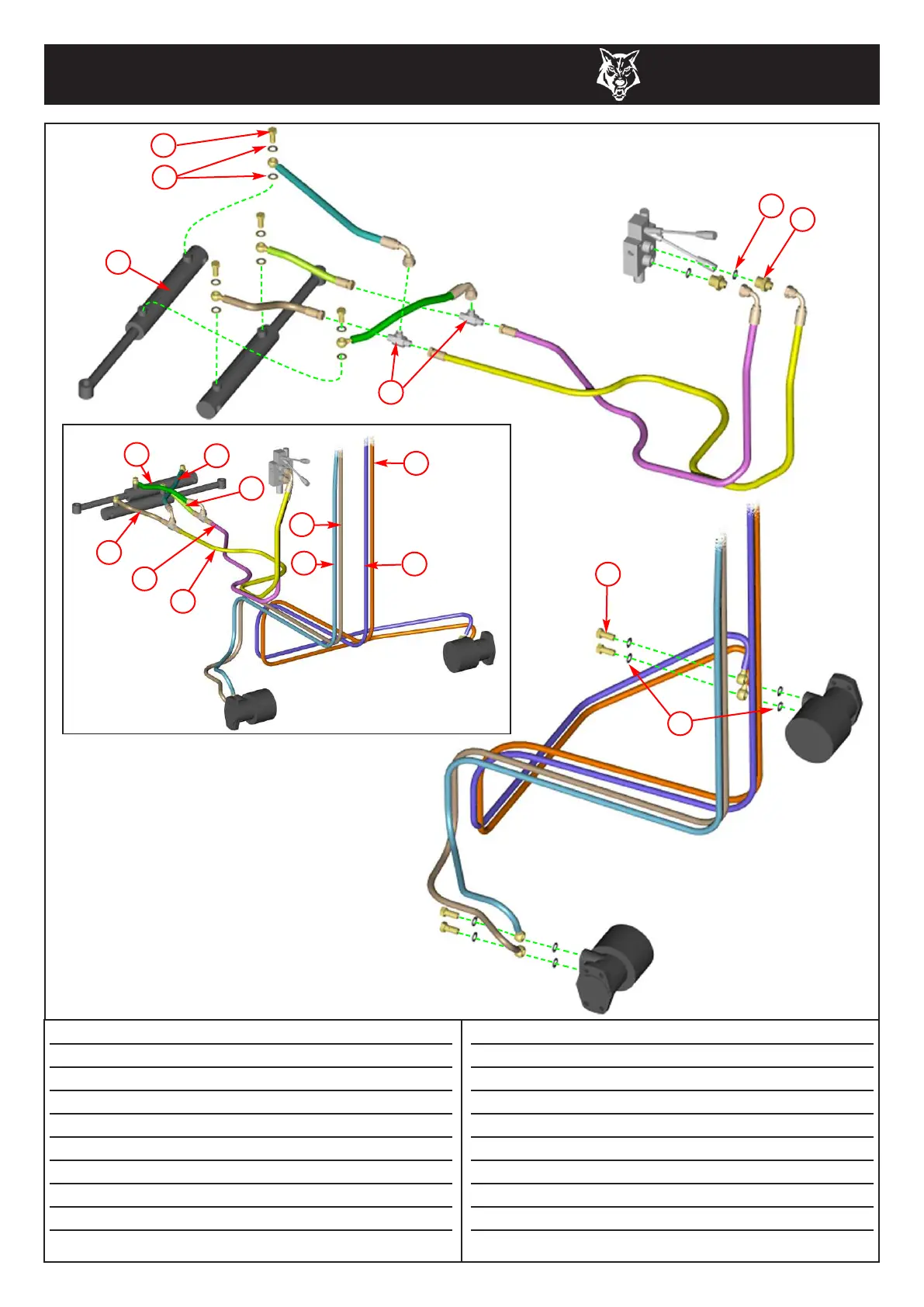

HYDRAULICS (3)
