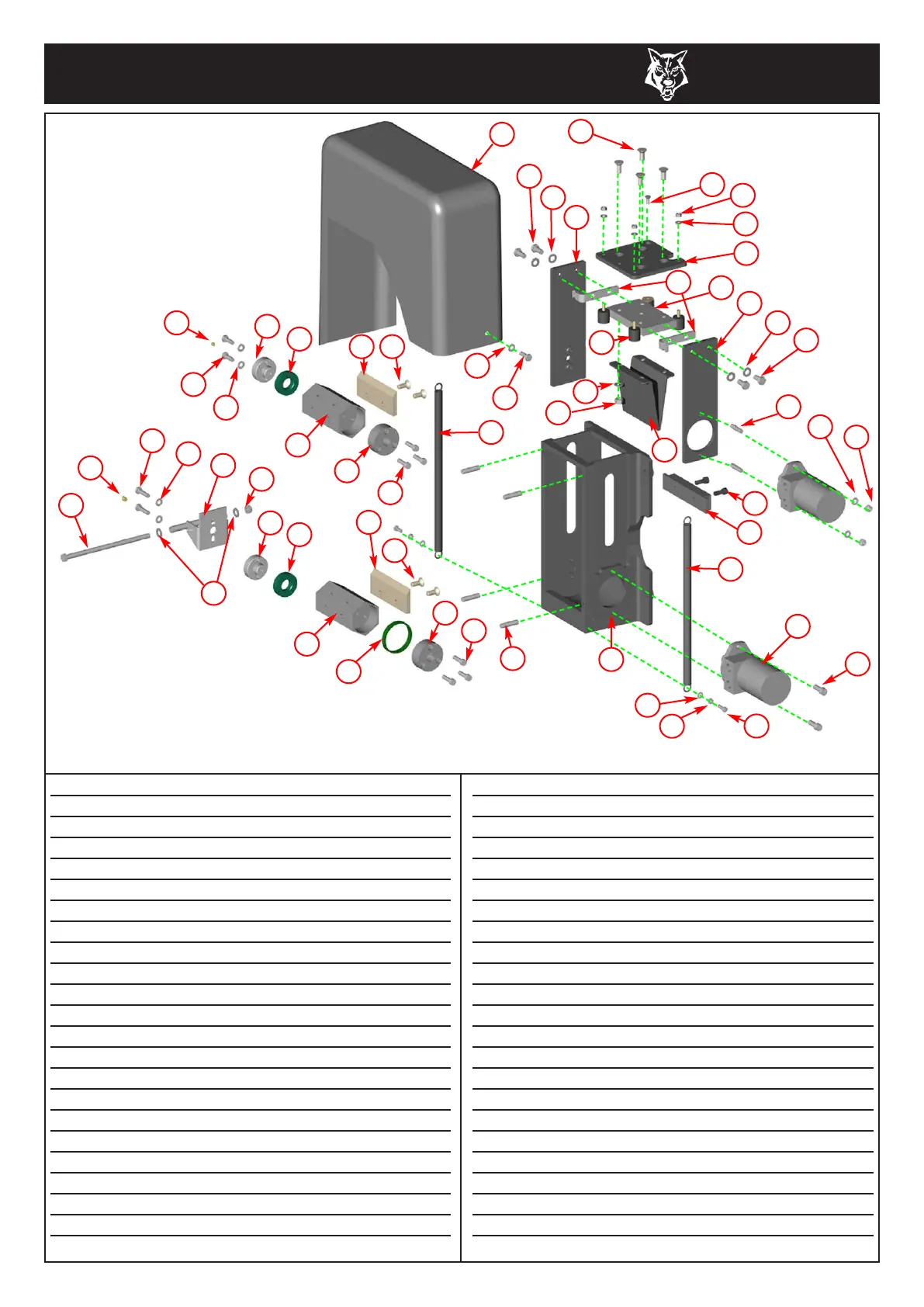

Timberwolf TW 150VTR - Page 54

TIMBERWOLF
TW 150VTR
53
Item Part No Part Name Q’ty
1 0672 Rollerbox Cover 1
2 18316 M12/50 Csk Bolt 4
3 0481 M8 T Nyloc Nut 3
4 18027M Plate Top Damper Carrier 1
5 0348 M8/20 Csk Socket 1
6 1962FMS Block TopDamped 1
7 18024M Drive Side Plate 1
8 0429 M12/35 Bolt 4
9 0702 M12 A Washer 10
10 18025 Non Drive Side Plate 1
11 1162 Motor Studs 2
12 18028FS Bracket Spring Hanger 2
13 18070 Roller Box Spring 2
14 0305 M10/25 Caphead 2
15 1768 AV Mount 30x30 4
16 0701 M10 A Washer 2
17 0382 M10/30 Bolt 4
18 1361M Drive Spline 1
19 4345 M10 P Nyloc Nut 2
20 2757 Bush Bearing Spline 1
21 0103MH Anvil 1
22 0228M Roller Box 1
Item Part No Part Name Q’ty
23 0985 Straight Grease Nipple 1
24 0986 45
o
Grease Nipple 1
25 0055 Bearing Boss 2
26 0788 Plastic Bush 2
27 1362M Roller Body 2
28 0325M Roller Blade 12
29 0428 M12/30 Csk Soc. 24
30 4100M Spline 6B Retro Bottom 1
31 4013 Rotor Guard 1
32 0350 M8/25 Bolt 2
33 4068 M10/40 Cap Head Bolt 8
34 0839 M10 C Washer 3
35 0534FS Cover Bracket 1
36 0045 M12 T Nyloc Nut 5
37 0319 M12/220 Bolt 1
38 0356 Funnel Studs M12/50 4
39 2982B Motor 2
40 0476 M8 Plain Nut 2
41 1985 M12/30 Caphead 2
42 0711 M8 A Washer 5
43 0360 M10/25 Bolt 1
Date Last Modified: 16th Sept 10
27
2928
1
8
9
10
2
7
9
8
14
11
16
4
12
15
34
43
9
42
32
19
16
41
21
22
17
23
24
33
34
35
37
36
25
26
25
26
20
38
27
18
33
13
28
29
33
13
3
42
6
30
39
40
x6
x6
5
x4
9
36
31
ROLLER BOX
