TIMBERWOLF
TW 150VTR
54

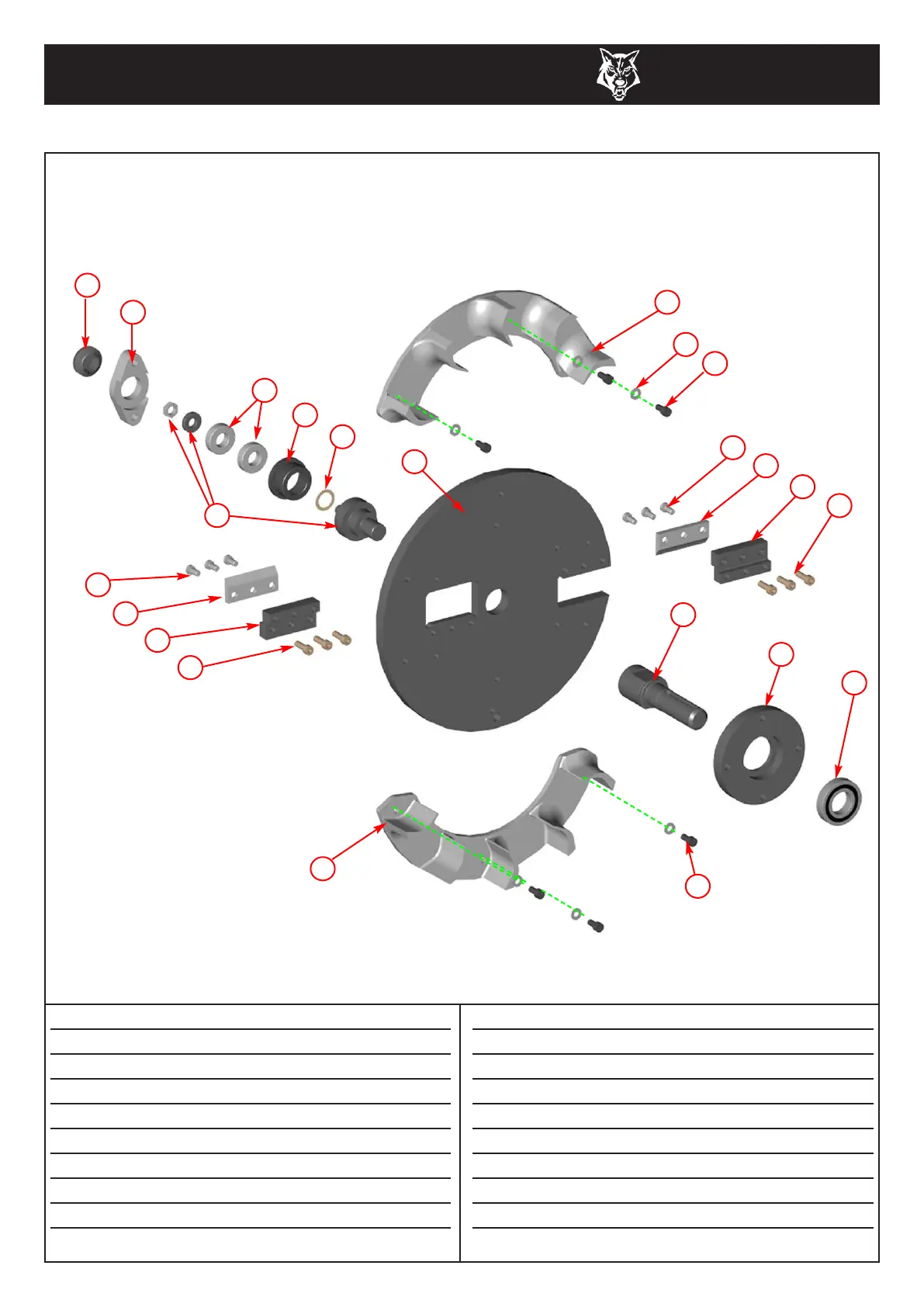

ROTOR
Item Part No Part Name Q’ty
1 0959 Plastic Cap 1
2 0884MS Bearing Housing Front 1
3 18479K Rotor Nose Shaft Kit 1
4 0880M Rotor 1
5 0491 Bearing 6205 2
6 0883MCB Bearing Cup 1
7 0796 20 Thou Shim As Req’d
8 0701 M10 AWasher 6
9 0900 M10/20 Star Cap Screw 6
Item Part No Part Name Q’ty
10 083MH Cutter Blade 4” 2
11 18275M Blade Pocket 2
12 0386 M10/30 Cap Screw 6
13 1571 Fan Section 2
14 0386 M10/30 Caphead 6
15 18912M Rear Shaft 1
16 4063MCB Bearing Housing Rear 1
17 0495 Bearing 6208 1
Date Last Modified: 10th Sept 09
1
2
3
9
10
11
12
5
6
4
13
15
16
14
13
17
9
10
12
11
14
7
8
