Timberwolf TW 150VTR - Page 56

TIMBERWOLF
TW 150VTR
55

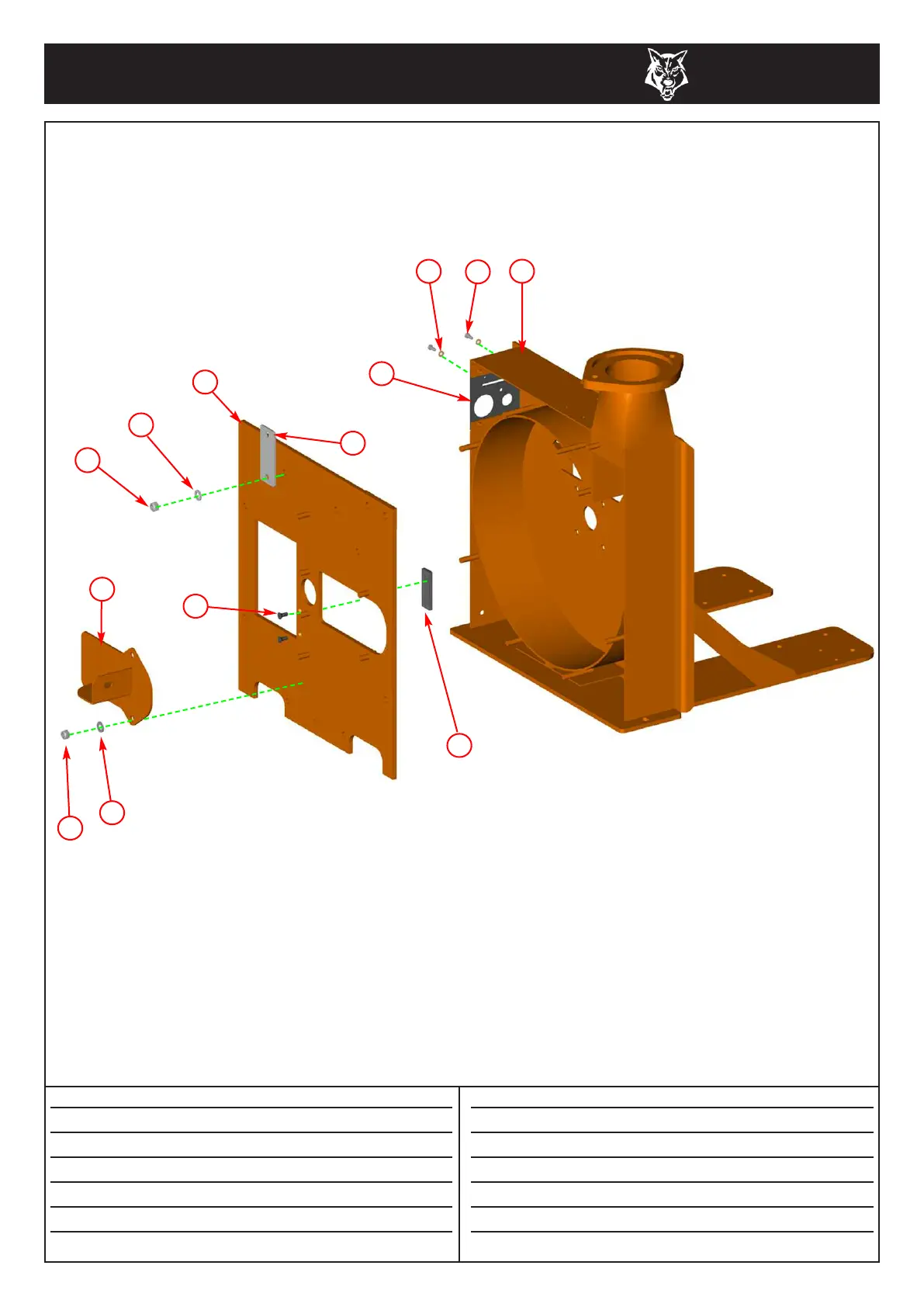

ROTOR HOUSING
Item Part No Part Name Q’ty
1 18436FO Rotor Housing 1
2 0438 M6/16 Pozi Pan 4
3 0709 M6 C Washer 4
4 1758S Control Panel 1
5 1267FO Front Plate 1
6 0702 M12 A Washer 15
Item Part No Part Name Q’ty
7 0045 M12 T Nyloc Nut 15
8 0355 M8/16 C/Sunk Bolt 2
9 1268FO Access Cover 1
10 18023PS Guard Stand-Off Plate 1
11 0101MH Anvil Vertical 1
Date Last Modified: 24th Jan 08
5
1
2
3
4
6
7
8
9
7
6
11
x13
x2
x4
10
