2225mm (1365mm with discharge removed)
2815mm (with tray and step up) 3550mm
(with tray and step down)
1302mm (tracks out)
1120mm (tracks in)
812 (tracks in, funnel
removed)

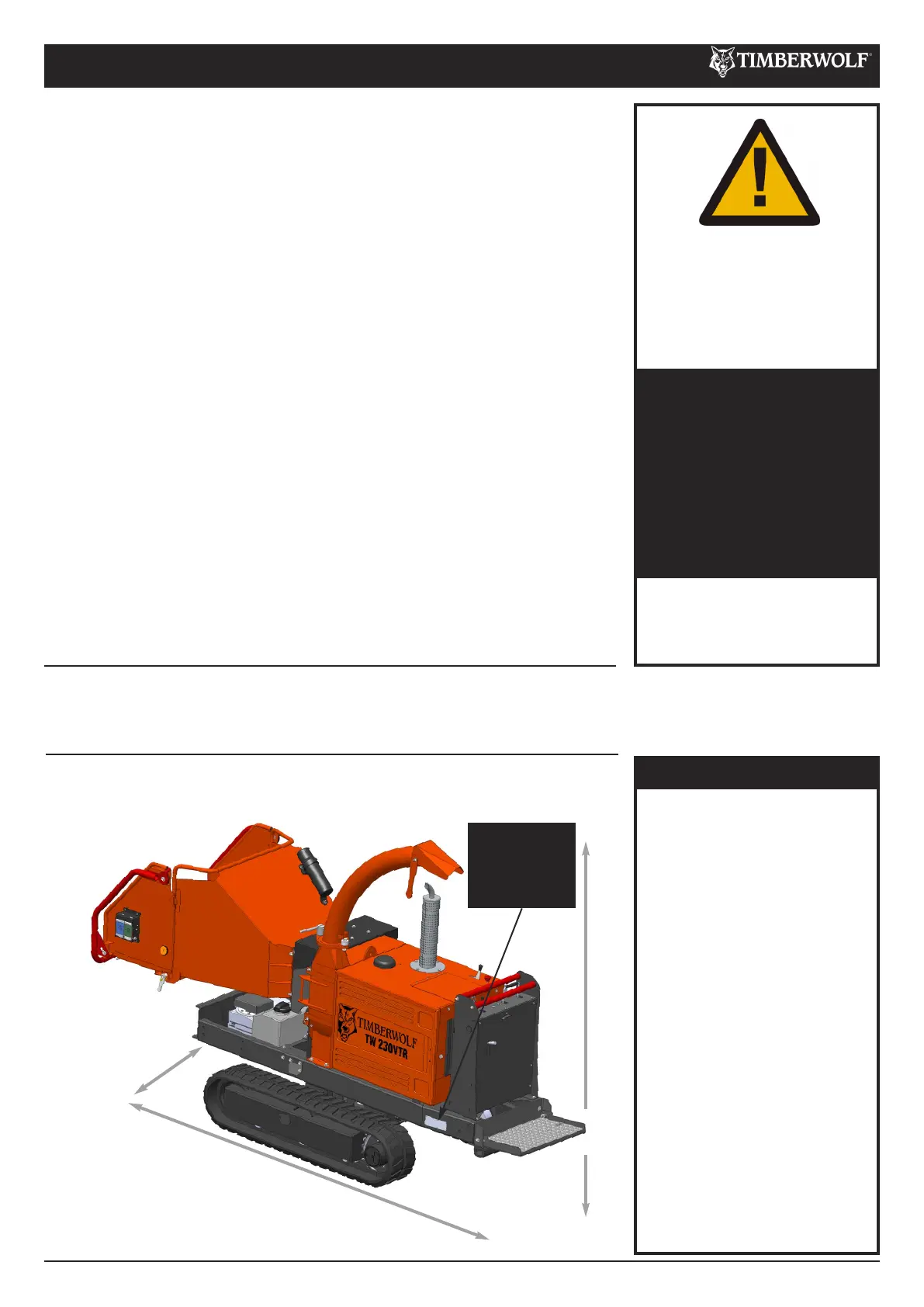

The Timberwolf TW 230VTR is designed to chip solid wood material up to 160mm
in diameter and capable of chipping over 5 tonnes of brushwood per hour.
PURPOSE
DIMENSIONS
TW 230VTR
2 / 65
INTRODUCTION
C190-0113 01.07.2019 Rev: 4.0
Thank you for choosing Timberwolf. Timberwolf chippers are designed to give safe
and dependable service if operated according to the instructions.
IMPORTANT HEALTH AND SAFETY INFORMATION
Before using your new chipper, please take time to read this manual. Failure to do
so could result in:
- personal injury
- equipment damage
- damage to property
- 3rd party injuries
This manual covers the operation and maintenance of the Timberwolf TW 230VTR.
All information in this manual is based on the latest product information available
at the time of purchase.
All the information you need to operate the machine safely and effectively is
contained within pages 3 to 12. Ensure that all operators are properly trained for
operating this machine, especially in safe working practices.
Timberwolf's policy of regularly reviewing and improving their products may
involve major or minor changes to the chippers or their accessories. Timberwolf
reserves the right to make changes at any time without notice and without
incurring any obligation.
Due to improvements in design and performance during production there may be,
in some cases, minor discrepancies between the actual chipper and the text in this
manual.
The manual should be considered an important part of the machine and should
remain with it if the machine is resold.
CAUTION or WARNING
BE AWARE OF THIS SYMBOL
AND WHERE SHOWN,
CAREFULLY FOLLOW THE
INSTRUCTIONS.
THIS SYMBOL INDICATES
IMPORTANT SAFETY
MESSAGES IN THIS MANUAL.
WHEN YOU SEE THIS
SYMBOL, BE ALERT TO THE
POSSIBILITY OF INJURY TO
YOURSELF OR OTHERS AND
CAREFULLY READ THE
MESSAGE THAT FOLLOWS.
ALWAYS FOLLOW SAFE
OPERATING AND
MAINTENANCE PRACTICES
SPECIFICATION
Serial No. Location.
The serial number
can be found on
the identification
plate located on
the chassis beam.
Engine type:
Kubota 4-cylinder diesel
Maximum power:
26kW (35hp)
Cooling method:
Water cooled
Overall weight:
1280kg (without winch)
Starting method:
Electric
Roller feed:
Twin hydraulic motors
Maximum diameter material:
160mm (6
1
⁄3 ")
Fuel capacity:
36 litres
Hydraulic oil capacity:
15 litres
Material processing capacity:
Up to 5 tonnes/hr
Fuel type:
Diesel
