TW 230VTR
3 / 65

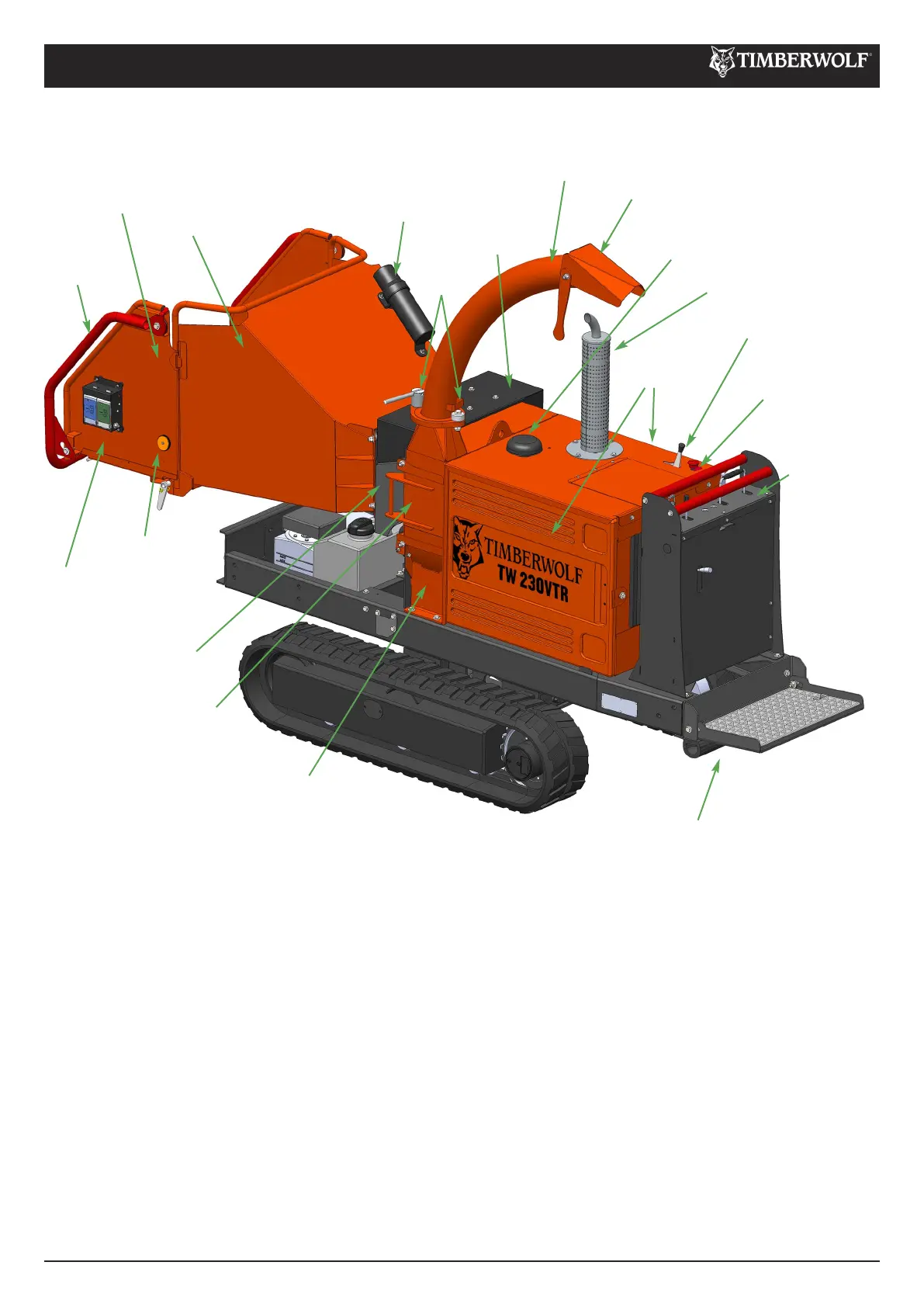

PARTS LOCATOR
C190-0113 01.07.2019 Rev: 4.0
THE TW 230VTR HAS THE FOLLOWING FIXED GUARDS FOR PROTECTION OF THE OPERATOR, CHIPPER
AND ENVIRONMENT:
Roller Box Guard: Protects rotor housing from damage or foreign matter. Protects the user from injuries from •
moving rollers and ejected material during operation.
Hydraulic Motors Guard: Protects hydraulic motors from damage. Protects the user from injuries from heat and •
movement of motor.
Rotor Housing Blade Access: Protects user from rotational parts e.g. cutting blades. The interlocking switch •
disengages the engine when the hatch is opened to stop the chipper running.
Engine Bay Side Panels: Protects the user from rotational parts e.g. belts and pulleys, hot surfaces, and engine •
fluids. Protects machine from ingress of environmental debris.
Guards may be removed for maintenance only, as described in the Service Instruction pages of this manual. Ensure
guards remain in place throughout operation.
SAFETY BAR
FUNNEL
DISCHARGE
BUCKET
DISCHARGE TUBE
CLAMP
NUTS
CONTROL BOX
(each side)
ENGINE BAY SIDE
PANELS
DRIVING PLATFORM
DRIVING
CONTROL
PANEL
ROTOR HOUSING
REFLECTOR
MANUAL
CANNISTER
AIR FILTER
ROTOR HOUSING
BLADE ACCESS
EXHAUST
THROTTLE LEVER
FEED TRAY
ENGINE STOP
SWITCH
ROLLER BOX
GUARD
HYDRAULIC MOTOR
GUARD
