TW 230VTR
4 / 65

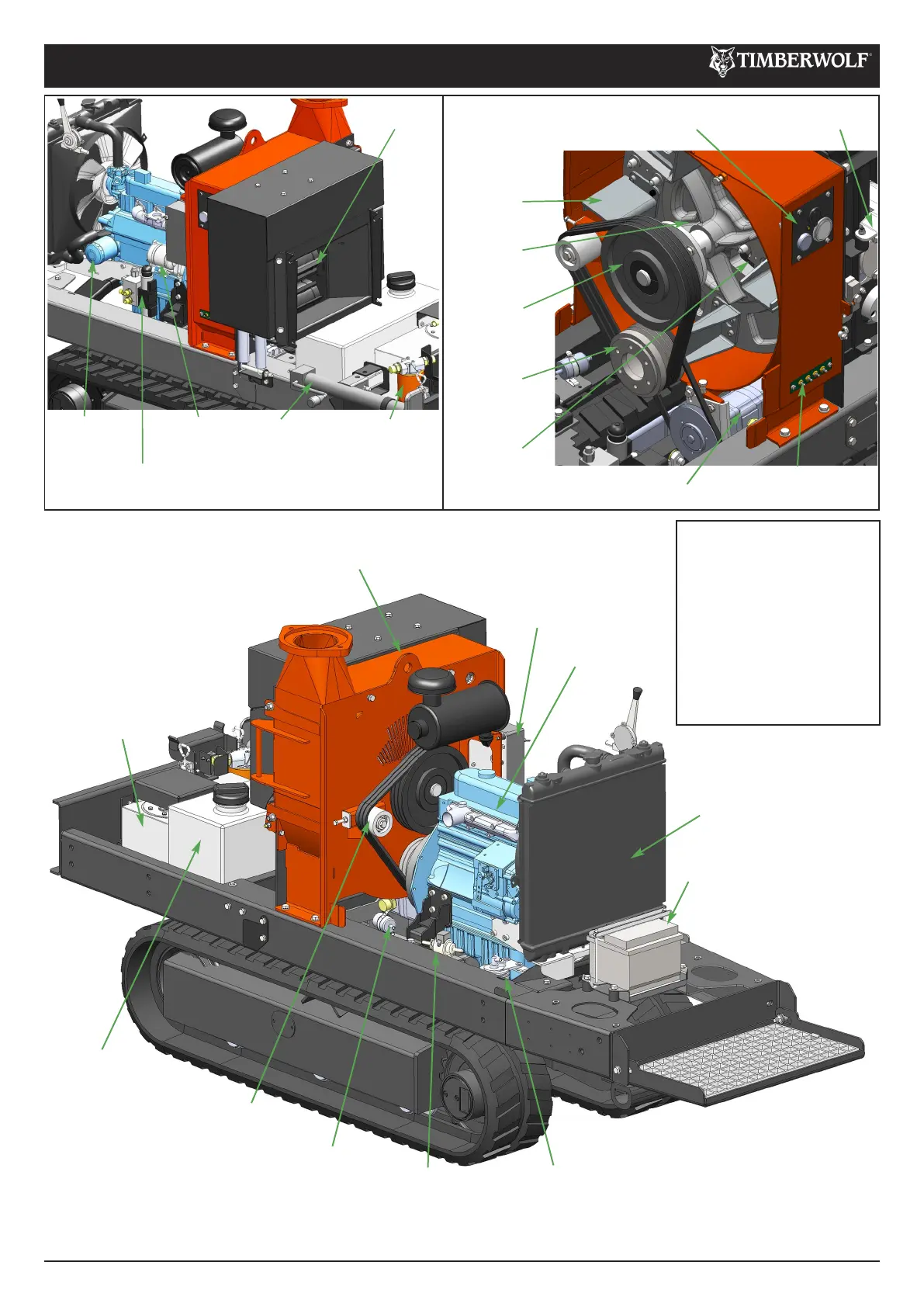

PARTS LOCATOR
C190-0113 01.07.2019 Rev: 4.0
BATTERY
HYDRAULIC TANK
FUEL PUMP
FUEL
FILTER
OIL
FILTER
STARTER
MOTOR
RADIATOR
HYDRAULIC PUMP
ELECTRICAL PANEL
FUEL TANK
BELT TENSION ADJUSTER
IN-LINE FUEL FILTER
DIRECTIONAL CONTROL
VALVE
HYDRAULIC
OIL FILTER
ROTOR
FAN
SECTION
(x4)
ROTOR
PULLEY
DRIVE
PULLEY
CUTTER
BLADE (x2)
GREASING PANEL
JACK
TOP ROLLER SLIDE
CONTROL PANEL
ENGINE BLOCK
ROLLERS
TOOL BOX CONTENTS:
Copper Ease •
Rotor locking tool •
Combination Spanner •
(17mm/19mm)
Ignition Keys x 2 •
Access Cover Keys x 2 •
Keyring•
LIFTING EYE
