Titan 1306 - 13 Parts; Tailwheel Assembly

Titan Implement, LLC 57 1200-1600 Series Rotary Cutters
(423) 334-0012 August 2016
13. Parts
Replacement parts are available from your authorized Dealer Parts Department or from Titan Implement.
The following pages contain a list of serviceable parts for the Titan Implement Rotary cutter.

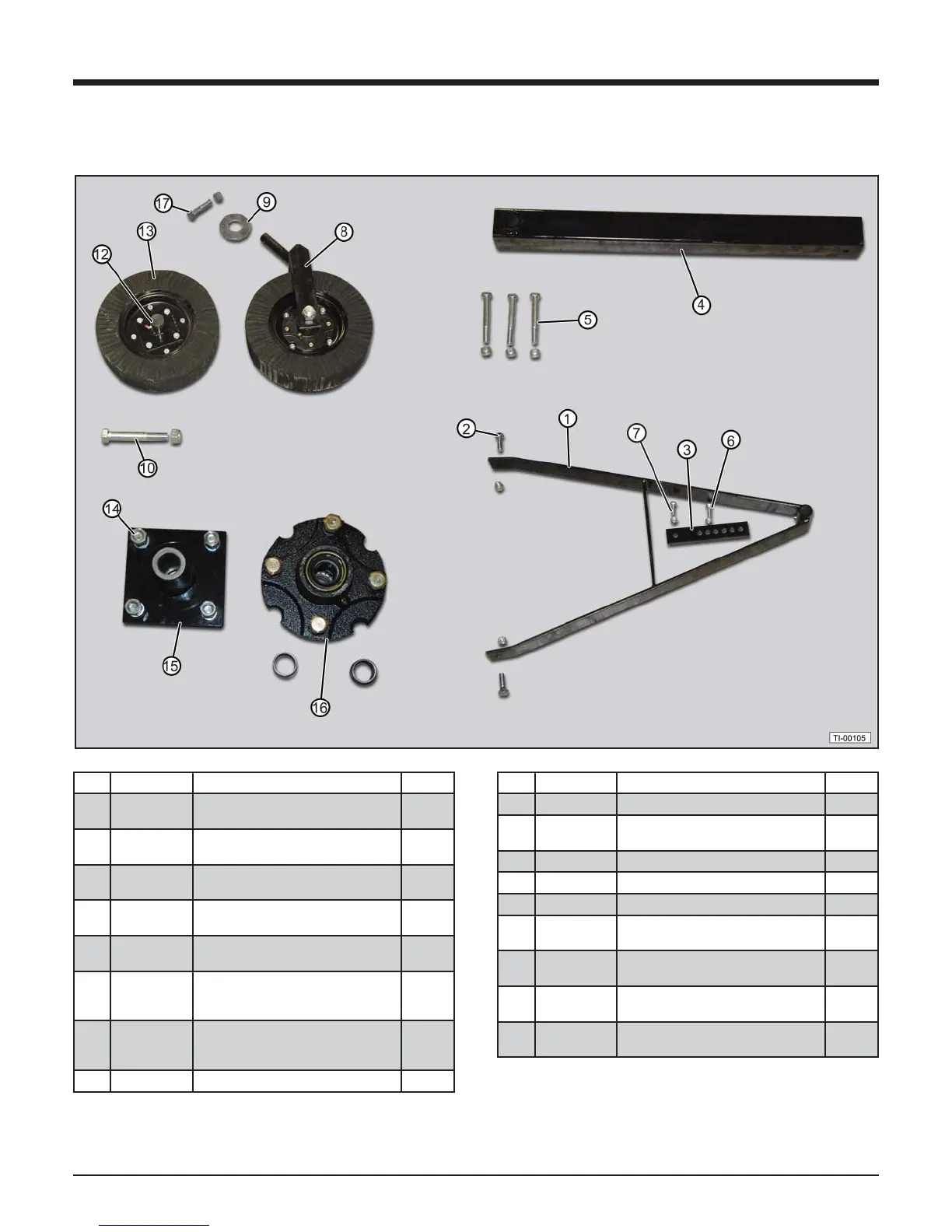

13.1 Tailwheel Assembly
Item Part Number Description Qty.
1 110014
Tailwheel Frame (1405, 1406,
1505, 1506)
1
2 110015
Bolt & Locknut Kit, 5/8-11 x 2”
(1405, 1406, 1505, 1506)
2
3 110016
Tailwheel Adjustment Plate, 7 Hole
(1405, 1406, 1505, 1506)
1
4
150050
120002
Tailwheel Tube (1507, 1600)
Tailwheel Tube (1200, 1300)
1
1
5 120003
Tailwheel Tube Bolt & Locknut Kit,
1/2-13 x 4-1/2” (1200, 1300, 1507)
3
6 110017
Tailwheel Adjustment Top Bolt &
Locknut Kit, 1/2-13 x 1-1/2” (1400,
1505, 1506)
1
7 110069
Tailwheel Adjustment Bottom Bolt
& Locknut Kit, 1/2-13 x 2” (1400,
1505, 1506)
1
8 110018 Tailwheel Fork 1
Item Part Number Description Qty.
9 110019 Tailwheel Tube Flat Washer 1
10 110020
Axle Bolt & Locknut Kit, 1-8 x
7-1/2“
1
11 — —
12 110021 Zerk Fitting 1
13 110022 Laminated Wheel 1
14 110023
Wheel Bolt, Lockwasher & Locknut
Kit, 5/16-18 x 3/4”
1
15 110024
Wheel Hub, Standard, with Studs
(1200, 1300, 1400, 1505, 1506)
1
16 150031
Wheel Hub, Heavy Duty (1507,
1606, 1607)
1
17 110070
Tailwheel Bolt & Locknut Kit,
1/2-13 x 2-1/2”
1
