Titan 1306 - Hitch Assembly

1200-1600 Series Rotary Cutters 58 Titan Implement, LLC
August 2016 (423) 334-0012

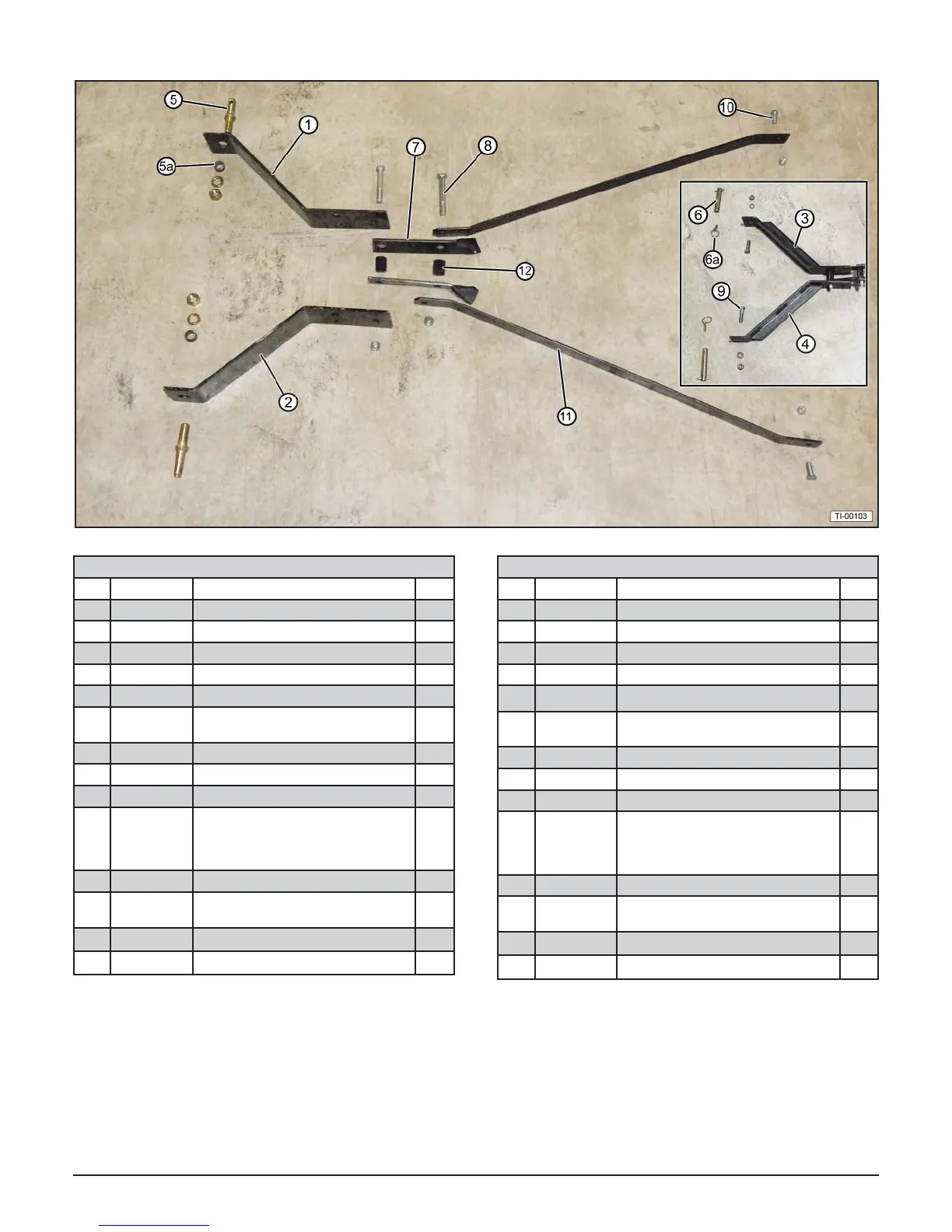

13.2 Hitch Assembly
1200 and 1300 Series Cutters
Item Part Number Description Qty.
1 120004 A-Frame, Left or Right Side 2
2——
3——
4——
5 110032 Lift Pin Kit, CAT l 2
5a 120005
Lift Pin Bushing, 1/2” x 1-1/4” OD x
7/8” ID (1505, 1506)
2
6——
6a — —
7 120006 Knuckle, Wing Style 2
8
110027
110029
A-Frame Knuckle Bolt & Locknut Kit,
3/4-10 x 4-1/2”
A-Frame Knuckle Bolt & Locknut Kit,
5/8-11 x 4-1/2”
1
1
9—— 1
10 110015
Back Brace Rear Bolt & Locknut Kit,
5/8-11 x 2”
2
11 120008
Back Brace, 1/4” X 2” X 44-1/2”
2
12 110030 A-Frame Spacer, 2” 2
1400 Series Cutters
Item Part Number Description Qty.
1 140003 A-Frame, Right Side 1
2 140002 A-Frame, Left Side 1
3——
4——
5 110032
Lift Pin Kit, CAT l
2
5a 120005
Lift Pin Bushing, 1/2” x 1-1/4” OD x
7/8” ID
2
6—— 2
6a — —
7 120006 Knuckle, Wing Style 1
8
140018
140004
A-Frame Knuckle Bolt & Locknut Kit,
3/4-10 x 5” (1400)
A-Frame Knuckle Bolt & Locknut Kit,
5/8-11 x 5” (1400)
9—— 1
10 110015
Back Brace Rear Bolt & Locknut Kit,
5/8-11 x 2”
2
11 110031
Back Brace, 3/8” X 2” X 36”
2
12 110030
A-Frame Spacer, 2”
2
