Titan 1306 - Gearbox

Titan Implement, LLC 63 1200-1600 Series Rotary Cutters
(423) 334-0012 August 2016

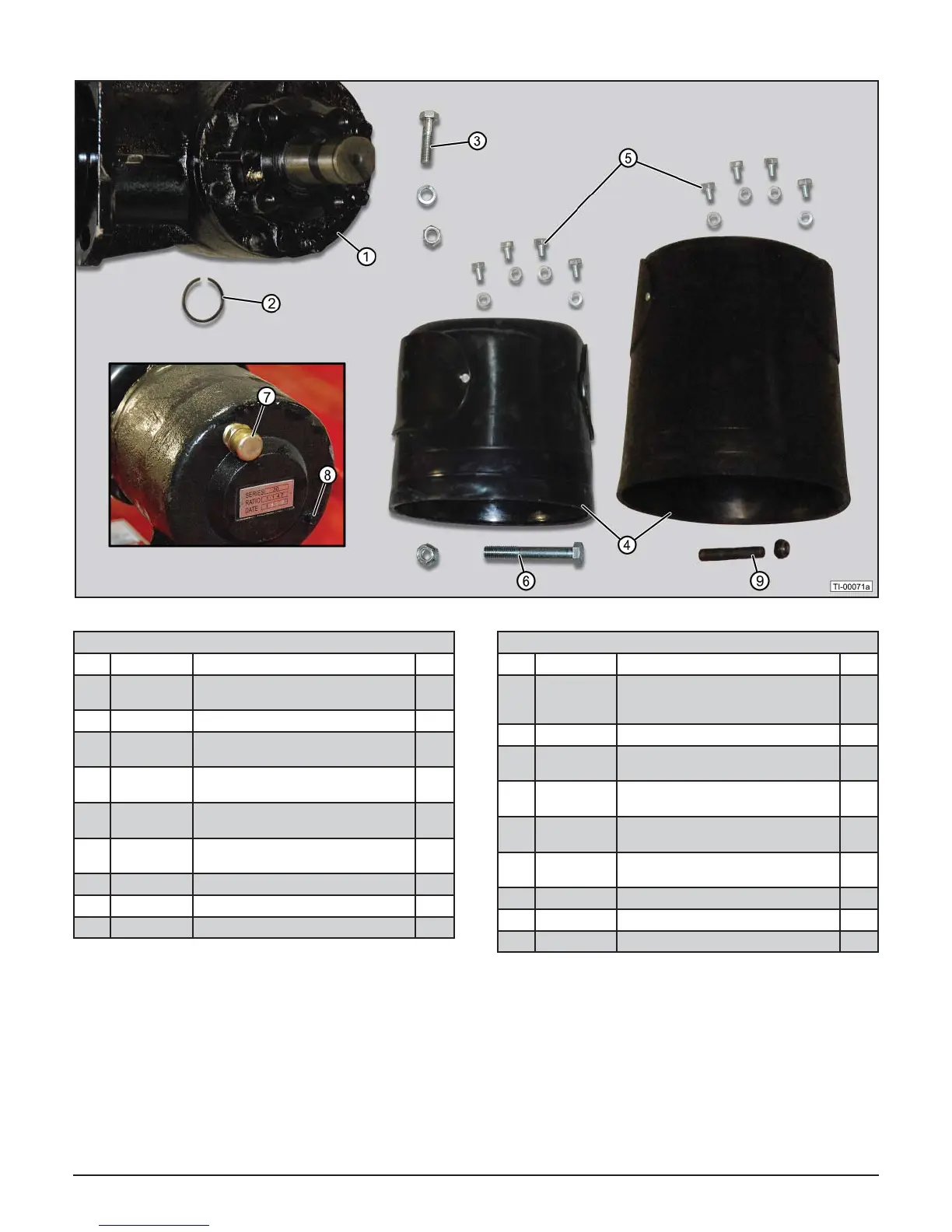

13.5 Gearbox
1200 Series Cutters
Item Part Number Description Qty.
1
110001
120000
Gearbox, Shear Pin, 55 HP
Gearbox, Slip Clutch, 55 HP
1
2 110003 Snap Ring, 1-3/8” 1
3 110004
Gearbox Bolt, Lockwasher & Locknut
Kit, 5/8-11 x 2” (1200)
1
4
110005
120001
Gearbox Shield - Shear Pin
Gearbox Shield - Slip Clutch
1
5 110006
Gearbox Shield Bolt & Lockwasher
Kit, 5/16-18 x 1/2” (4 each)
1
6 110007
Shear Pin Bolt & Locknut Kit, 1/2-13 x
3” Grade 2 (5 each)
1
7 110008 Gearbox Vent Plug 1
8 110009 Gearbox Drain Plug 1
9 190001 Retaining Bolt - Slip Clutch 1
1300 Series Cutters
Item Part Number Description Qty.
1
110002
130000
Gearbox, Shear Pin, 100 HP
Gearbox, Slip Clutch, 100 HP
1
2 110003 Snap Ring, 1-3/8” 1
3 110068
Gearbox Bolt, Lockwasher & Locknut
Kit, 3/4-10 x 3”
1
4
110005
120001
Gearbox Shield - Shear Pin
Gearbox Shield - Slip Clutch
1
5 110006
Gearbox Shield Bolt & Lockwasher
Kit, 5/16-18 x 1/2” (4 each)
1
6 110007
Shear Pin Bolt & Locknut Kit, 1/2-13 x
3” Grade 2 (5 each)
1
7 110008 Gearbox Vent Plug 1
8 110009 Gearbox Drain Plug 1
9 190001 Retaining Bolt - Slip Clutch 1
