5. Assembly
5.1 Tools Required
Tools Required
Wrenches, 1/2”, 5/8”, 3/4”, 1-1/8”, 1-3/8”
3/8” drive ratchet with extension and 1/2” socket
Snap ring pliers (For units equipped with shear bolt driveline)

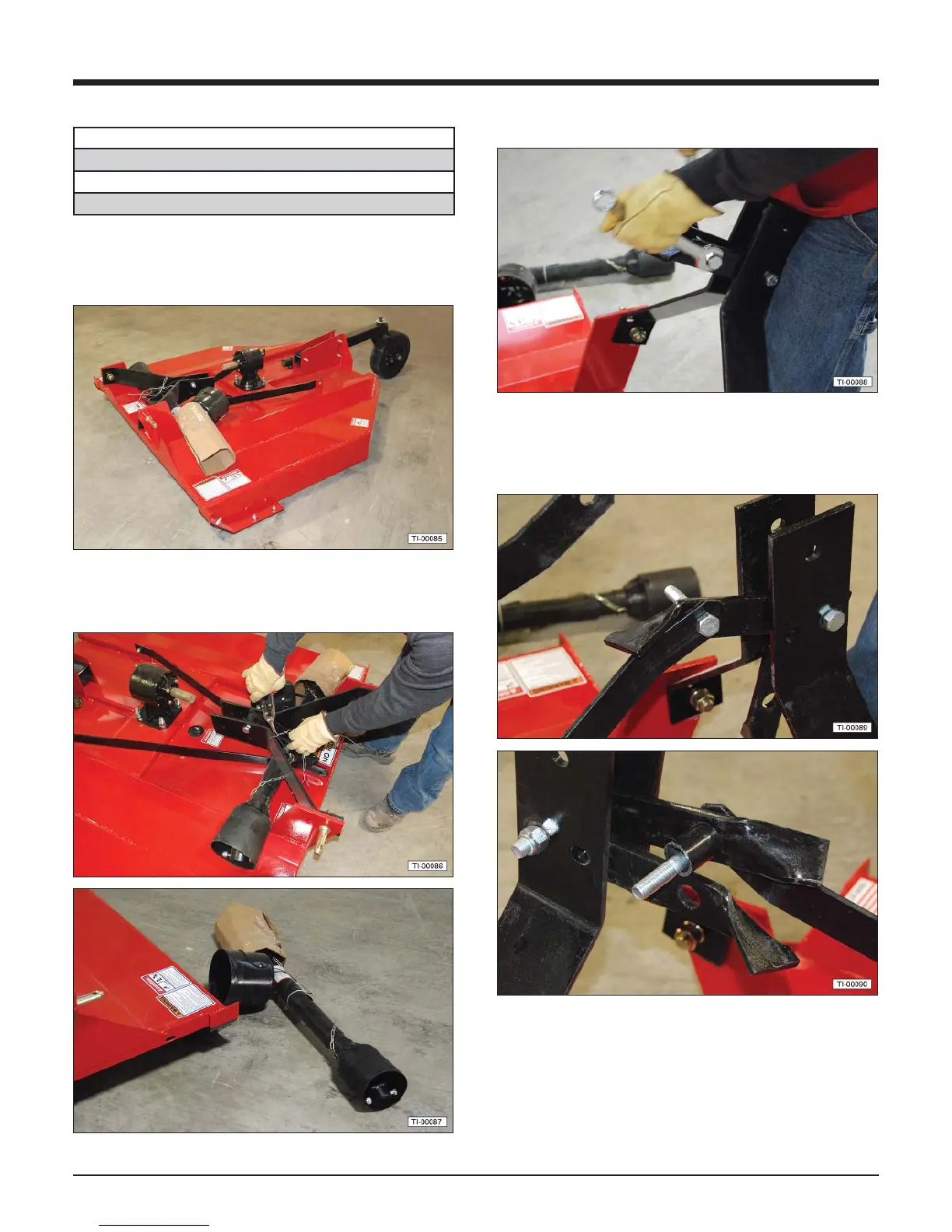

5.2 Assembly Procedure
5. Verify that all parts shown are included. If any parts
are missing, contact your Titan Implement dealer.
6. Cut the wires holding the driveline parts to the
A-frame. Set the driveline aside for now.
7. Stand the A-frame up and remove the 5/8-11 x
4-1/2” bolt, locknut, and spacer on the break link.
8. Position the back braces on the outside of the break
link and reinstall the bolt. Be sure the spacer is in
place.
