TKH KEYPROCESSOR Orion User Manual

18
6.4 Connections
The connection ports on the Orion are described in this section. Options depend on the
application and the method of connection.
Port
Description
A
PRT1
B
Reader 1
C
IO 1
D
Power input
E
Status LED
F
MicroSD slot
G
End of line jumper
H
Stacking connector
I
RS485 and kpSensor bus
J
Reader 2
K
IO 2
L
PRT2
H
E
B
C
A
D
H
F
G
PRT1
E
G
F
H
L
K
J
I
H
PRT2

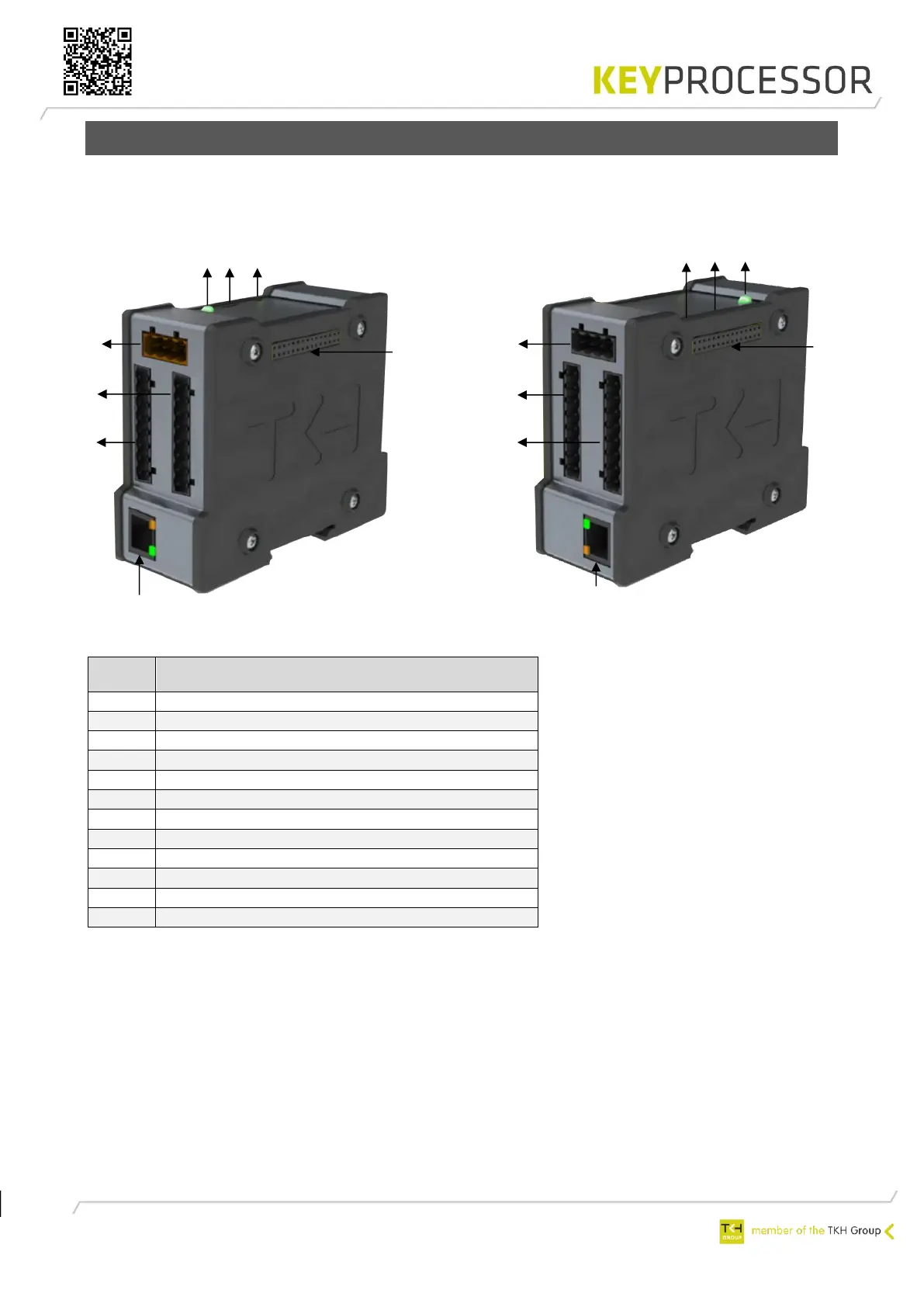

Figure 9: Orion
connections rear
Figure 8: Orion
connections front
