TKH KEYPROCESSOR Orion User Manual

35
Figure
T-568B

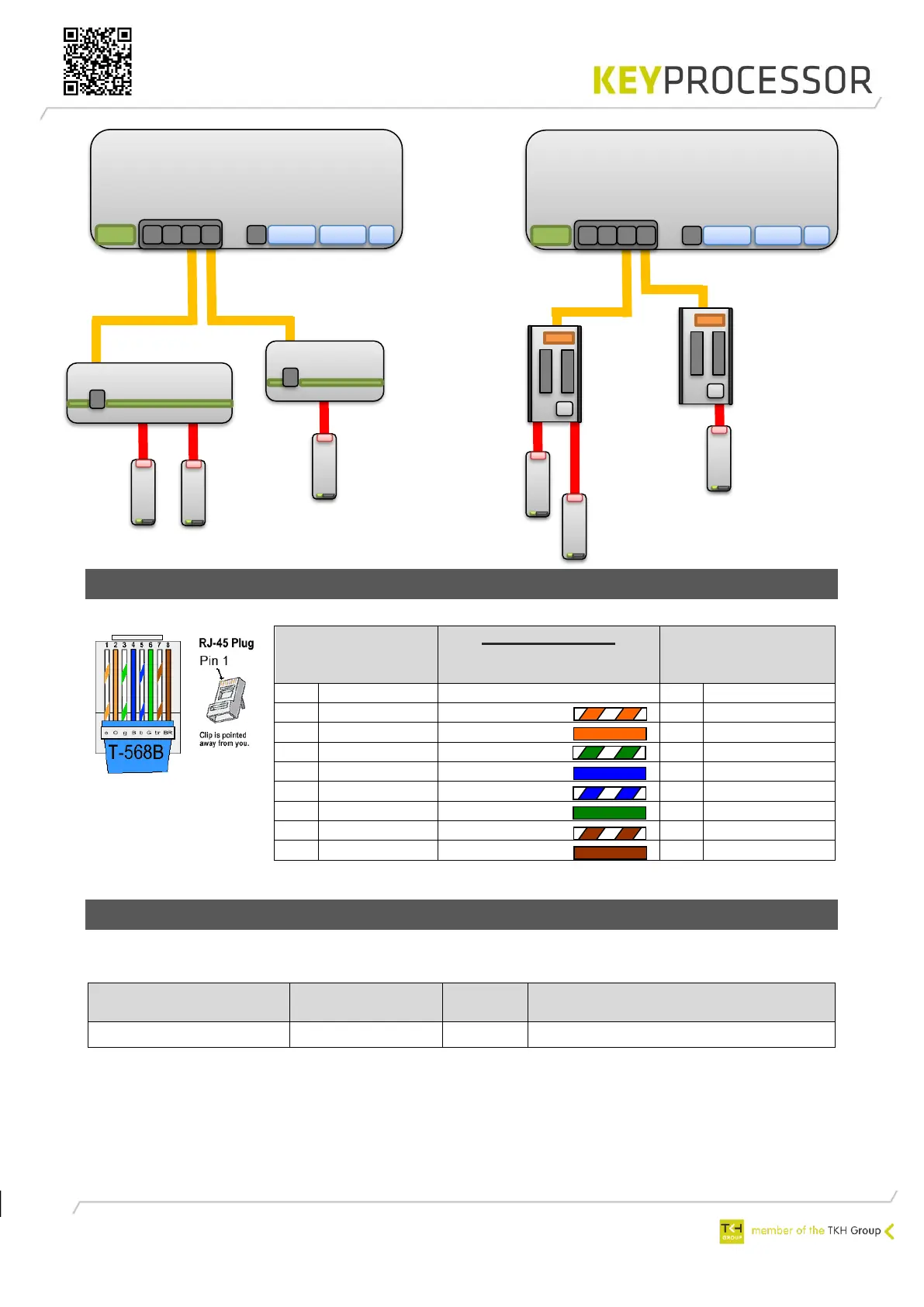

8.1.1 Controller <> Orion PRT1 - RS422
8.1.2 Wiring requirements
The cable recommended for use between the Orion and the network controller is listed below:
Cable
Communication
protocol
Remote
Communication between
UTP/STP Cat≥3
RS422
1200m
Network controller and Orion
iPU-8 PRT 1 – 8
OF
Polyx PRT1– 2
TIA/EIA-568-B
Orion (A)
PRT1
Nr.
Description
Wire color
Nr.
Description
1
RxA
White/orange
1
B
2
RxB
Orange
2
A
3
TxZ
White/green
3
Z
4
+12Vdc
Blue
4
12Vdc
5
Orbit sense
White/blue
5
GND
6
TxY
Green
6
Y
7
GND
White/brown
7
GND
8
GND
Brown
8
GND
RS422
Clock- Data /
Wiegand
Orbit 1
Orbit 2
Polyx
1 2 3
N D
Max. 2
Max. 2
Orion
Clock- Data /
Wiegand
RS42
2
Polyx
1 2 3
N D
A
A
PRT1
PRT1
Figure 25: Polyx with Orbits
Figure 26: Polyx with Orions
