TKH KEYPROCESSOR Orion User Manual

26

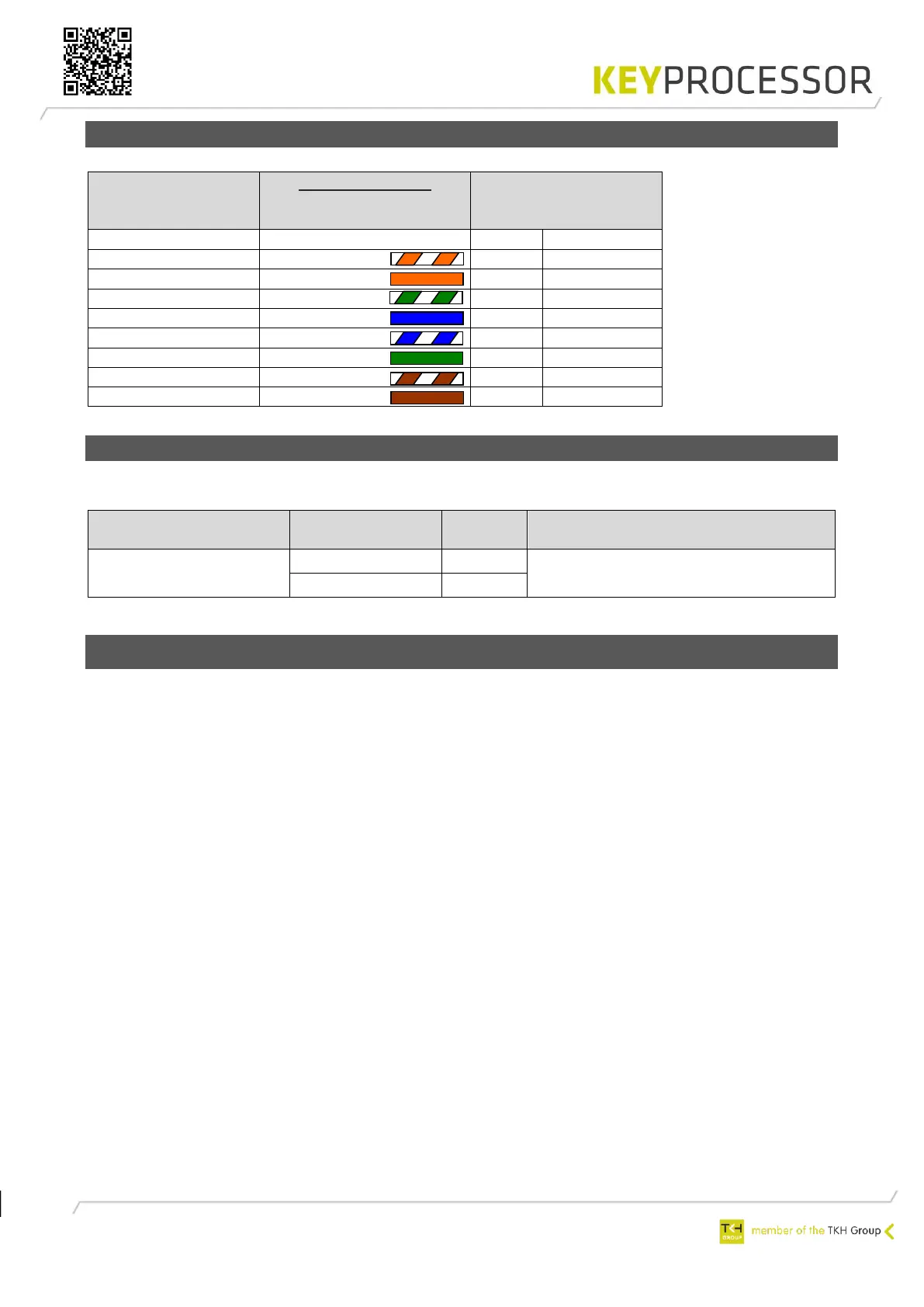

7.2.2.1 Connecting the card reader
7.2.2.2 Wiring requirements
The wiring required between the card reader and the Orion is listed below:
Cable
Communication
protocol
Remote
Communication between
UTP ≥Cat5e
Wiegand
120m
Orion and Sirius i-series card reader
Clock/Data
50m
7.3 Bus configuration with card reader
If an Orion is connected in bus configuration (kpBus):
• communication must be established via the black 4-pole screw connector
• a maximum of eight Orions per kpBus applies
• the maximum cable length is 600m
• the power feed does not run across the kpBus
• every Orion must be provided with its own power feed
• the serial number and location of every Orion must be noted (see section 2.1)
Orion reader &
IO-1/2
TIA/EIA-568-B
Sirius i-serie
Description
Wire color
Sticker
Description
D0
White/orange
3
D0
-
Orange
-
-
D1
White/green
4
D1
+V
Blue
Vcc
Vcc
LED
White/blue
5
LED
-
Green
-
-
C
White/brown
GND
GND
C
Brown
GND
GND
