1). Hang the safety rope to the speed dome and the hook on the bracket as shown in
Figure 2-8.
2). Route the cables of the speed dome through the bracket.
3). Connect the corresponding cables.
Safety Rope

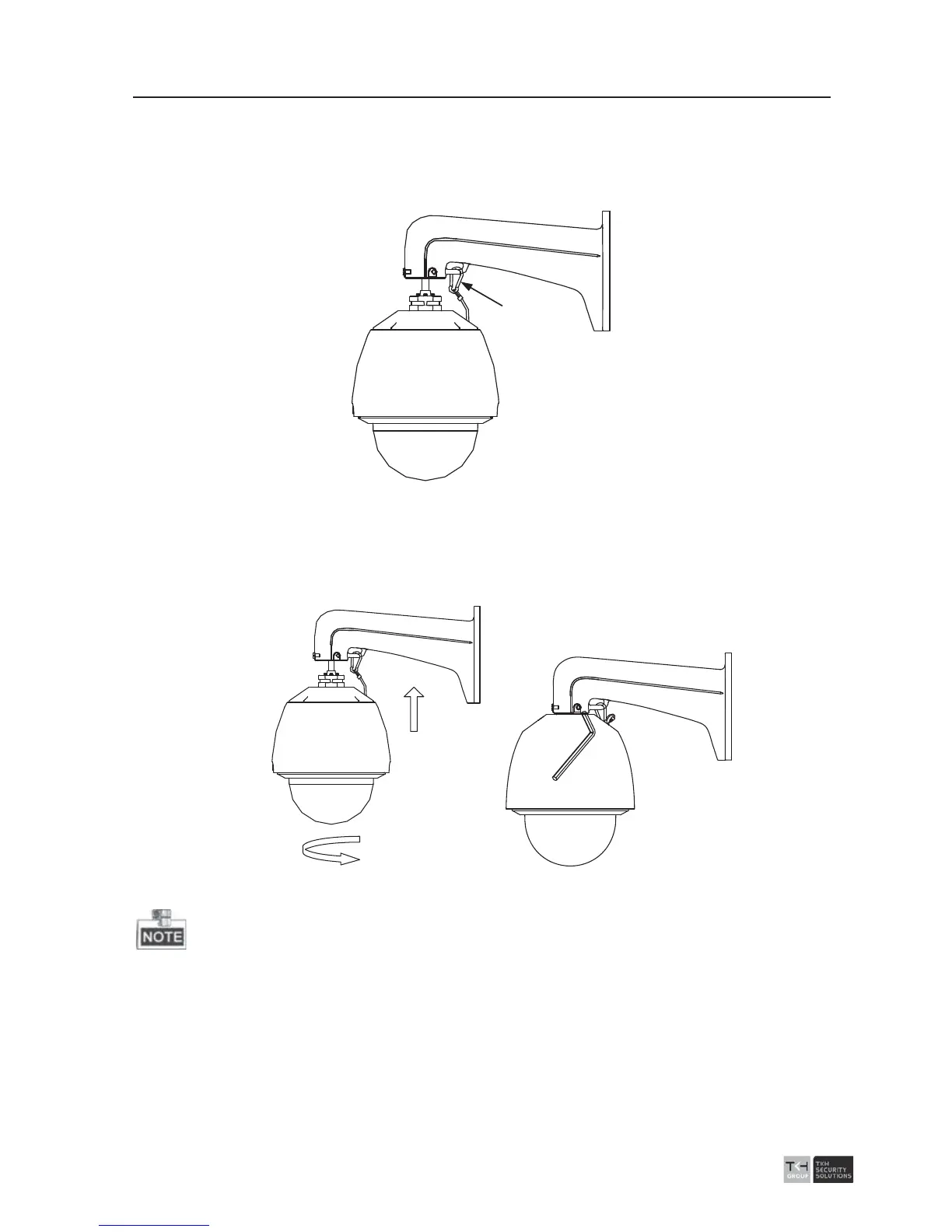

Figure 2-8 Hang the Safety Rope
4). Loosen the two lock screws on the bracket.
5). Install the speed dome to the bracket. Rotate the speed dome clockwise tightly.
6). Secure the two lock screws with the Allen wrench.
Lock Screw
Figure 2-9 Mount the Dome
z The bracket in Figure 2-7 is the recommended bracket for this series of speed dome,
and a pendent adapter is required if any other bracket is selected. See Figure 2-10.
