Pendant Adapter
Lock Screw

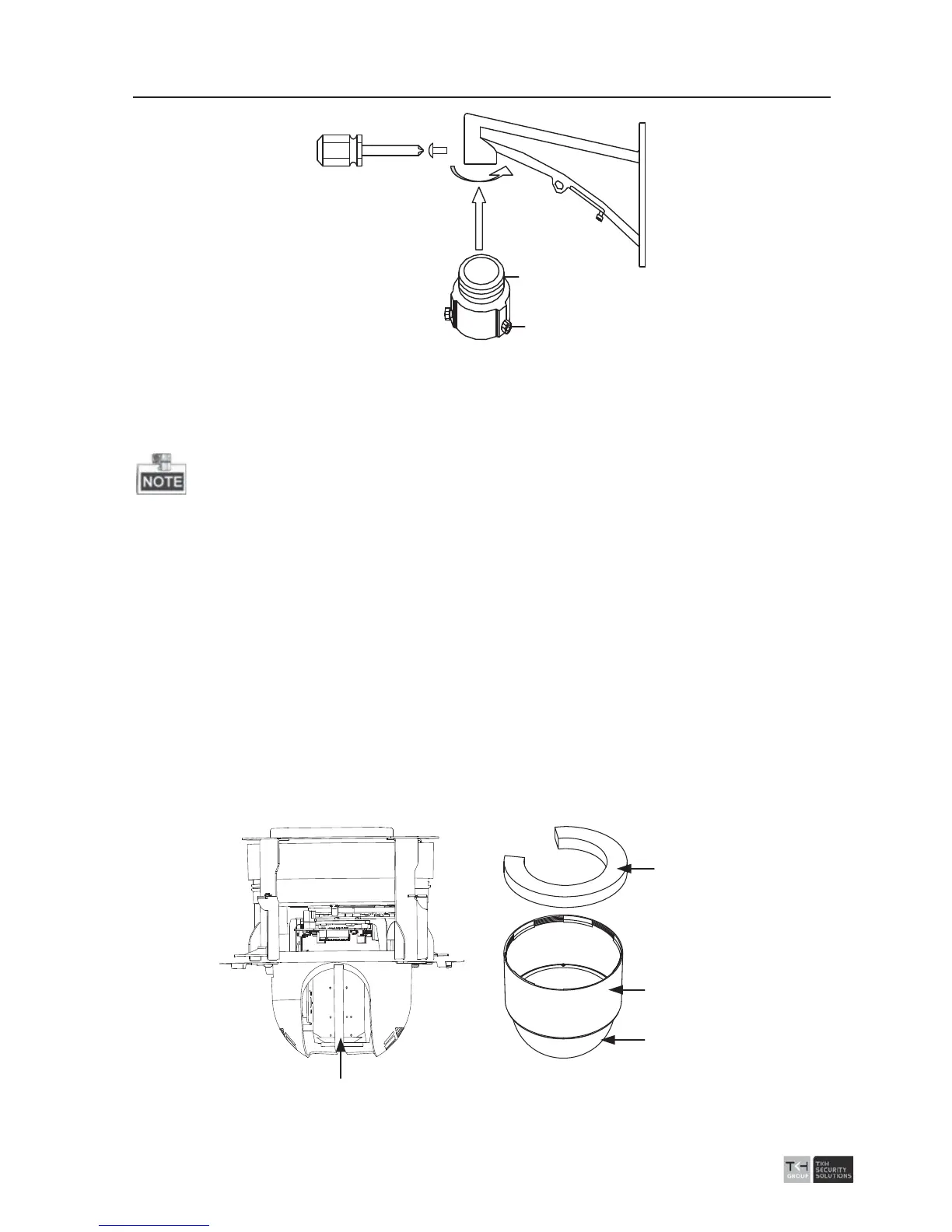

Figure 2-31 Pendent Adapter
2.2 In-ceiling Mounting
The in-c
eiling mounting is only applicable for the 5-inch indoor speed domes.
Before you start:
The in-ceiling mounting is applicable to the indoor ceiling construction. The followings
are the mandatory precondition for mounting:
z The height of the space above the ceiling must be more than 250mm
.
z The thickness of the ceiling must ranges from 5 to 40mm.
z The ceiling must be strong enough to withstand more than 4 times the weight of the
dome and its accessories.
Steps:
1. Rotate the lower dome counterclockwise to separate it from the back box as shown in
Figure 2-32.
2. Remove the protective lens cover, foam and sticker from the dome drive.
3. Attach lower dome to the back box, and rotate clockwise to secure it.
Protective Sticker
Protective
Foam
Back Box
Lower Dome
Figure 2-32 Remove the Protective Accessory
