TMQ AP9 - RFU and Compass Wiring

TMQ AP9 Autopilot (V6.0 - 965) Page 26 of 51 31/1/2017

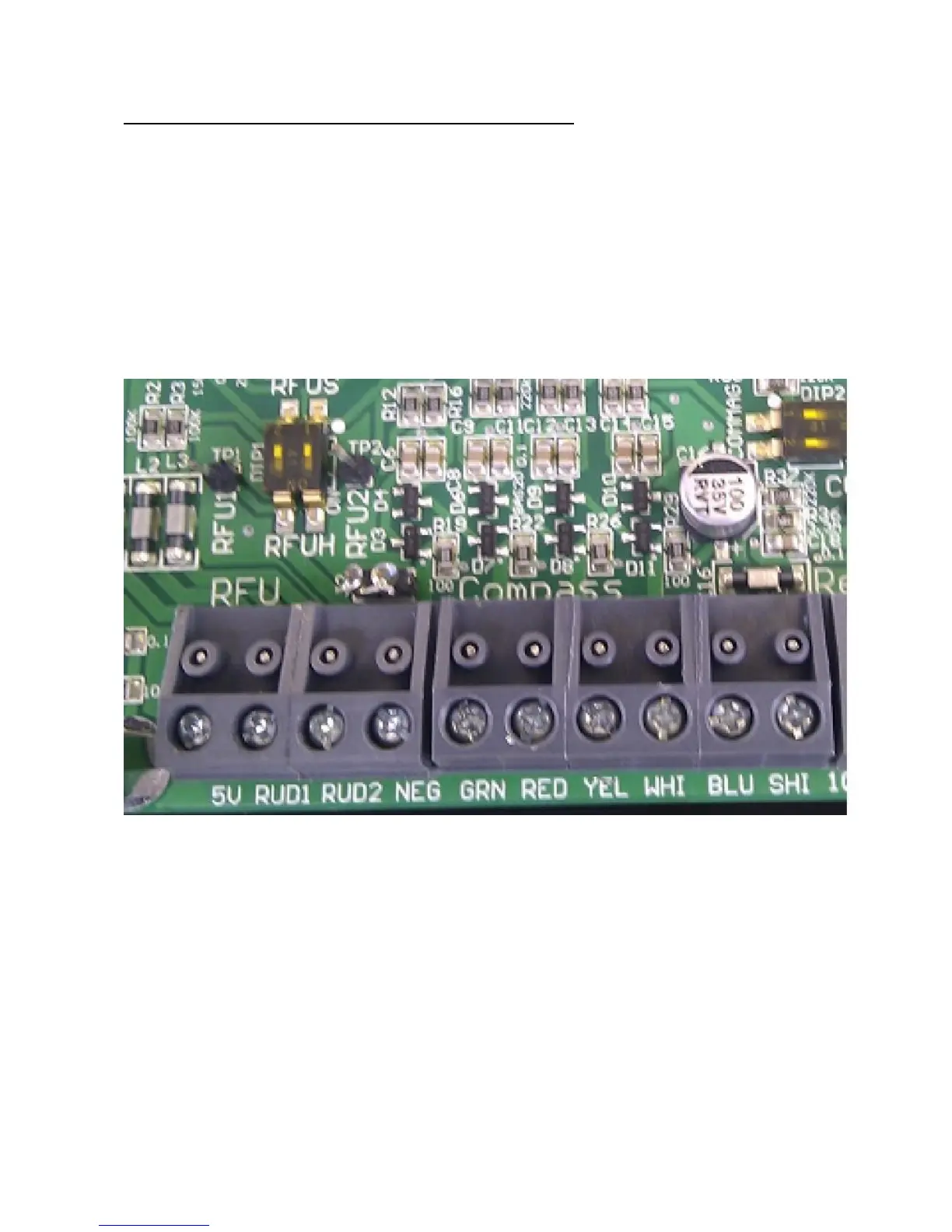

Wiring to to AP9 for RFU andCompass.
RFU wiring
5V Brown 5volts
RUD1 Green Rudder Signal
NEG Blue Negative
(DO NOT CONNECT TO RUD2)
Compass Wiring
Wire compass to correct colour.
GRN Green Signal Return
RED Red Signal return
YEL Yellow Signal Return
WHI White Signal Return
BLU Blue Square Wave drive to compass 1500Hz
