TMQ AP9 - E-Compass Mounting; Mounting Procedure

TMQ AP9 Autopilot (V6.0 - 965) Page 23 of 51 31/1/2017

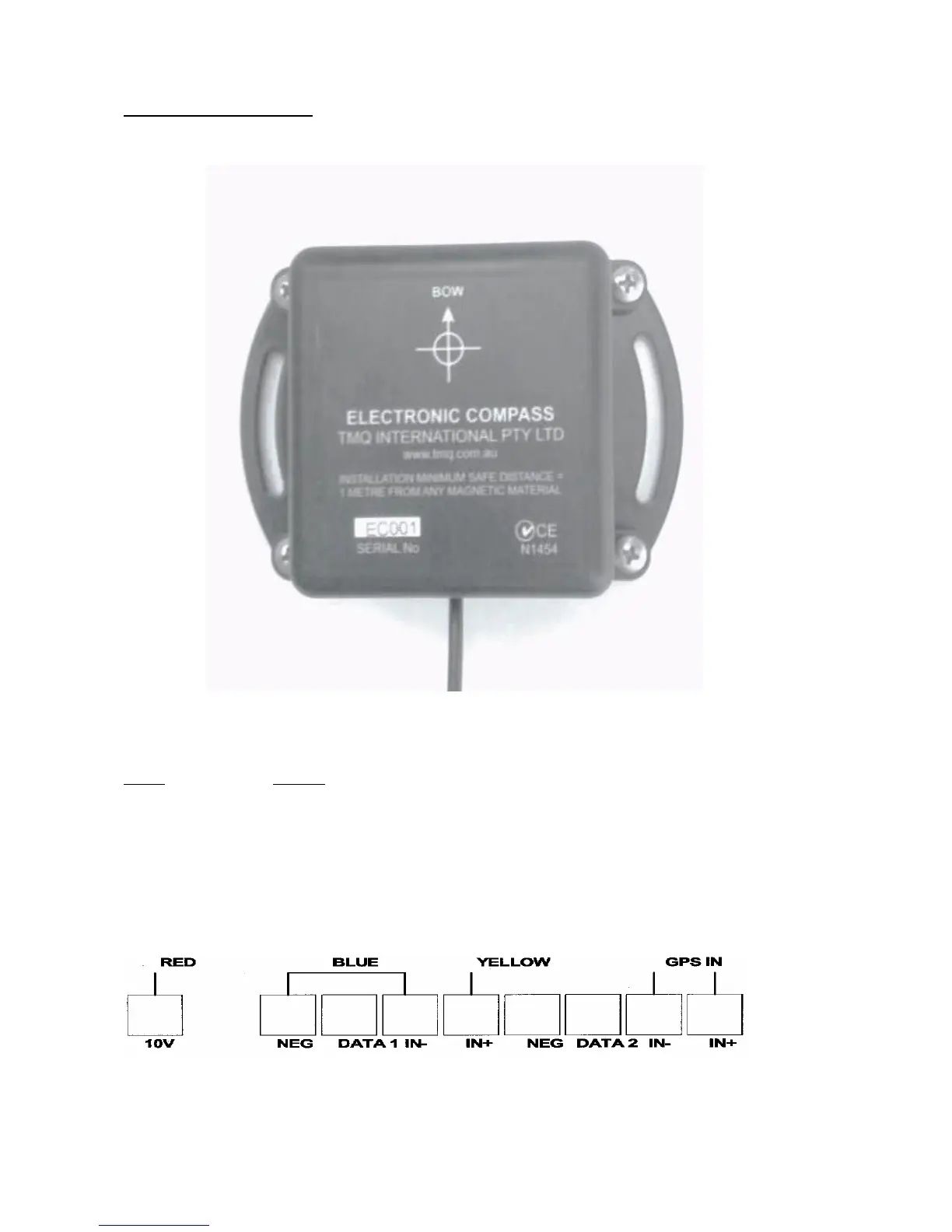

E-Compass Mounting
Vessel Bow
Connections (Note: Page 31 for AP9) – Wire Colour Code
Wire Signal
Red 10 Volts
Black Shield Negative
Yellow IN +
Blue IN - and Negative
Green Data 1
Connections in AP9
