TMQ AP9 Autopilot (V6.0 - 965) Page 37 of 51 31/1/2017

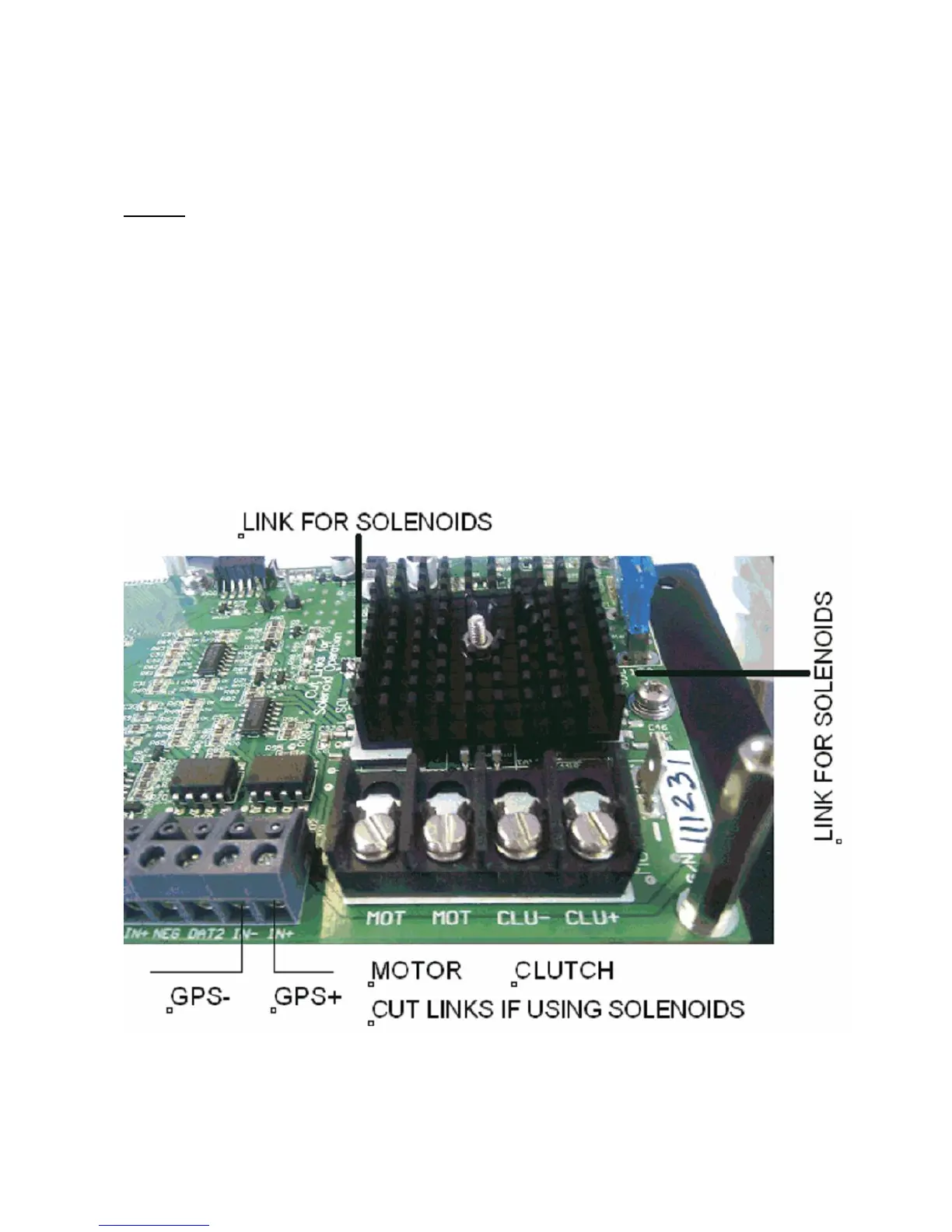

As preventative measure to ensure voltage spikes do not interfere with the autopilot
or other equipment, spike suppression diodes should be fitted on solenoid valves. See
example drawing on page 46.
Wiring
Refer to manufacturer’s connection diagrams.
Keep connecting cables as short as possible and of sufficient size to avoid voltage drop
along the cable length.
Ensure all connections are tight. Recheck periodically.
ALL CONSTANT RUNNING PUMPS SHOULD BE CONNECTED TO THE
SUPPLY VIA AN ISOLATING SWITCH AND SUITABLE PROTECTION
CIRCUIT – FUSE OR CIRCUIT BREAKER
