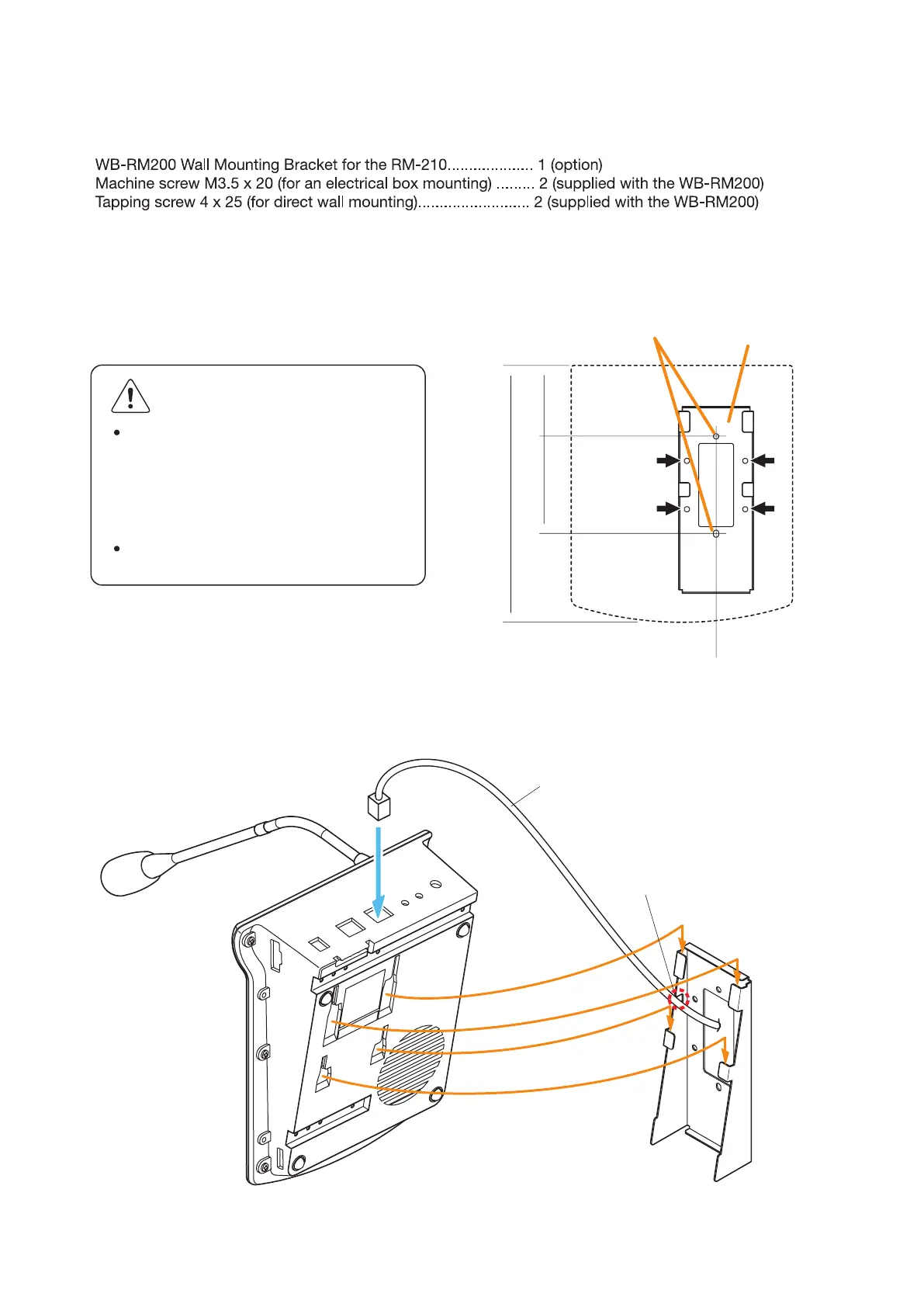

6.2.1. Installing RM-200M on the Wall
To mount the RM-200M on the wall, the following parts are required.
Step 1. Install the optional WB-RM200 bracket on the
wall. Pull out the link cable through the bracket’s
notch. As 2 types of supplied screws are
available for electrical box mounting and direct
wall mounting, use appropriate ones for
mounting method.
Step 2. Hook the RM-200M bottom onto the
WB-RM200.
Step 3. Connect the link cable to the RM-200M
link connector.
[Positional dimensions of the WB-RM200]
Install the RM-200M only in a location
that can structurally support the weight
of the unit and the WB-RM200 bracket.
Doing otherwise may result in the unit
falling down and causing personal injury
and/or property damage.
Use 2 or more screws to fix the WB-
RM200 to the wall.
WARNING
60.883.5
220.3
Unit: mm
RM-200M
WB-RM200
(option)
Mounting holes for
an electrical box
Use 4 mounting holes
indicated by arrows to
secure the WB-RM200
to the wall
WB-RM200 Wall
Mounting Bracket
(option)
RM-200M
LINK
Link cable
Notch
1
2
3
6.2. Installing the RM-200M
