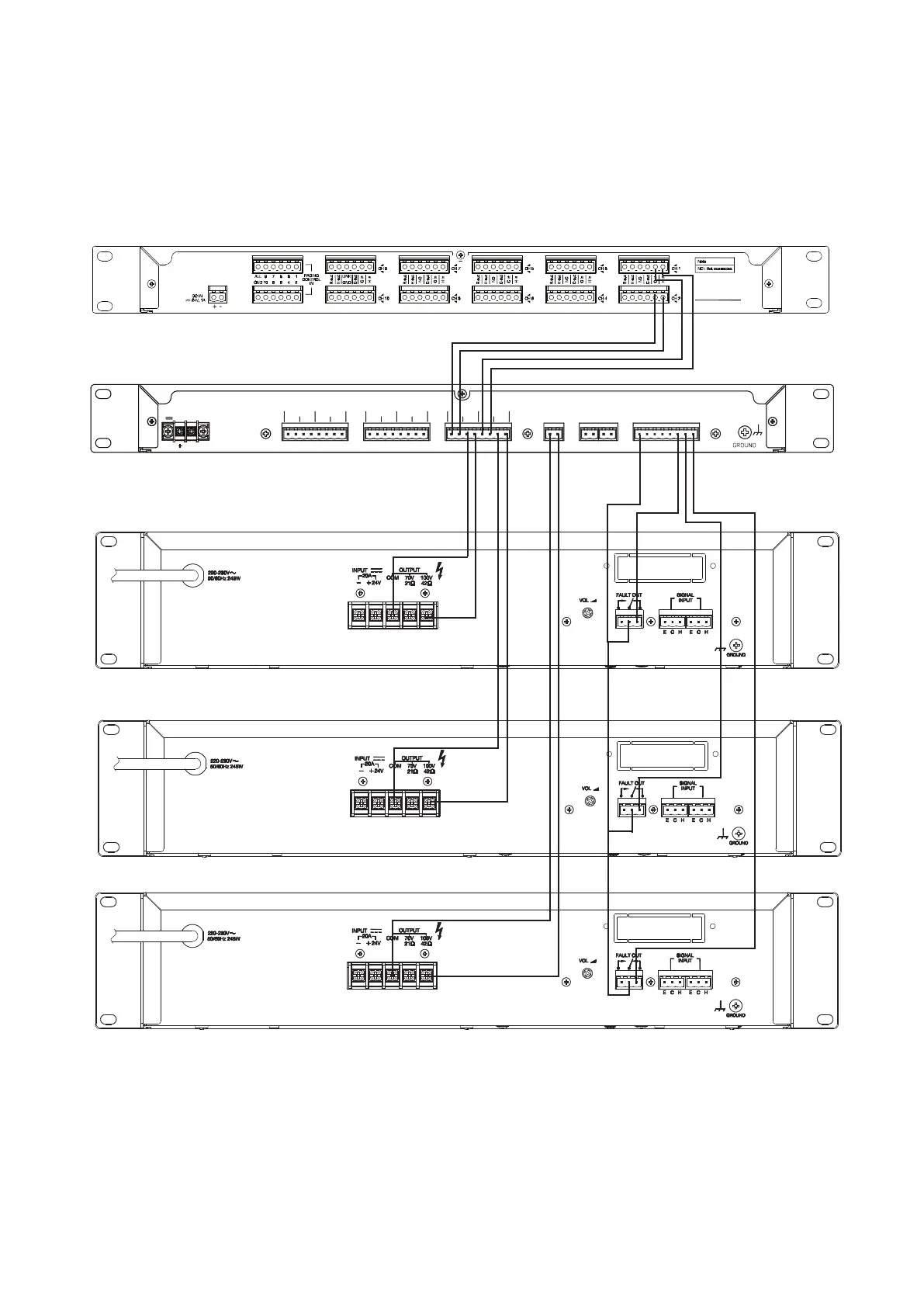

7.11. Amplifier Changeover Connection
FV-224PA-AS
SS-1010R
FV-224PA-AS
FV-224PA-AS
FV-200CA-AS
Connect FAULT OUT from each power amplifier into FV-200CA-AS FAULT IN. Connect duty power amplifier
output into FV-200CA-AS duty amp IN, connect standby power amplifier output into FV-200CA-AS STANDBY
INPUT. Connect FV-200CA-AS duty amplifier output into speaker selector or directly into speaker.
FAULT IN
CA LINK
OUTPUT
INPUT
INPUT
STANDBY
C H A B A B
CT 6 5 4 3 2 1 SBC HC HC HC H
C HC HC HC HC HC HC HC H
OUT INOUT INOUT INOUT IN
OUT INOUT IN
AMP 1AMP 2AMP 3AMP 4AMP 5AMP 6
+
-
24V 240mA
DC IN
DUTY AMPLIFIER NO 2
DUTY AMPLIFIER NO 1
STANDBY AMPLIFIER
