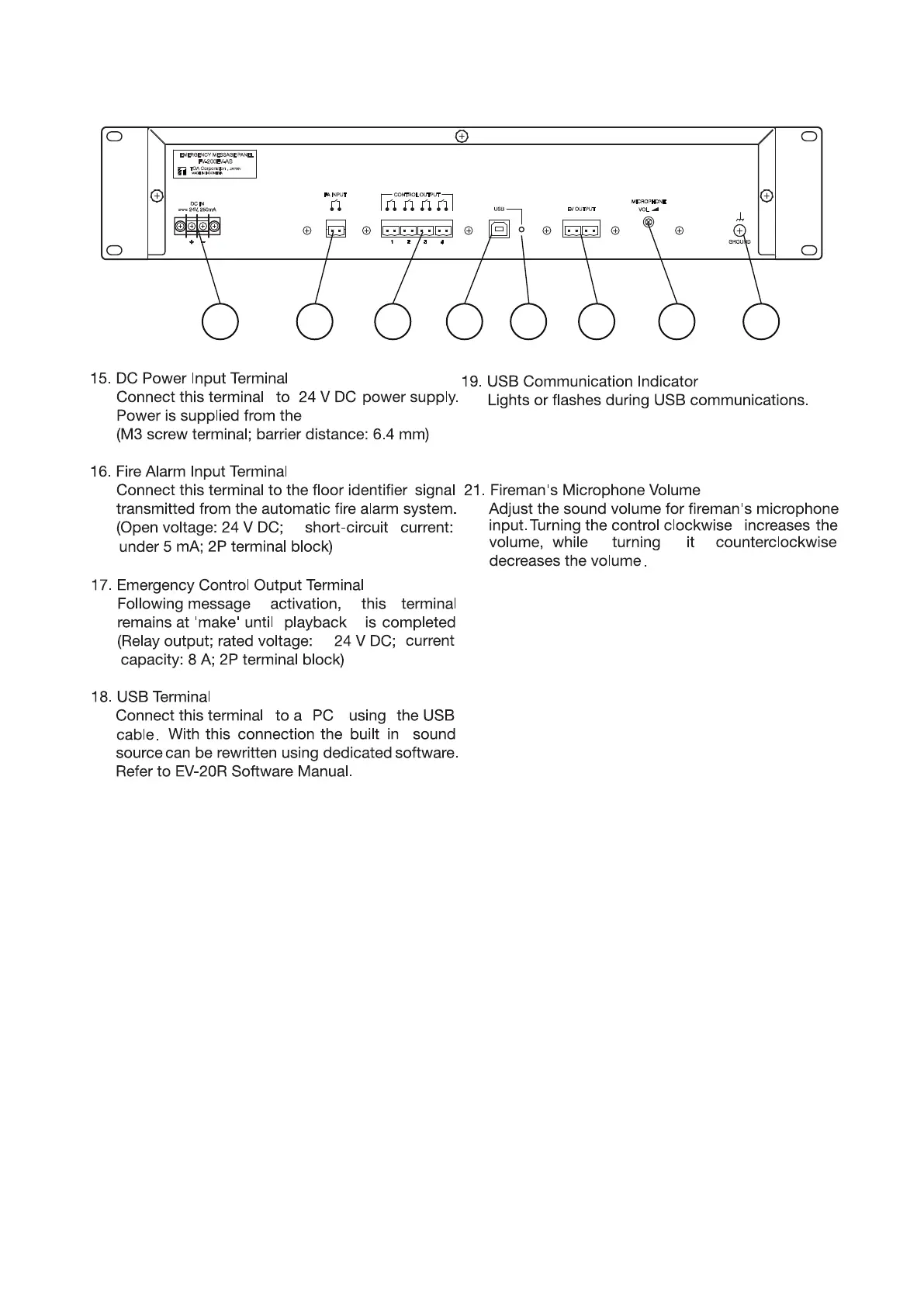

Toa FV-200RF-AS - FV-200 EV-AS Rear Terminals

9
[Rear]
24V, 250mA
FA INPUT CONTROL OUTPUT
USB EV OUTPUT
MICROPHONE
GROUND
VOL
DC IN
FV-200EV-AS
EMERGENCY MESSAGE PANEL
TOA Corporation , JAPAN
MADE IN INDONESIA
15 16 17 18 19 20 21 22
20. EV Output Terminal
Connect the FV-200PP-AS to this terminal.
22. Functional Earth Terminal
Connect this terminal to the functional earth
terminal of external equipment if excessive noise
is generated when the external equipment is
connected to the FV-200EV-AS. This could reduce
noise.
Note: This terminal is not for protective earth.
E
H
+
-
FV-200PS-AS
.
