6. INSTALLATION PRECAUTIONS

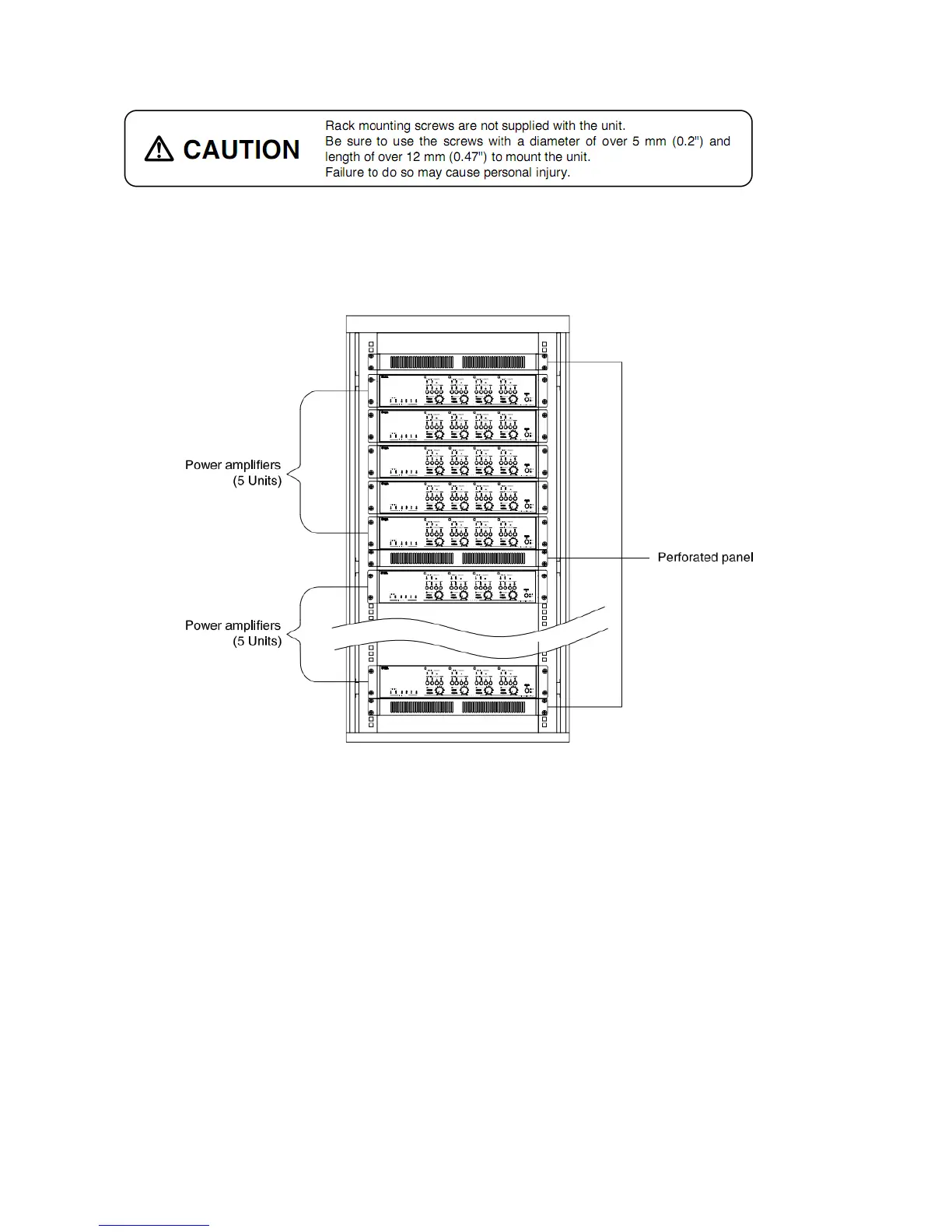

• When mounting the unit in an equipment rack, the inside of the rack must be sufficiently ventilated.
To achieve sufficient ventilation, remove all panels on the rear of the rack.
• When mounting the unit in the rack, also mount a Perforated Panel larger than 1U in size
(1) at the top and the bottom of the rack, and
(2) above and below every 5 units.
* 1U size = 44.5 mm or 1.75" (reference size)
