INSTALLATION 25
5
1. Center of boat
2. Boat transom
ENOM01201-0

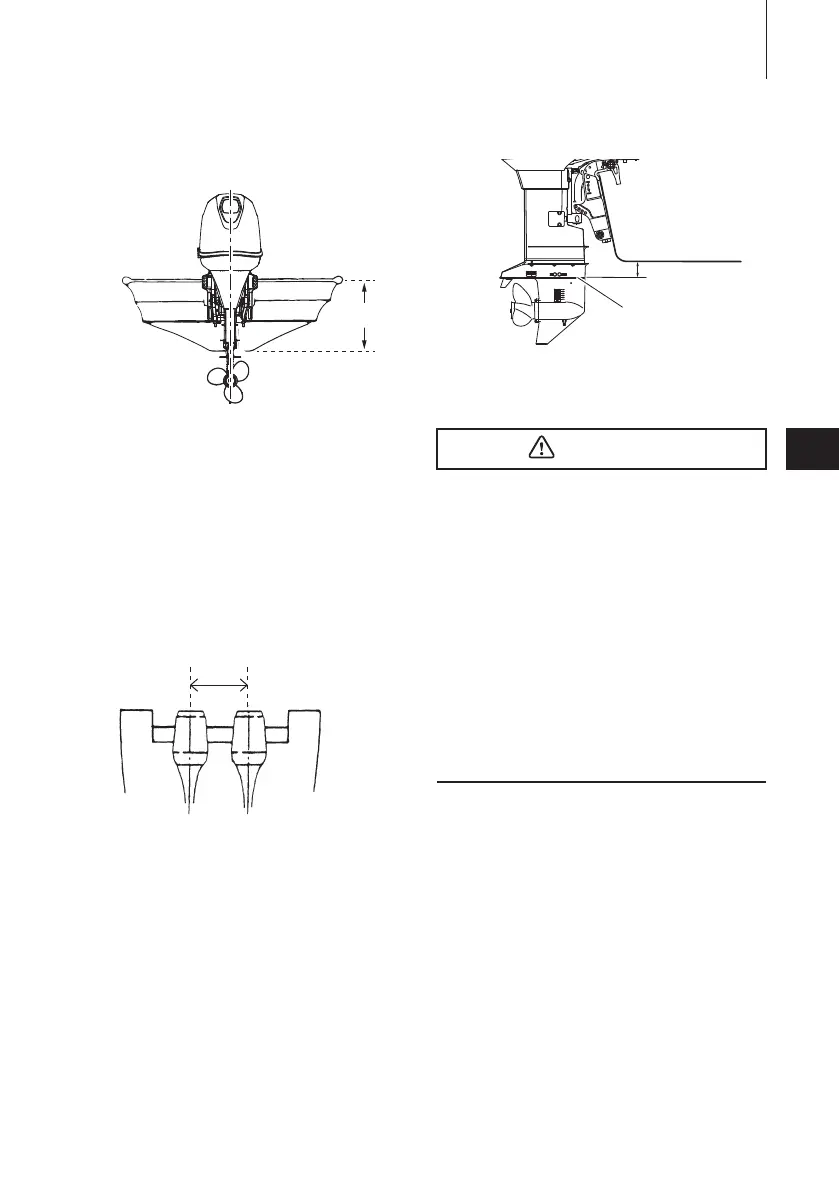

Twin-engine Installation
When installing two outboard engines, be
sure to keep an interval of approximately
470-660 mm (18.5-26 in) between the
two.
1. Approx 580 mm (22.8 in)
ENOM00026-0
Transom matching
Be sure that the anti ventilation plate of
the outboard motor is 10-30mm (0.4-
1.2in.) below the bottom of hull.
If the above condition cannot be met due
to the shape of the bottom of your boat,
please consult your authorized dealer.
1. Bottom of hull
2. Anti ventilation plate
ENOW00007-1
z Before running test, check the boat with
maximum loading capacity. Overloading or
incorrect weight distribution of the
weight may result in boat to lose control,
even swamping or capsizing. Make sure
that there is enough distance between
bottom cowl and water surface to prevent
water from entering the engine.
z Make sure to mount the engine in correct
position. If outboard motor is mounted
incorrectly, water may intrude the engine
from openings of the bottom cowl while
cruising. Exposing the engine to such con-
dition may result in severe damage to the
engine.
ENOM00830-E
Mounting the outboard motor
Manual tilt type
1. Set the outboard motor to appropri-
ate position.
2. Tighten the clamp screws by turning
their handles.
3. Secure the clamp brackets to the
transom board using bolts, flat wash-
ers and nylon locking nuts.
ENOF01823-0
1
CAUTION
1
2
10−30 mm
(0.4−1.2 in)
ENOF01344-0
