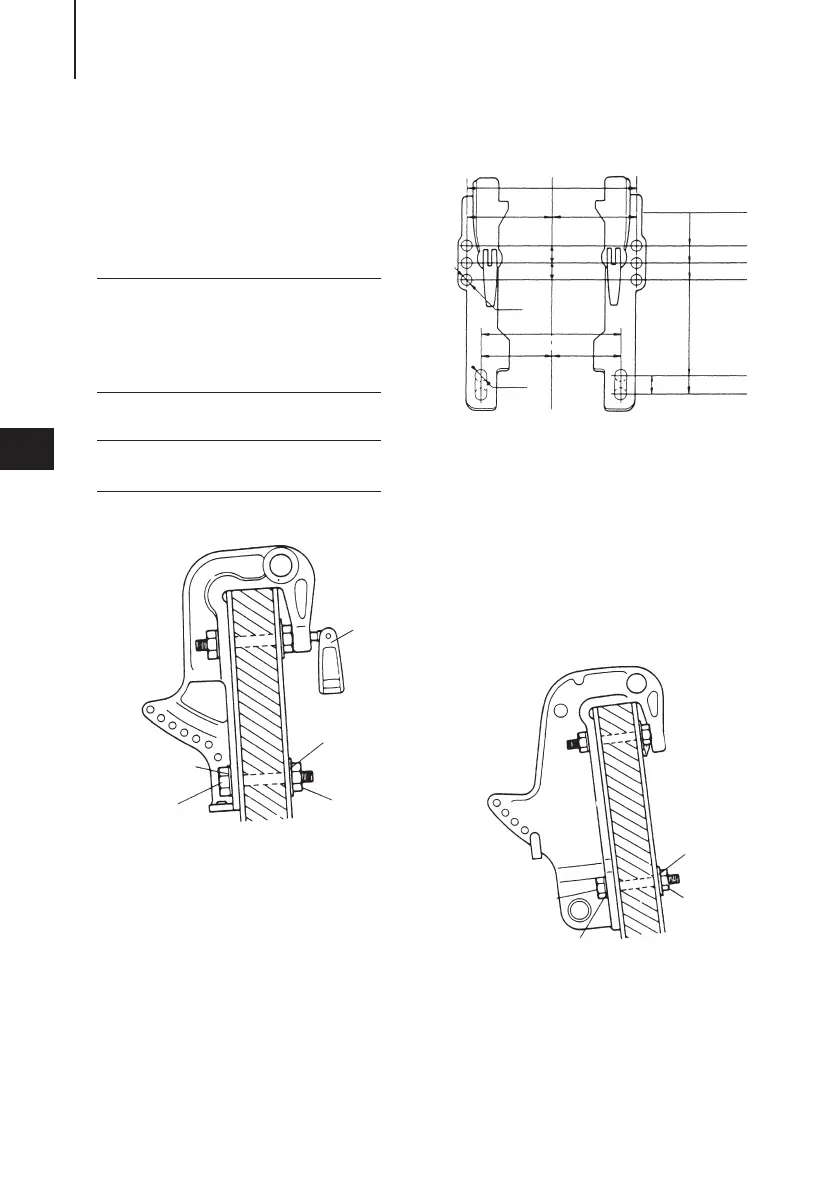

TOHATSU M40D2 - Mounting the Outboard Motor (Power Trim & Tilt Type)

INSTALLATION26
5
4. Secure the outboard motor to the
boat with a rope to prevent acciden-
tal loss of the outboard motor over-
board.
ENON00930-1
Note
z Do not use tools to tighten clamp
screws. Over tightening could result in
damage to the clamp screws and clamp
brackets.
z Do not reuse nylon locking nut.
ENON00002-0
Note
A rope is not included in the standard
accessories.
1. Clamp Screw
2. Washer (small diameter)
3. Washer (large diameter)
4. Bolt (12 mm × length 105 mm)
5. Nylon locking nut
1. Top of transom
Power trim and tilt type
1. Set the outboard motor to appropri-
ate position.
2. Secure the clamp brackets to the
transom board using bolts, flat wash-
ers and nylon locking nuts.
1. Bolt (12 mm × length 105 mm)
2. Washer (large diameter)
3. Washer (small diameter)
4. Nylon locking nut
5
4
3
2
1
ENOF00610-0
ø13
ø13
234 (9.21”)
39 (1.54”)
222 (8.74”)
248 (9.76”)26 (1.02”)
204 (8.03”)
25 (0.98”)
25 (0.98”)
64 (2.52”)
89 (3.50”)
117 (4.61”)
102 (4.02”)102 (4.02”)
117 (4.61”)
1
ENOF00611-0
4
1
2
3
ENOF00612-1
